Weed Eater 2000T W/E Attachment, Weed'n Till 2000T

Model: 2000T W/E Attachment, Weed'n Till 2000T

Save
 Part Not Listed?Part Not Listed?
product name

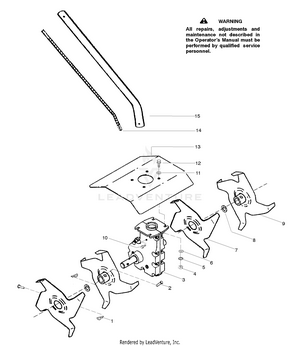

Cultivator Attachment Assembly

...
...
1
Retainer-Hairpin PLN-530016363
...
2
Pin-Clevis PLN-530016362
...
3
Assy-Gearbox PLN-530095985
...
4
Locknut PLN-530015515
...
5
Washer-Lock PLN-530016375
...
6
Washer-Flat PLN-530015209
...
7
Tine-Right Outside/Left Inside PLN-530095987
...
8
Washer-Felt PLN-530016364
...
9
Tine-Left Outside/Right Inside PLN-530095986
...
10
Bolt-Hex PLN-530016374
...
11
Washer-Flat PLN-530015209
...
12
Bolt-Washer Head PLN-530016366
...
13
Kit-Guard PLN-525593001
...
14
Shaft-Flex PLN-530095960
...
15
Assy-Driveshaft PLN-530096001
...
xx
Manual Not Shown PLN-545133450
...
xx
Hanger-Attachment Not Shown PLN-530150031
...
xx
Decal-Shield Not Shown PLN-530055450
...
xx
Decal-Shaft Warning Not Shown PLN-530056126
...
...
...
