Weed Eater 1900 Gas Trimmer

Model: 1900 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

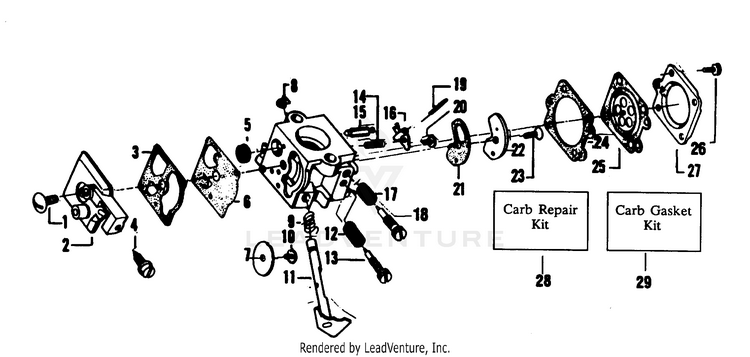

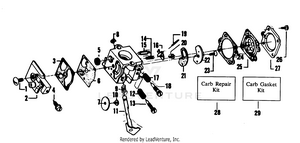

CARBURETOR

...
...
1
Pump Cover Screw PLN-530035017
...
2
Pump Cover Ass'y. (Inc.4) PLN-530035191
...
3
GASKET PLN-504130906
...
4
Idle Adjustment Screw PLN-530035156
...
5
Inlet Screen Included in Carburetor Kwik Repair Kit. PLN-530035178
...
6
PUMP DIAPHRAGM PLN-504130807
...
7
Throttle Valve PLN-530035133
...
8
Throttle Shaft Clip PLN-530035007
...
9
Throttle Return Spring PLN-530035138
...
10
Throttle Valve Screw PLN-530035015
...
11
Shaft Ass'y. - Throttle PLN-530035132
...
12
Idle Needle Spring PLN-530035023
...
13
Idle Needle PLN-530035141
...
14
WT-141 - T1 PLN-530035188
...
15
Needle PLN-503117001
...
16
Metering Lever PLN-505520127
...
17
Hi Speed Needle Spring PLN-530035036
...
18
H-NEEDLE PLN-501782201
...
19
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
20
Metering Lever Pin Screw PLN-530035016
...
21
GASKET PLN-501781301
...
22
Circuit Plate PLN-530035042
...
23
Circuit Plate Screw Included in Carburetor Kwik Repair Kit. PLN-530035137
...
24
Metering Diaphragm Gasket PLN-530035151
...
25
DIAPHRAGM PLN-503896701
...
26
Metering Cover & Throttle Shaft Clip Ass'y. Screw PLN-530035153
...
27
Metering Diaphragm Cover PLN-530035149
...
28
Carb Kwik Repair Kit PLN-530035185
...
29
Gasket Diaphragm Kit PLN-530069844

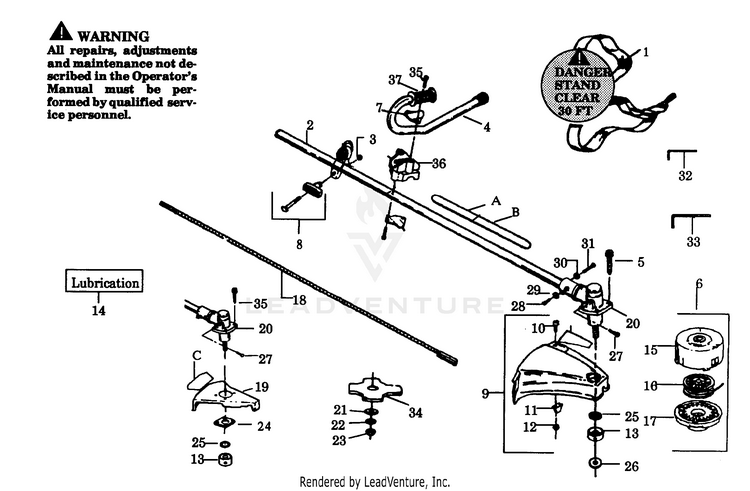

CUTTING HEAD & DRIVE SHAFT

...
...
1
Shoulder Strap PLN-530094417
...
2
Drive Shaft Housing PLN-530094626
...
3
Nut PLN-530015197
...
4
Handlebar PLN-530010723
...
5
Screw PLN-530016107
...
6
Cutting Head Ass'y. (Inc.15,16,17) PLN-952701608
...
7
Handlebar Bracket PLN-530094572
...
8
HANDLE KIT PLN-530069347
...
9
Shield Kit Ass'y. (Inc.10,11,12) PLN-530069256
...
10
Screw PLN-530015037
...
11
Line Limiter PLN-530094570
...
12
Nut PLN-530403094
...
13
Dust Cup PLN-530094639
...
14
LUBE, FLEX SHAFT NLA PLN-952708514
...
15
Accy--Cutting Head PLN-952711550
...
16
Spool w/Line PLN-952701589
...
17
Cover PLN-530094494
...
18
Drive Shaft PLN-530094585
...
19
SHIELD PLN-530094633
...
20
GEAR BOX REPLACEMENT KIT PLN-530071781
...
21
Washer PLN-530015792
...
22
Washer--Belleville PLN-530016240
...
23
Nut 3/8 PLN-530093748
...
24
Shield Retention Plate PLN-530027615
...
25
Seal PLN-530094640
...
26
Grass Washer PLN-530094571
...
27
Screw PLN-530094616
...
28
Screw PLN-530094612
...
29
Lockwasher PLN-530015328
...
30
Lockwasher PLN-530001677
...
31
Screw PLN-530001711
...
32
Hex Wrench (5/32) PLN-530031159
...
33
Hex Wrench (3/16) PLN-530031098
...
34
Weed Blade PLN-952701611
...
35
Screw PLN-530015791
...
36
Handlebar Clamp PLN-530012207
...
37
Handlebar Grip PLN-530092086
...
A
Safety Label (Upper) PLN-530027432
...
B
Safety Label (Lower) PLN-530027433
...
C
Blade Direction Decal (Not a serviceable part) PLN-530027749

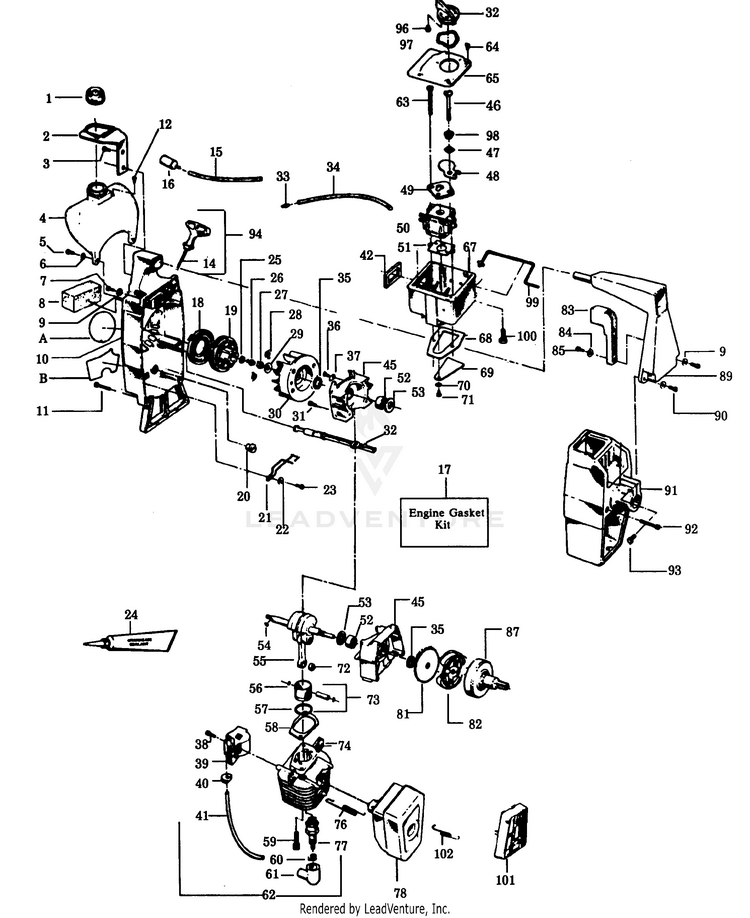

POWER UNIT

...
...
1
Assy-Fuel Cap (Incl. "O" Ring) PLN-530014347
...
2
Fuel Tank Bracket PLN-530025377
...
3
Screw PLN-530016107
...
4
Fuel Tank Ass'y. (Inc.1, 12, 15 & 16) PLN-530010887
...
5
Screw PLN-530015509
...
6
Washer PLN-530015123
...
7
Screw PLN-530015168
...
8
Air Filter PLN-530024371
...
9
Washer PLN-530015274
...
10
Fan Housing PLN-530010891
...
11
Screw PLN-530015305
...
14
Rope Kit PLN-530069232
...
15
Line Kit PLN-530069247
...
16
Assy-Fuel Pickup PLN-530095646
...
17
Engine Gasket Kit PLN-530069219
...
18
KIT STARTER SPRING PLN-545008009
...
19
Starter Pulley PLN-530026048
...
20
Kill Switch Button PLN-530026679
...
21
Kill Switch Spring PLN-530026559
...
22
Washer PLN-530015382
...
23
Screw PLN-530015407
...
24
Crankcase Sealant PLN-530030054
...
25
Washer PLN-530015123
...
26
Screw PLN-530015479
...
27
Flywheel Nut PLN-530626605
...
28
Spring-Starter Dog PLN-530023817
...
29
Washer PLN-530015127
...
30
Flywheel Ass'y. (Inc.28) PLN-530039114
...
31
Screw PLN-530015168
...
32
Choke Knob PLN-530027101
...
33
Fuel Line Fitting PLN-530026981
...
34
Carburetor Fuel Line PLN-530021073
...
35
Crankshaft Seal Included in Engine Gasket Kit. PLN-530019059
...
38
Screw PLN-530015816
...
39
Ignition Module Kit PLN-530069181
...
40
Plug Wire Grommet PLN-530024435
...
41
High Tension Lead Wire PLN-530039082
...
42
Carburetor Case Seal Included in Engine Gasket Kit. PLN-530019105
...
45
Crankcase Ass'y (Inc.35,52 and Qty. 1 of #31) PLN-530010757
...
46
Carburetor Screw PLN-530015630
...
47
Wave Washer PLN-530015254
...
48
Choke Shutter PLN-530026772
...
49
Guide Plate PLN-530026797
...
50
Carburetor (WA-149) PLN-530035183
...
51
Carburetor Gasket Included in Engine Gasket Kit. PLN-530019157
...
52
Crankshaft Bearing PLN-530032029
...
53
Crankshaft Thrust Washer PLN-530015351
...
54
Flywheel Key PLN-530015126
...
55
Crankshaft & Rod Ass'y. PLN-530010844
...
56
Wrist Pin Retainer PLN-530015162
...
57
Piston Ring PLN-530026681
...
58
Engine Gasket Kit Included in Engine Gasket Kit. PLN-530069219
...
59
Screw PLN-530015239
...
60
Spark Plug Boot PLN-507475326
...
61
Spark Plug Boot PLN-530003934
...
62
High Tension Lead Ass'y. (Inc.41,60 & 61) PLN-530039103
...
63
Carburetor Screw PLN-530015674
...
64
Screw PLN-530015235
...
65
Carburetor Case Cover PLN-530027100
...
67
Carburetor Case Ass'y. PLN-530027189
...
68
Carburetor Case Crankcase Gasket Included in Engine Gasket Kit. PLN-530019108
...
69
Reed Valve PLN-530024438
...
70
Reed Valve Washer PLN-530023367
...
71
Screw PLN-530015241
...
72
Wrist Pin Bearing PLN-530032092
...
73
Piston Ass'y. (Inc.56,57 & Pin) PLN-530069241
...
74
Cylinder PLN-530012191
...
76
Muffler Spring PLN-530036409
...
77
Spark Plug (CJ-14) PLN-530030077
...
78
Muffler Ass'y. PLN-530069243
...
81
Clutch Washer Kit PLN-530069196
...
82
Clutch Ass'y. Kit (Inc. Clutch Washer) PLN-530069194
...
83
Throttle Trigger PLN-530025342
...
84
Throttle Washer PLN-530015382
...
85
Screw PLN-530015407
...
86
Screw PLN-530015609
...
87
Drum & Coupling Ass'y. PLN-530010797
...
89
Handle PLN-530025704
...
90
Screw PLN-530015163
...
91
Shroud PLN-530011778
...
92
Screw PLN-530015376
...
93
Bolt PLN-530093802
...
94
Rope & Handle Starter Ass'y. PLN-530026792
...
96
Screw PLN-530015740
...
97
Washer PLN-530015741
...
98
Spacer PLN-530015673
...
99
Throttle Wire PLN-530027190
...
100
Screw PLN-530015723
...
101
Muffler Guard PLN-530024855
...
102
Muffler Spring PLN-530024932
...
A
Starting Instructions Decal PLN-530027312
...
B
Choke/Off Decal PLN-530027638
...
xx
Shroud Decal (Right) (Not a serviceable part) Not Shown. PLN-530027753
...
xx
Shroud Decal (Left) (Not a serviceable part) Not Shown. PLN-530027754
...
...
...
