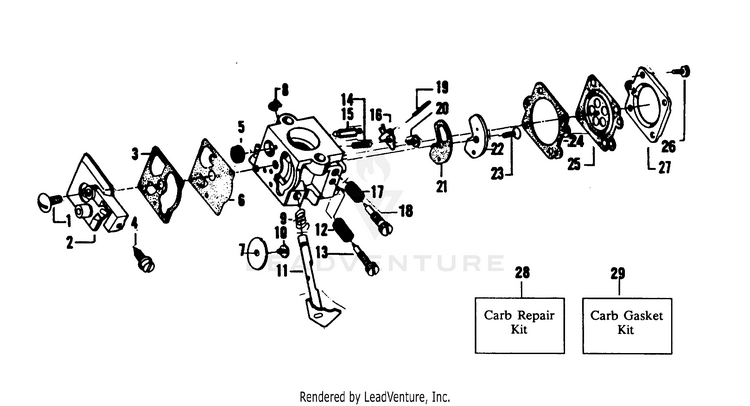

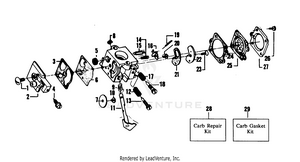

CARBURETOR BREAKDOWN

...
...
1
Pump Cover Screw PLN-530035017
...
2
Pump Cover Ass'y. (Inc.4) PLN-530035191
...
3
GASKET PLN-504130906
...
4
Idle Adjustment Screw PLN-530035156
...
5
Inlet Screen Included in Carburetor Kwik Repair Kit. PLN-530035178
...
6
PUMP DIAPHRAGM PLN-504130807
...
7
Throttle Valve PLN-530035133
...
8
Throttle Shaft Clip PLN-530035007
...
9
Throttle Return Spring PLN-530035138
...
10
Throttle Valve Screw PLN-530035015
...
11
Shaft Ass'y. - Throttle PLN-530035132
...
12
Idle Needle Spring PLN-530035023
...
13
Idle Needle PLN-530035141
...
14
WT-141 - T1 PLN-530035188
...
15
Needle PLN-503117001
...
16
Metering Lever PLN-505520127
...
17
Hi Speed Needle Spring PLN-530035036
...
18
H-NEEDLE PLN-501782201
...
19
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125
...
20
Metering Lever Pin Screw PLN-530035016
...
21
GASKET PLN-501781301
...
22
Circuit Plate PLN-530035042
...
23
Circuit Plate Screw Included in Carburetor Kwik Repair Kit. PLN-530035137
...
24
Metering Diaphragm Gasket PLN-530035151
...
25
DIAPHRAGM PLN-503896701
...
26
Metering Cover & Throttle Shaft Clip Ass'y. Screw PLN-530035153
...
27
Metering Diaphragm Cover PLN-530035149
...
28
Carb Kwik Repair Kit PLN-530035185
...
29
Gasket Diaphragm Kit PLN-530069844

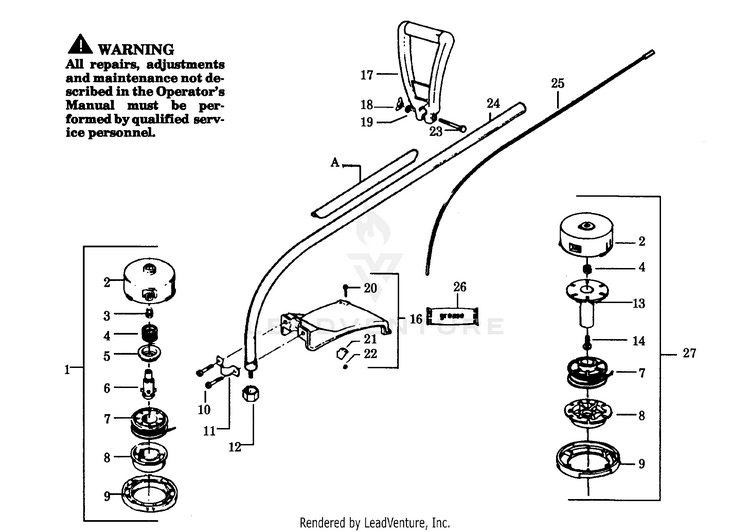

CUTTING HEAD & DRIVE SHAFT

...
...
1
Cutting Head Ass'y. (Inc.2-9) - See Service Ref. 5. PLN-530093894
...
2
Hub PLN-530071295
...
2
Model 1600T PLN-530094562
...
3
Line Saver (Model 1600 G.TRIMMER Only) PLN-530093898
...
4
Spring PLN-530340007
...
4
Spring PLN-530094956
...
5
Cap Spring PLN-530328929
...
6
Drive Gear-Model 1600 G.TRIMMER Only PLN-530093897
...
7
Model 1600 G.TRIMMER PLN-952701523
...
7
Model 1600T PLN-952701606
...
8
Tap Button PLN-530401183
...
8
Model 1600T PLN-530094522
...
9
Model 1600 G.TRIMMER PLN-530092133
...
9
Model 1600T PLN-530094521
...
10
Screw PLN-530016107
...
11
Shield Bracket PLN-530093653
...
12
Dust Cup PLN-530093716
...
13
Spool Post PLN-530094524
...
14
Screw #10-24x5/8 PLN-530015542
...
16
Model 1600T PLN-530069249
...
17
Assist Handle PLN-530010722
...
18
Wing Nut PLN-530091373
...
19
Washer PLN-530092062
...
20
Screw #10-24xl PLN-530015337
...
21
Model 1600 G.TRIMMER PLN-530093853
...
21
Model 1600T PLN-530094570
...
22
Nut PLN-530403094
...
23
Screw PLN-530015737
...
24
Model 1600 G.TRIMMER-T1 PLN-530093934
...
24
DRIVESHAFT KIT 34" PLN-530071643
...
25
Model 1600 G.TRIMMER-T1 PLN-530093928
...
25
Model 1600 G.TRIMMER-T2,3 Model 1600T-T1 PLN-530093936
...
26
LUBE, FLEX SHAFT NLA PLN-952708514
...
27
Cutting Head Ass'y.(Inc.2,4,7,8,9,13,14) - See Service Ref. 5. PLN-952701604
...
A
Shaft Warning Decal PLN-530029159
...
xx
Model 1600 G.TRIMMER Not Shown. PLN-530066912
...
xx
Model 1600T Not Shown. PLN-530067066
...
xx
Model 1600 G.TRIMMER Carton (Not a serviceable part) Not Shown. PLN-530060772
...
xx
Model 1600T Not Shown. PLN-530067060

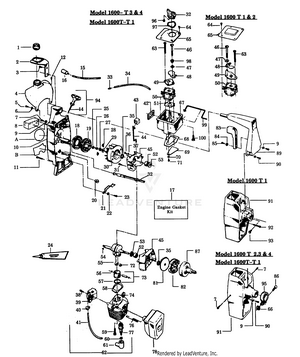

POWER UNIT

...
...
1
Assy-Fuel Cap (Incl. "O" Ring) PLN-530014347
...
2
Fuel Tank Bracket PLN-530025377
...
3
Screw PLN-530016107
...
4
Fuel Tank Ass'y. (Inc.1,12,15 & 16) PLN-530010887
...
5
Screw #10x1 PLN-530015509
...
6
Washer PLN-530015123
...
7
1600 G.TRIMMER-T1 PLN-530015168
...
7
1600 G.TRIMMER-T2,3 & 4; 1600T-T1 PLN-530015590
...
8
Air Filter PLN-530024371
...
9
Washer #10-1600 G.TRIMMER-T1 Only PLN-530015274
...
10
Fan Housing PLN-530010891
...
11
1600 G.TRIMMER-T1 PLN-530015305
...
11
1600 G.TRIMMER-T2,3, & 4; 1600T-T1 PLN-530015594
...
12
Check Valve - Duck Bill PLN-530026119
...
14
Rope Kit PLN-530069232
...
15
Fuel Line-1600 G.TRIMMER-T1 & 2 PLN-530021045
...
15
Line Kit - 1600 G.TRIMMER-T 3 & 4; 1600T-T1 PLN-530069247
...
16
1600 G.TRIMMER-T1 & 2 PLN-530091878
...
16
Assy-Fuel Pickup PLN-530095646
...
17
Engine Gasket Kit (*Indicates Contents) PLN-530069219
...
18
KIT STARTER SPRING PLN-545008009
...
19
Starter Pulley PLN-530026048
...
20
Kill Switch Button PLN-530026679
...
21
Kill Switch Spring PLN-530026559
...
22
Washer PLN-530015382
...
23
Screw #8x3/8 PLN-530015407
...
24
Crankcase Sealant - 3 oz. tube PLN-530030054
...
25
Washer #10 PLN-530015123
...
26
Screw #10-3/4 PLN-530015479
...
27
Flywheel Nut PLN-530626605
...
28
Spring-Starter Dog PLN-530023817
...
29
Washer PLN-530015127
...
30
Flywheel Ass'y. (Inc.28) PLN-530039114
...
31
Screw PLN-530015369
...
32
1600 G.TRIMMER-T1 & 2 PLN-530024303
...
32
1600 G.TRIMMER-T3 & 4; 1600T-T1 PLN-530027101
...
33
1600 G.TRIMMER-T1 & 2 PLN-530025472
...
33
1600 G.TRIMMER-T3 & 4; 1600T-T1 PLN-530026981
...
34
Carburetor Fuel Line PLN-530021073
...
35
Crankshaft Seal Included in Engine Gasket Kit. PLN-530019059
...
36
Screw - 1600 G.TRIMMER-T1 & 2 Only PLN-530015004
...
37
Choke Wire Clamp - 1600 G.TRIMMER-T1 & 2 PLN-530024651
...
38
Screw PLN-530015816
...
39
Ignition Module Kit PLN-530069181
...
40
Plug Wire Grommet PLN-530024435
...
41
High Tension Lead Wire PLN-530039082
...
42
Carburetor Case Seal Included in Engine Gasket Kit. PLN-530019105
...
43
Choke Wire Boot - 1600 G.TRIMMER-T1 & 2 Only Included in Engine Gasket Kit. PLN-530023373
...
44
Choke Wire - 1600 G.TRIMMER-T1 & 2 Only PLN-530026236
...
45
Crankcase Ass'y (Inc.35,52 and Qty. 1 of #31) PLN-530010757
...
46
1600 G.TRIMMER-T1 & 2 PLN-530015404
...
46
1600 G.TRIMMER-T3 & 4; 1600T-T1 PLN-530015630
...
47
Wave Washer PLN-530015254
...
48
1600 G.TRIMMER-T1 & 2 PLN-530024558
...
48
1600 G.TRIMMER-T3 & 4; 1600T-T1 PLN-530026772
...
49
1600 G.TRIMMER-T1 & 2 PLN-530026237
...
49
1600 G.TRIMMER-T3 & 4; 1600T-T1 PLN-530026797
...
50
Carburetor (WA-149) PLN-530035183
...
51
Carburetor Gasket Included in Engine Gasket Kit. PLN-530019157
...
52
Crankshaft Bearing PLN-530032029
...
53
Crankshaft Thrust Washer PLN-530015351
...
54
Flywheel Key PLN-530015126
...
55
1600 G.TRIMMER-T1 & 2 PLN-530026675
...
55
1600 G.TRIMMER-T3 PLN-530010858
...
55
1600 G.TRIMMER-T4; 1600T-T1 PLN-530010844
...
56
Wrist Pin Retainer PLN-530015162
...
57
1600 G.TRIMMER-T1,2 & 3 PLN-530024302
...
57
1600 G.TRIMMER-T4; 1600T-T1 PLN-530027369
...
58
Engine Gasket Kit Included in Engine Gasket Kit. PLN-530069219
...
59
Screw #1/4-20x3/4 PLN-530015239
...
60
Spark Plug Boot PLN-507475326
...
61
Spark Plug Boot PLN-530003934
...
62
High Tension Lead Ass'y.(Inc.41,60,61) PLN-530039103
...
63
1600 G.TRIMMER-T1 & 2 PLN-530015379
...
63
1600 G.TRIMMER-T3 & 4; 1600T-T1 PLN-530015674
...
64
Screw PLN-530015235
...
65
1600 G.TRIMMER-T1 & 2 PLN-530026029
...
65
1600 G.TRIMMER-T3 & 4; 1600T-T1 PLN-530027100
...
66
Nut #12-24 PLN-530015610
...
67
1600 G.TRIMMER-T1 & 2 PLN-530010453
...
67
1600 G.TRIMMER-T3 & 4;1600T-T1 PLN-530027189
...
68
Carburetor Case Crankcase Gasket Included in Engine Gasket Kit. PLN-530019108
...
69
Reed Valve PLN-530024438
...
70
Reed Valve Washer PLN-530023367
...
71
Screw #6-19x5/16 PLN-530015241
...
72
1600 G.TRIMMER-T1, 2 & 3 PLN-530032057
...
72
1600 G.TRIMMER-T4; 1600T-T1 PLN-530032092
...
73
1600 G.TRIMMER-T1,2 & 3 PLN-530022198
...
73
1600 G.TRIMMER-T4; 1600T-T1 PLN-530069240
...
74
Cylinder PLN-530012190
...
76
Muffler Spring PLN-530036409
...
77
Spark Plug (CJ-14) PLN-530030077
...
78
1600T PLN-530069243
...
81
Clutch Washer Kit PLN-530069196
...
82
Clutch Ass'y. Kit (Incl. Clutch Washer) PLN-530069194
...
83
Throttle Trigger PLN-530025342
...
84
Throttle Washer PLN-530015382
...
85
Screw #8-16x3/8 PLN-530015407
...
86
Screw 1/4-20x9/16 - 1600 G.TRIMMER-T2,3 & 4; 1600T-T1 PLN-530015609
...
87
1600 G.TRIMMER-T1 PLN-530010796
...
87
1600 G.TRIMMER-T2,3 & 4; 1600T-T1 PLN-530010797
...
89
Handle PLN-530025704
...
90
Screw #10-24x7/8 PLN-530015163
...
91
1600 G.TRIMMER-T1 PLN-530012096
...
91
1600 G.TRIMMER-T2,3 & 4; 1600T-T1 PLN-530026547
...
92
Screw #10-24x1-1/2 - 1600 G.TRIMMER-T1 Only PLN-530015376
...
93
Pinch Clamp Bolt-1600 G.TRIMMER-T1 Only PLN-530625509
...
95
Clamp-1600 G.TRIMMER-Type 2,3 & 4 1600T-T1 PLN-530026560
...
96
Screw PLN-530015740
...
97
Washer-1600 G.TRIMMER-T 3 & 4;1600T-T1 PLN-530015741
...
98
Spacer-1600 G.TRIMMER-T 3 & 4; 1600T-T 1 PLN-530015673
...
99
Throttle Wire-1600 G.TRIMMER-T3,4; 1600T-T1 PLN-530027190
...
100
Screw-1600 G.TRIMMER-T3 & 4; 1600T-T1 PLN-530015723
...
A
1600 G.TRIMMER-T1 & 2 PLN-530025708
...
A
1600 G.TRIMMER-T3 & 4; 1600T-T1 PLN-530027312
...
B
1600 G.TRIMMER-T1 & 2 PLN-530026421
...
B
1600 G.TRIMMER-T3 & 4;1600T-T1 PLN-530027116
...
...
...
