Weed Eater 1500 Gas Trimmer

Model: 1500 Gas Trimmer

Save
Part Not Listed?Part Not Listed?
product name

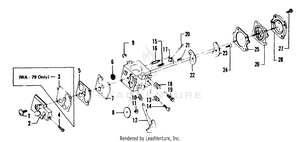

Carburetor Assembly PN 35183 & 35148

...
...
1
Screw - Pump Cover PLN-35017

...
2
Pump Cover Ass'y WA-79 (# 35148) (Incl. # 41) PLN-35154

...
2
Pump Cover Ass'y WA-149 (# 35183) (Incl. # 41) PLN-35184

...
3
Diaphragm - Pump (WA-79 - # 35148 Only) Contents in Gasket/Diaphragm Kit # 35145 or #35186; Contents in Kwik Kit # 35144 or # 35185. PLN-35135

...
4
Screw -Idle Adjustment PLN-35156

...
5
Gasket - Pump WA-79 (# 35148) Contents in Gasket/Diaphragm Kit # 35145 or #35186; Contents in Kwik Kit # 35144 or # 35185. PLN-35009

...
5
Gasket - Pump WA-149 (# 35183) Contents in Gasket/Diaphragm Kit # 35145 or #35186; Contents in Kwik Kit # 35144 or # 35185. PLN-35164

...
6
Screen -Inlet Contents in Kwik Kit # 35144 or # 35185. PLN-35178

...
7
Diaphragm - Pump WA-79 (# 35148) Contents in Gasket/Diaphragm Kit # 35145 or #35186; Contents in Kwik Kit # 35144 or # 35185. PLN-35152

...
7
Diaphragm - Pump WA-149 (# 35183) Contents in Gasket/Diaphragm Kit # 35145 or #35186; Contents in Kwik Kit # 35144 or # 35185. PLN-35166

...
8
Valve - Throttle PLN-35133

...
9
Clip - Throttle Shaft PLN-35007

...
10
Spring - Throttle Return PLN-35138

...
11
Screw - Throttle Valve Contents in Kwik Kit # 35144 or # 35185. PLN-530035015

...
12
Shaft Assembly - Throttle PLN-35132

...
13
Spring - Idle Needle PLN-35023

...
14
Needle - Idle PLN-35141

...
15
Spring -Metering Lever Contents in Kwik Kit # 35144 or # 35185. PLN-35139

...
16
Needle Contents in Kwik Kit # 35144 or # 35185. PLN-503117001

...
17
Lever - Metering Contents in Kwik Kit # 35144 or # 35185. PLN-35031

...
18
Spring - Hi Speed Needle PLN-35036

...
19
Needle - Hi Speed PLN-35142

...
20
Pin - Metering Lever Contents in Kwik Kit # 35144 or # 35185. PLN-35028

...
21
Screw - Metering Lever Pin PLN-35016

...
22
Gasket - Circuit Plate Contents in Gasket/Diaphragm Kit # 35145 or #35186; Contents in Kwik Kit # 35144 or # 35185. PLN-35147

...
23
Plate - Circuit PLN-35042

...
24
Screw - Circuit Plate Contents in Kwik Kit # 35144 or # 35185. PLN-35137

...
25
Gasket - Metering Diaphragm Contents in Gasket/Diaphragm Kit # 35145 or #35186; Contents in Kwik Kit # 35144 or # 35185. PLN-530035151

...
26
Diaphragm Assembly - Metering Contents in Gasket/Diaphragm Kit # 35145 or #35186; Contents in Kwik Kit # 35144 or # 35185. PLN-35014

...
27
Screw - Assembly - Metering Cover & Throttle Shaft Clip PLN-35153

...
28
Cover - Metering Diaphragm PLN-35149

...
xx
Kit - Kwik Kit Repair WA-79 (# 35148) (Not Shown) PLN-35144

...
xx
Kit - Kwik Kit Repair WA-149 (# 35183) (Not Shown) PLN-35185

...
xx
Kit - Gasket / Diaphragm WA-79 (# 35148) (Not Shown); Contents in Kwik Kit # 35144 or # 35185. PLN-35145

...
xx
Kit - Gasket / Diaphragm WA-149 (# 35183) (Not Shown); Contents in Kwik Kit # 35144 or # 35185. PLN-35186

...
xx
Carburetor PLN-35183

...
xx
Carburetor PLN-35148

Drive Shaft Assembly

...
...
1
Cutting Head Ass'y - New Style PLN-93894

...
3
Hub w/Line Saver PLN-93896

...
4
Line Saver PLN-93898

...
5
Spring PLN-92067

...
6
Adaptor - Spring PLN-92068

...
7
Drive Gear PLN-93897

...
8
Spool w/Line PLN-702512

...
9
Release Button PLN-93387

...
10

...
11
Bolt - Drive Adaptor - Old Style PLN-92064

...
12
Hub w/Line Saver - Old Style PLN-92131

...
13
Drive Gear - Old Style PLN-92069

...
14
Screw - Shield PLN-92243

...
15
Bracket - Shield (1/4 - 20 x 1-3/4) PLN-93653

...
16
Dust Cup PLN-93716

...
20
Shield PLN-94441

...
20
Shield Ass'y (Incl. #14, 20, 24, 25 & 26) PLN-69213

...
21
Assist Handle PLN-93729

...
22
Wing Nut - 1/4 - 20 PLN-91373

...
23
Washer - 1/4 Flat PLN-92062

...
24
Screw- Line Limiter (10- 24 x 1) PLN-530015337

...
25
Limiter - Line PLN-93853

...
26
Nut - Line Limiter PLN-15064

...
27
Hex Bolt - 1/4 - 20 x 2-1/4 PLN-92061

...
28
Drive Shaft Ass'y (Incl. # 13) PLN-93757

...
29
Flexible Shaft Ass'y PLN-93575

...
30
Flex Shaft Lube (Optional) PLN-30102

...
xx
Tap-N-Go Repair Kit For Old Style Only; (Incl. #5, 6, 9, 10 & 13) PLN-701569

...
31
Line Saver - Old Style PLN-92134

...
A
Decal - "D" Handle Warning Decal PLN-26274

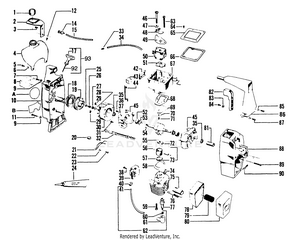

Engine Assembly

...
...
1
Fuel Cap Assembly (AYP part number) (Incl #91) PLN-106858X

...
2
Bracket - Fuel Tank PLN-25377

...
3
Screw -Bracket/Handle (1/4 - 10 x 1-1/8) PLN-92243

...
4
Fuel Tank Assembly (Incl. # 1, 4, 12, & 16) PLN-530010522

...
5
Screw- Fuel Tank/Fan Housing (10-1) PLN-530015509

...
6
Washer - Fuel Tank/Fan Housing PLN-530015512

...
7
Screw -Fan Hsg. Top #10 - 24 x 5/8 Fit. PLN-15168

...
8
Air Filter PLN-24371

...
9
Washer - Flat - Fan Housing PLN-530015274

...
10
Fan Housing PLN-11909

...
11
Screw -Fan Housing - Bottom - #10 - 24 x 1-3/16 Fil. PLN-530015305

...
12
Check Valve - Duck Bill PLN-26119

...
14
Fuel Pick-Up Ass'y. PLN-91878

...
15
Line - Fuel Pick-up PLN-21045

...
17
Handle - Starter PLN-26735

...
18
Starter - Recoil Spring PLN-42067

...
19
Starter - Pulley PLN-26048

...
20
Button - Kill Switch PLN-24366

...
21
Spring - Kill Switch PLN-25378

...
22
Washer - Kill Switch PLN-530015382

...
23
Screw- Kill Switch (8 x 3/8) PLN-530015407

...
24
Crankcase Sealant - 3 oz. tube (Optional) PLN-530030054

...
25
Washer - Starter Pulley PLN-530015123

...
26
Screw - Starter Pulley (# 10 - 3/4 - Hex Head) PLN-530015479

...
27
Nut - Flywheel PLN-626605

...
28
Spring - Starter Dog PLN-42059

...
29
Washer - Flywheel PLN-530015127

...
30
Flywheel Ass'y (Incl. # 28) PLN-39114

...
31
Screw - Crankcase (# 10 - 24 x 5/8 Fil.) PLN-15168

...
32
Knob-Choke PLN-24303

...
33
Fitting - Fuel Line PLN-25472

...
34
Fuel Line - Carburetor PLN-21044

...
35
Seal - Crankshaft PLN-19059

...
36
Screw - Clamp # 8 - 32 x 5/16 Pan. PLN-15004

...
37
Clamp - Choke Wire PLN-24651

...
38
Screw -Ignition Module (8 - 32 x 3/4 - Sems) PLN-15128

...
39
Ignition Module PLN-69181

...
40
Grommet - Plug Wire PLN-24435

...
41
Lead Wire - High Tension PLN-39082

...
42
Seat - Carburetor Case PLN-19105

...
43
Boot - Choke Wire PLN-530023373

...
44
Wire - Choke PLN-24305

...
45
Crankcase Ass'y (Incl. # 35 & 52) PLN-10316

...
46
Screw - Carburetor (Shoulder # 10 - 24) PLN-530015404

...
47
Wave Washer PLN-530015254

...
48
Shutter - Choke PLN-24558

...
49
Plate - Guide, Choke Wire PLN-26237

...
50
Carburetor PLN-35183

...
51
Gasket Carburetor PLN-19115

...
52
Bearing - Crankshaft PLN-32058

...
53
Thrust Washer - Crankshaft PLN-530015351

...
54
Key - Flywheel PLN-530015126

...
55
Crankshaft & Rod Assembly PLN-22202

...
56
Retainer - Wrist Pin PLN-530015162

...
57
Piston Ring PLN-24302

...
58
Gasket Cylinder PLN-19111

...
59
Screw - Cylinder (1/4 - 20 x 3/4 Socket Head) PLN-530015239

...
60
Spark Plug Boot PLN-507475326

...
61
Boot - Spark Plug PLN-530003934

...
62
High Tension Lead Ass'y (Incl. # 41, 60 & 61) PLN-502039103

...
63
Screw-Carburetor (# 10 - 24 Fil.) PLN-530015379

...
64
Screw Carburetor Cover (8 - 18 x 9/16) PLN-15235

...
65
Cover Carburetor Case PLN-24355

...
66
Gasket - Carburetor Case Cover PLN-19112

...
67
Carburetor Case Assembly PLN-10453

...
68
Gasket Carburetor Case/Crankcase PLN-19108

...
69
Reed Valve PLN-24438

...
70
Washer - Reed Valve PLN-23367

...
71
Screw - Reed Valve (6 - 19 x 5/16) PLN-15241

...
72
Bearing - Wrist Pin PLN-32057

...
73
Piston Ass'y (Incl. # 56, 57 and Pin) PLN-22198

...
74
Cylinder PLN-12070

...
75
Diffuser Muffler PLN-26949

...
76
Spring - Muffler Attachment PLN-24903

...
77
Spark Plug (RCJ-8) PLN-30058

...
78
Body Muffler PLN-24362

...
79
Screen-Spark Arrestor PLN-24364

...
80
Cover-Muffler PLN-24361

...
81
Coupling - Hex Drive PLN-93694

...
82
Trigger - Throttle PLN-25342

...
83
Washer - Throttle PLN-530015382

...
84
Screw - Throttle (8 - 16 x 3/8) PLN-530015407

...
85
Washer - Flat - Shroud PLN-530015274

...
86
Handle PLN-25704

...
87
Screw - Shroud (Top) - (10 - 24 x 7/8) PLN-15163

...
88
Shroud PLN-11778

...
89
Screw - Shroud (Bottom) - # 10 - 24 x 1-1/2 Fil. PLN-15376

...
90
Bolt, Pinch Clamp (1/4 - 20 x 1 - Hex Cap) PLN-93802

...
91
"O" Ring - Fuel Cap (Not shown) PLN-19136

...
92
Rope (3 1/2 Ft.) PLN-22290

...
93
Rope & Handle - Starter Ass'y PLN-26792

...
A
Decal - Starting instructions PLN-25846

...
B
Decal - Choke / OFF PLN-25845

...
B
Decal - Shroud (Right) Not Shown PLN-25848

...
B
Decal - Shroud (Left) Not Shown PLN-25849
...
...
...
