Weed Eater 1209 Electric Trimmer

Model: 1209 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

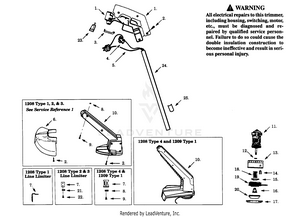

TRIMMER ASSEMBLY

...
...
1
Handle Set PLN-530347598
...
2
Screw PLN-530352036
...
3
Trigger PLN-530347654
...
4
On/Off Switch PLN-530347897
...
5
Wiring Harness (Incl. 4) PLN-530401656
...
6
Shield, 1208 Type 2 & 3 PLN-530351803
...
7
Line Limiter, 1208 Type 1 PLN-530350362
...
7
Line Limiter, 1208 Type 2 & 3 PLN-530351802
...
7
Line Limiter, 1208 Type 4 PLN-534958001
...
7
Line Limiter, 1209 Type 1 PLN-534938002
...
8
Nut PLN-534790500
...
9
Screw PLN-530348050
...
10
Motor Housing Set, 1208 Type 2 PLN-530351808
...
10
Motor Housing Set, 1208 Type 3 PLN-530400113
...
10
Motor Housing Set, 1208 T4 & 1209T1 PLN-530036713
...
11
Motor Assembly, 1208 Type 1 & 2 PLN-530347695
...
11
Motor Assembly, 1208 Type 3 & 4, 1209 Type 1 PLN-530400772
...
12
Washer PLN-530001717
...
13
Hub PLN-530347573
...
14
Line Saver PLN-530340594
...
15
Spring Cap PLN-530340732
...
16
Drive Gear PLN-530350366
...
17
Cover PLN-530340591
...
18
Spring PLN-530340006
...
19
Spool (Incl. Line) PLN-952701521
...
20
Tap Button PLN-530340592
...
21
Blade Cover PLN-530351801
...
22
Screw PLN-530351800
...
23
Cord Retainer PLN-530347653
...
24
Tube w/decal PLN-530400270
...
25
Warning Decal PLN-530400274
...
xx
Operator's Manual Not Shown. PLN-530083568
...
xx
Carton Contents Bag Not Shown. PLN-530401368
...
...
...
