product name

Weed Eater 1000E W/E Edger Attachment Type 2, Weed N' Edge

Model: 1000E W/E Edger Type 2

Save
 Part Not Listed?Part Not Listed?
product name

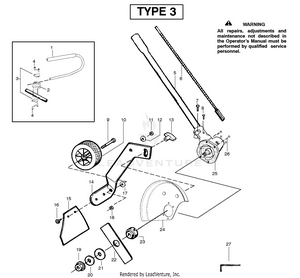

Edger Attachment Assembly Type 3

...
...
1
Kit - Handlebar incl. grip,cap,decal PLN-530071394
...
2
Clamp - Handlebar 7/8" PLN-530058766
...
2
Clamp - Handlebar 1" PLN-530058765
...
3
Bracket - Clamp PLN-530058563
...
4
Screw PLN-530015886
...
5
Kit-Assy. Driveshaft PLN-545003364
...
6
Flexshaft - Split boom PLN-530096183
...
7
Screw PLN-530016014
...
8
Screw - Alignment PLN-530016224
...
9
Bolt - Shoulder Axle PLN-530015981
...
10
Wheel - 4" rubber PLN-530095125
...
11
Locknut PLN-530015515
...
12
Washer PLN-530092062
...
13
Knob PLN-530092059
...
14
Bracket - Adj. Wheel PLN-530053009
...
15
Kit - Mud Flap incl.#16 PLN-530071251
...
16
Fastener - Mud Flap PLN-530053012
...
17
Washer PLN-530092062
...
18
Locknut PLN-530015515
...
19
Nut - Flange L.H. PLN-530015793
...
20
Washer - Belleville PLN-530016240
...
21
Washer - Flat PLN-530015792
...
22
7.5" Blade PLN-530053007
...
23
Dustcup PLN-530054623
...
24
Kit - Edger Guard PLN-530071930
...
25
Kit - Gearbox PLN-530071586
...
26
Screw PLN-530016312
...
27
Wrench - Hex 5/32" PLN-530031159
...
xx
Manual Not Shown PLN-545133462
...
xx
Hanger-Attachment Not Shown PLN-530150031
...
xx
Decal - Shaft Warning Not Shown PLN-545005908
...
xx
Decal-Guard Warning Not Shown PLN-545074501
...
...
...
