product name

Weed Eater 1000 G.TRIMMER Gas Trimmer

Model: 1000 G.TRIMMER Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

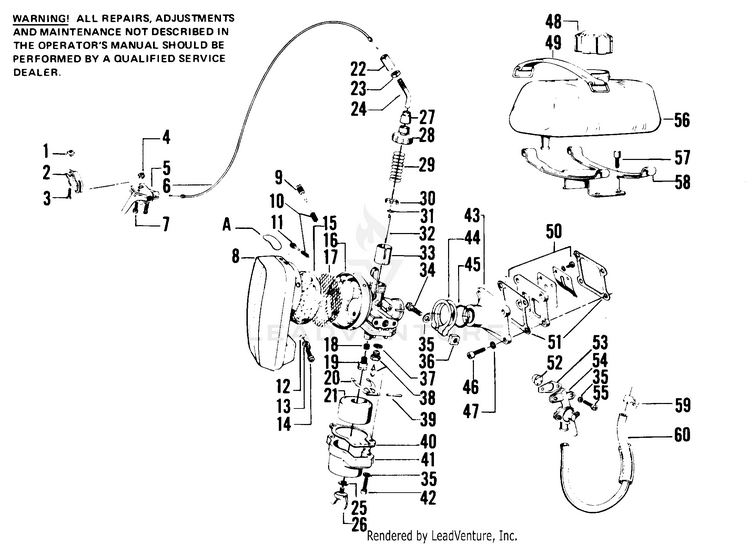

CARBURETOR & FUEL TANK

...
...
1
Nut - Throttle Control Clamp PLN-530091345
...
2
Clamp - Throttle Control PLN-530092881
...
3
Bolt - Throttle Control Clamp PLN-530091332
...
4
Wing Nut - Throttle Control PLN-530092408
...
5
Throttle Control PLN-530092407
...
6
Throttle Cable PLN-530092882
...
7
Screw Throttle Control PLN-530091331
...
8
Silencer Assembly PLN-530092478
...
9
Screw - Air Bleed PLN-530092536
...
10
Spring PLN-530092535
...
11
Screw - Throttle Stop PLN-530092534
...
12
Flat Washer PLN-530092546
...
13
Spring Washer PLN-530091623
...
14
Screw PLN-530092489
...
15
Filter PLN-530092473
...
16
Carburetor Assembly (Incl. 9, 10, 11, 22-33, 37,-42) PLN-530092462
...
17
Screen PLN-530092474
...
18
Jet - Pilot PLN-530092533
...
19
Main Jet PLN-530092528
...
20
Float Hinge PLN-530092487
...
21
Float PLN-530092471
...
22
Throttle Cable Bushing PLN-530092479
...
23
Cable Adjusting Nut PLN-530092481
...
24
Cable Adjuster PLN-530092482
...
25
Fiber Washer PLN-530092526
...
26
Drain Screw PLN-530092527
...
27
Rubber Grommet PLN-530092483
...
28
Cap PLN-530092486
...
29
Throttle Spring PLN-530092485
...
30
Spring Seat PLN-530092465
...
31
E-Ring PLN-530092466
...
32
Needle Jet PLN-530092463
...
33
Piston Valve PLN-530092464
...
34
Bolt PLN-530092475
...
35
Washer PLN-530089063
...
36
Square Nut PLN-530092477
...
37
Washer PLN-530092467
...
38
Needle Valve Assembly PLN-530092948
...
39
Float Hinge Pin PLN-530092488
...
40
Gasket PLN-530092469
...
41
Float Chamber PLN-530092525
...
42
Screw PLN-530092484
...
43
Carburetor Bracket PLN-530092501
...
44
Clamp PLN-530092476
...
45
"O" Ring PLN-530092537
...
46
Bolt PLN-530092511
...
47
Lock Washer PLN-530089072
...
48
Fuel Tank Cap Assembly PLN-530092448
...
49
Tank Band PLN-530092452
...
50
Reed Valve Assembly PLN-530092492
...
51
Gasket PLN-530092502
...
52
Filter PLN-530092524
...
53
Gasket PLN-530092523
...
54
Valve - Fuelflow PLN-530092518
...
55
Screw PLN-530092543
...
56
Fuel Tank PLN-530092451
...
57
Bolt PLN-530092453
...
58
Fuel Tank Bracket Assembly PLN-530092449
...
59
CLAMP 10805-01 Z PLN-530092521
...
xx
GASKET PLN-110092521
...
60
Fuel Pipe Assembly PLN-530092519

DRIVE SHAFT

...
...
1
Nut - 6mm - Housing (Gear Box) PLN-530093703
...
2
Lockwasher - 6mm - Housing (Gear Box) PLN-530091578
...
3
Plug - Oil Hole PLN-530091581
...
4
Washer PLN-530091582
...
5
Collar Shaft PLN-530091591
...
6
Oil Seal PLN-530091589
...
7
Bolt, Housing - 6 x 12mm PLN-530091579
...
8
Lockwasher, Bearing Housing PLN-530091578
...
9
Gear Box Assembly PLN-530092417
...
10
Bracket Shield/Gear Box See Service Ref.1 PLN-530093706
...
11
Filter, Washer PLN-530091584
...
12
Bolt, Gear Box - 6mm x 34mm PLN-530093704
...
13
Shoulder Strap Assembly PLN-530092117
...
14
Grip, Handlebar PLN-530091402
...
15
Handiebar PLN-530092248
...
16
Throttle Cable Tie Strap PLN-530024675
...
17
Bolt, Bracket Shield Assembly PLN-530091616
...
18
Washer, Bracket Shield Assembly PLN-530091615
...
19
Upper Cap Bracket, Shield Assembly PLN-530092414
...
20
Lower Bracket, Shield Assembly PLN-530092415
...
21
Shield PLN-530093743
...
22
Flat Washer PLN-530091622
...
23
Lock Washer PLN-530091623
...
24
Screw, Shield PLN-530093705
...
25
Upper Blade Adaptor PLN-530092143
...
26
10" Brush Blade PLN-952701547
...
27
Blade Adaptor (Lower) PLN-530091594
...
28
Nut PLN-530091596
...
29
Cap Nut PLN-530091595
...
30
Upper Cap, Handle Clamp Assembly PLN-530092411
...
31
Screw, Handlebar Clamp Assembly PLN-530092409
...
32
Middle Block, Handlebar Clamp Assembly PLN-530092412
...
33
Drive Shaft Housing Assembly PLN-530092402
...
34
Lower Cap, Handlebar Clamp Assembly PLN-530092413
...
35
Screw, Handlebar Clamp Assembly PLN-530093165
...
36
Run/Stop Switch Assembly PLN-530010395
...
37
Bolt, Motor Leg PLN-530092368
...
38
Lockwasher PLN-530092369
...
39
Drive Shaft PLN-530092401
...
40
Cutting Head Ass'y, (Incl. #44-53 & 74) PLN-530093954
...
41
Wing Nut PLN-530092422
...
42
Washer PLN-530092423
...
43
Spring PLN-530092424
...
44
Spacer PLN-530091664
...
45
Release Button Ass'y, (Incl. Lock Ring) PLN-530093602
...
46
Hub PLN-530091656
...
47
Line Saver PLN-530091425
...
48
Drive Adaptor PLN-530091423
...
50
Spring PLN-530091657
...
51
Spool w/line PLN-952701526
...
52
Cover, Cutting Head PLN-530091424
...
53
Screw, Cover PLN-530091662
...
54
Spacer, Clutch Housing PLN-530092396
...
55
Snap Ring, Clutch Housing PLN-530092397
...
56
Clutch Housing PLN-530092398
...
57
Drum, Clutch PLN-530092393
...
58
Snap Ring, Clutch Housing PLN-530092394
...
59
Bearing, Clutch Housing PLN-530092395
...
60
Snap Ring, Clutch Housing PLN-530091592
...
61
Bracket, Shoulder Harness PLN-530092399
...
62
Bolt PLN-530092421
...
63
Clamp - Tension PLN-530092419
...
64
Bolt, Shoulder Harness Bracket PLN-530089008
...
65
Washer, Clutch Shoe PLN-530092385
...
66
Bolt, Clutch Shoe PLN-530092389
...
67
Clutch Assembly (Inc.65,66,69,71,72,73) PLN-530092092
...
68
Washer, Clutch Assembly PLN-530092391
...
69
Spring, Clutch PLN-530092388
...
70
Nut, Clutch Assembly PLN-530092392
...
71
Clutch Shoe PLN-530092387
...
72
Clutch Rotor PLN-530092384
...
73
Washer, Clutch Shoe PLN-530092386
...
74
Allen Wrench - Cutting Head PLN-530091663
...
75
Head Removal Tool PLN-530091357
...
76
Wrench - 5 mm Hex PLN-530092259
...
77
Wrench - 4 mm Hex PLN-530092258
...
78
Screwdriver - Phillips PLN-530092425
...
79
Wrench - 10 mm & 12 mm Socket PLN-530092256
...
80
Wrench - Spark Plug Socket PLN-530092257
...
81
Wrench - 14 mm & 17 mm PLN-530091361
...
83
Grease Gun PLN-530091413
...
84
Weed Blade (Optional) PLN-952701546
...
85
Tool Kit (Incl.#75-82) PLN-530092255
...
A
Decal - Handlebar Locator PLN-530024693
...
xx
Operator's Manual Not Shown. PLN-530064344

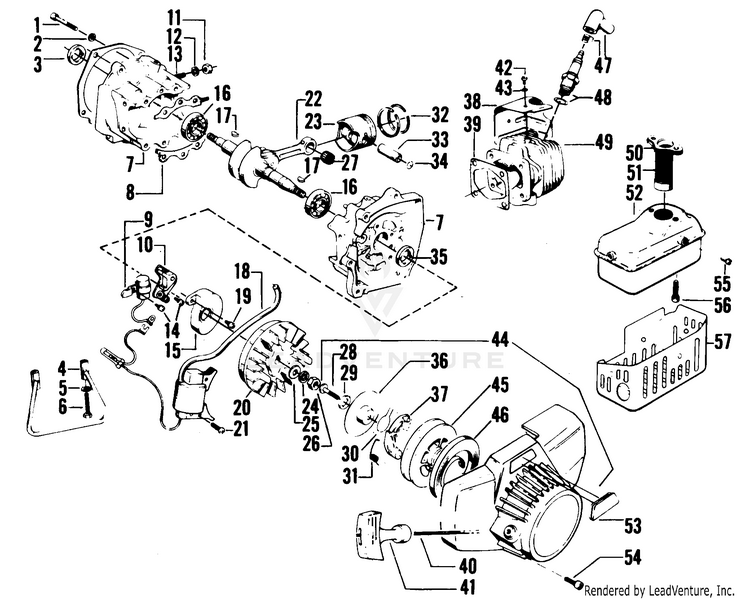

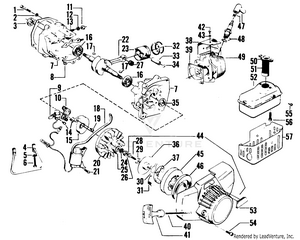

POWER UNIT

...
...
1
Bolt PLN-530092508
...
2
Lockwasher PLN-530089072
...
3
Oil Seal (Rear) PLN-530092495
...
4
Stand PLN-530092538
...
5
Lockwasher PLN-530092541
...
6
Bolt PLN-530092539
...
7
Crankcase Complete (Incl. 3, 8, 16, 35, 39 & 56) PLN-530092513
...
8
Crankcase Gasket Set PLN-530092493
...
9
Condenser PLN-530092456
...
10
Point Set PLN-530092455
...
11
Nut, Cylinder PLN-530089067
...
12
Washer, Cylinder PLN-530091578
...
14
Screw & Washer Assembly PLN-530092499
...
15
Cover PLN-530092457
...
16
Bearing PLN-530092496
...
17
Woodruff Key PLN-530092435
...
18
Ignition Coil PLN-530092458
...
19
Screw PLN-530092459
...
20
Flywheel PLN-530092454
...
21
Screw PLN-530092461
...
22
Crankshaft Assembly PLN-530092428
...
23
Piston PLN-530092429
...
24
Lock washer PLN-530092515
...
25
Washer - Flywheel Flat PLN-530092542
...
26
Nut PLN-530092517
...
27
Needle Bearing PLN-530092433
...
28
Screw PLN-530092445
...
29
Washer PLN-530092522
...
30
Friction Spring PLN-530092433
...
31
Return Spring PLN-530092444
...
32
Piston Ring PLN-530092431
...
33
Piston Pin PLN-530092432
...
34
Retaining Ring PLN-530092434
...
35
Oil Seal (Front) PLN-530092494
...
36
Friction Plate PLN-530092442
...
37
Ratchet PLN-530092441
...
38
Cylinder Cover PLN-530092498
...
39
Cylinder Gasket PLN-530092497
...
40
Starter Rope PLN-530092446
...
41
Starter Handle PLN-530092447
...
42
Screw - Cylinder Cover PLN-530092512
...
43
Lockwasher, Cylinder Cover PLN-530091623
...
44
Recoil Starter Assembly (Inc.28,29,30,31,36, 37,40,41,45,46) PLN-530092436
...
45
Starter Pulley PLN-530092438
...
46
Recoil Spring PLN-530092439
...
47
Spark Plug Cap Assembly PLN-530092505
...
48
Spark Plug (NGK B7HS) PLN-530092506
...
49
PLN-531838124
...
50
Muffler Gasket PLN-530092504
...
51
Screen, Spark Arrestor PLN-530092531
...
52
Muffler Assembly PLN-530092503
...
53
Plug PLN-530092516
...
54
Bolt PLN-530092437
...
55
Screw PLN-530092514
...
56
Bolt PLN-530092509
...
57
Muffler Cover Assembly PLN-530092507
...
...
...
