Weed Eater 1000 Electric Trimmer

Model: 1000 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

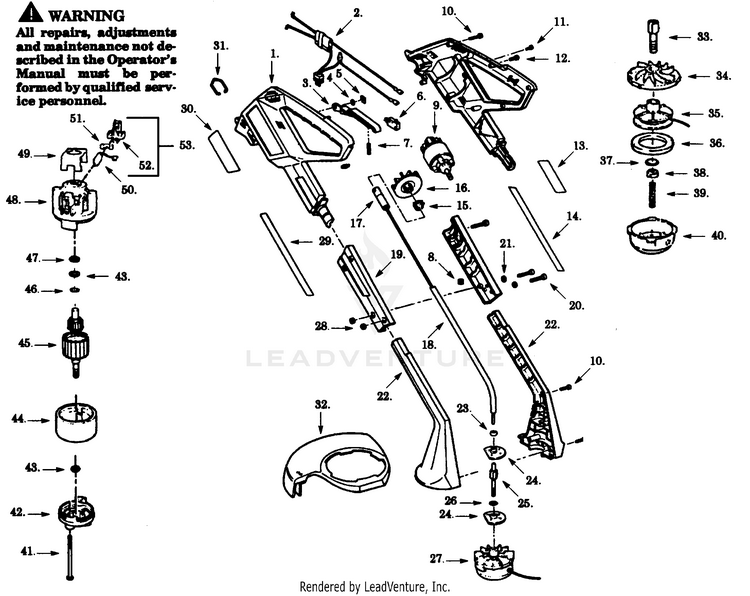

TRIMMER/BRUSHCUTTER ASSEMBLY

...
...
1
Motor Hsg. Set PLN-534787902
...
2
Harness PLN-534789301
...
3
Trigger PLN-534788305
...
4
Washer PLN-534228802
...
5
Push Nut PLN-534790800
...
6
Switch PLN-534789000
...
7
Trigger Spring PLN-534790700
...
8
Square Nut PLN-534808100
...
9
Motor Ass'y. PLN-534768301
...
10
Screw PLN-534790300
...
11
Screw PLN-534731402
...
12
Screw PLN-534790301
...
13
Warning Label (Not a serviceable part) PLN-534798700
...
14
Logo Label (L) (Model 1000) PLN-534789600
...
14
Logo Label (L) (Not a serviceable part) PLN-534845900
...
15
Fan Clamp PLN-534560103
...
16
Fan PLN-534526802
...
17
Flex Shaft Ass'y. PLN-534788505
...
18
Sleeve Tubing PLN-534788902
...
19
Housing Clamp PLN-534788102
...
20
Screw PLN-534799500
...
21
Washer PLN-534828701
...
22
Spindle Housing PLN-534788005
...
23
Washer PLN-534636002
...
24
Bearing Holder Disk PLN-534790600
...
25
Shaft Adapter PLN-534789901
...
26
Washer PLN-534228802
...
27
Head Ass'y. (Model 1000) PLN-534167005
...
27
Head Ass'y. (Model 1200) PLN-534167011
...
28
Nut PLN-534790500
...
29
Logo Label (R) (Model 1000) PLN-534789400
...
29
Logo Label (R) (Model 1200) (Not a serviceable part) PLN-534846000
...
30
Nameplate Label (Model 1000) PLN-534799400
...
30
Nameplate Label (Model 1200) PLN-534847900
...
31
Hanger PLN-534270100
...
32
Guard Ass'y. (Model 1000) PLN-534790200
...
32
Guard Ass'y. (Model 1200) PLN-534846100
...
33
Shaft Adapter PLN-534787800
...
34
Rear Plate PLN-534167215
...
35
Spool & Line (Model 1000) PLN-534167805
...
35
Spool & Line (Model 1200) PLN-534167815
...
36
Foam Pad PLN-534167700
...
37
O-Ring PLN-534316200
...
38
Adapter Nut PLN-534166700
...
39
Spring PLN-534819200
...
40
Hub Ass'y. PLN-534167935
...
41
Screw PLN-534228703
...
42
Endbell Ass'y. (Drive) PLN-534207101
...
43
Washer PLN-534228800
...
44
Field Ass'y. PLN-534227004
...
45
Armature Ass'y. PLN-534767701
...
46
Retaining Ring PLN-534246700
...
47
Washer PLN-534238903
...
48
Endbell Ass'y. (Brush) PLN-534227501
...
49
Insulator PLN-534226000
...
50
Brush PLN-534227800
...
51
Brush Spring PLN-534228000
...
52
Brush Holder PLN-534227700
...
53
Brush Kit (Incl. 50,51,52) PLN-534450400
...
54
Operator Manual Not Shown. PLN-534885980
...
...
...
