Walbro Impulse Pump WIP-13-1

Model: Impulse Pump WIP-13-1

Save
 Part Not Listed?Part Not Listed?
product name

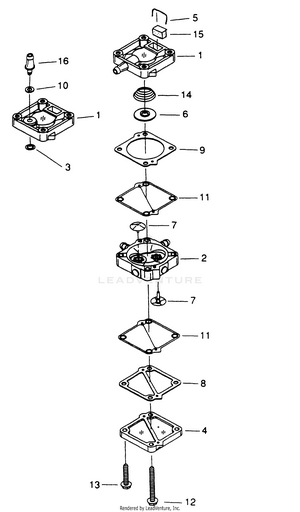

WIP-13-1 PARTS LIST

...
...
xx
Engine Cycle WLB-4 CYCLE
...
xx
Repair Kit Contents in Repair Kit WLB-K10-WIP
...
1
Body Impulse WLB-5-4956-1
...
2
Body - Pump WLB-5-4786-1
...
4
Cover - Pump WLB-21-3049
...
5
Clip- Filter Retainer WLB-43-60
...
6
Bearing - Spring WLB-48-24
...
7
Valve - Check - Contents in Repair Kit WLB-82-34
...
8
Gasket - Pump Cover Contents in Repair Kit WLB-92-348
...
9
Gasket - Pump Body Contents in Repair Kit WLB-92-349
...
11
Diaphragm - Pump - Contents in Repair Kit WLB-95-123
...
12
Screw -(1 3/4 lg) - [2 or 4] WLB-96-460
...
14
Spring - Pressure WLB-98-3109
...
15
Filter - Air Contents in Repair Kit WLB-125-85
...
xx
Bracket (Not Shown) WLB-167-126
...
...
...
