Troy-Bilt TB R16 15A-3000766 (2012) Reel Mower

Model: TB R16 15A-3000766 (2012)

Save
 Part Not Listed?Part Not Listed?
product name

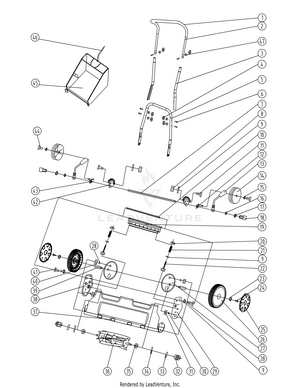

General Assembly

...
...
1
Grip, Handle, 26 x 16 x 630 MTD-720-04167
...
2
Handle, Upper MTD-749-04811
...
3
Handle, Middle MTD-749-04812
...
4
Knob, Red MTD-720-04168
...
5
Handle, Lower, TB R16 MTD-749-04813
...
5
Handle, Lower, TB R18 MTD-749-04814
...
6
Bolt, M6x35gb/T12 MTD-710-05321
...
7
Shaft, Rear, TB R16, Red MTD-711-05530
...
7
Shaft, Rear, TB R18, Red MTD-711-05532
...
8
Nut, M8, Gb/T6172.2 MTD-712-04292
...
9
Washer, 17 x 8.2 x 1.2 MTD-736-04563
...
10
Pin, TB R16 MTD-711-05534
...
10
Pin, TB R18 MTD-711-05535
...
11
Screw, M8-16gbt70.2 MTD-710-05322
...
12
Bracket, Rear, LH, Red MTD-787-01959
...
13
HANDLE ADJUSTMENT (RH) (POWDER BLACK) MTD-787-02085-0637
...
13
HANDLE ADJUSTMENT (LH) (POWDER BLACK) MTD-787-02084-0637
...
14
Wheel, Rear MTD-734-04605
...
15
Washer, 17 x 8.2 x 1.2 MTD-736-04564
...
16
Washer, Gb/T955 MTD-736-04565
...
17
Washer, 20 x 13 x 1 MTD-736-04566
...
18
Bolt, M8 x 24 MTD-710-05323
...
19
Bracket, Lower Blade, TB R16, Red MTD-787-01964
...
19
Bracket, Lower Blade, TB R18, Red MTD-787-01966
...
20
Nut, M8 x 1 MTD-712-04293
...
21
Spacer, 65mm, 17 x 4 x 48 MTD-732-04854
...
22
Bolt, M8 x 1 x 65 MTD-710-05324
...
23
Washer, 25 x 6.5 x 1.5 MTD-736-04567
...
24
Bolt, M6x20, Gb/T5780 MTD-710-05325
...
25
Hub Cap MTD-731-08253
...
26
Wheel, Complete MTD-734-04606
...
27
Bracket, Red MTD-787-01968
...
28
Washer, Spacer, Gb/T7244 MTD-736-04568
...
29
Bracket, Support, LH, Red MTD-787-01972
...
30
Washer, 20x10.2x1.4 MTD-736-04569
...
31
Nut, M10, Gb/T6172.2 MTD-712-04294
...
32
GEAR-41MM MTD-917-04917
...
33
Support, 19 x 10 x 5 MTD-787-01976
...
34
Washer, 34 x 15.5 x 1 MTD-736-04570
...
35
Bearing, 6002z MTD-741-04514
...
36
Blade, Roller, TB R16 MTD-942-04362
...
36
Blade, Roller, TB R18 MTD-942-04363
...
37
Shield, Deflector, TB R16 MTD-787-01977
...
37
Shield, Deflector, TB R18 MTD-787-01979
...
38
Bracket, Support, RH, Red MTD-787-01981
...
39
Axle, Wheel, 19x65.5 MTD-711-05536
...
40
Nut, M8, Gb/T6170 MTD-712-04295
...
41
Bolt, M8x16gb/T5781 MTD-710-05326
...
42
Bracket, Adjustment, 9 Tooth MTD-787-02083
...
43
Bracket, Rear, RH, Red MTD-787-01987
...
44
Bolt, M6x10 Gb/T5780 MTD-710-05327
...
45
Grass Bag, TB R18 MTD-764-04132
...
46
STRAP-GRASSBAG REEL MOWER SUMEC MTD-927-04374
...
47
Saddle Washer MTD-736-04573

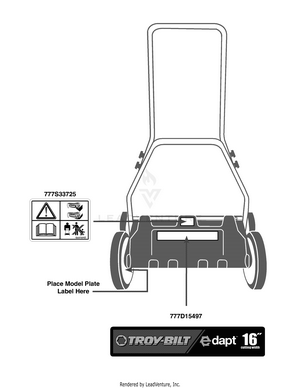

Label Map TB R16

...
...
777S33725
LABEL-REEL MOWER DANGER PICTS MTD-777S33725
...
777D15497
LABEL:REELMWR:HSNG/28CM:E2/16 MTD-777D15497
...
...
...
