Troy-Bilt OEM-290-260 Sweep Cultivator 290-260-081

Model: OEM-290-260 Sweep Cultivator, 290-260-081

Save
 Part Not Listed?Part Not Listed?
product name

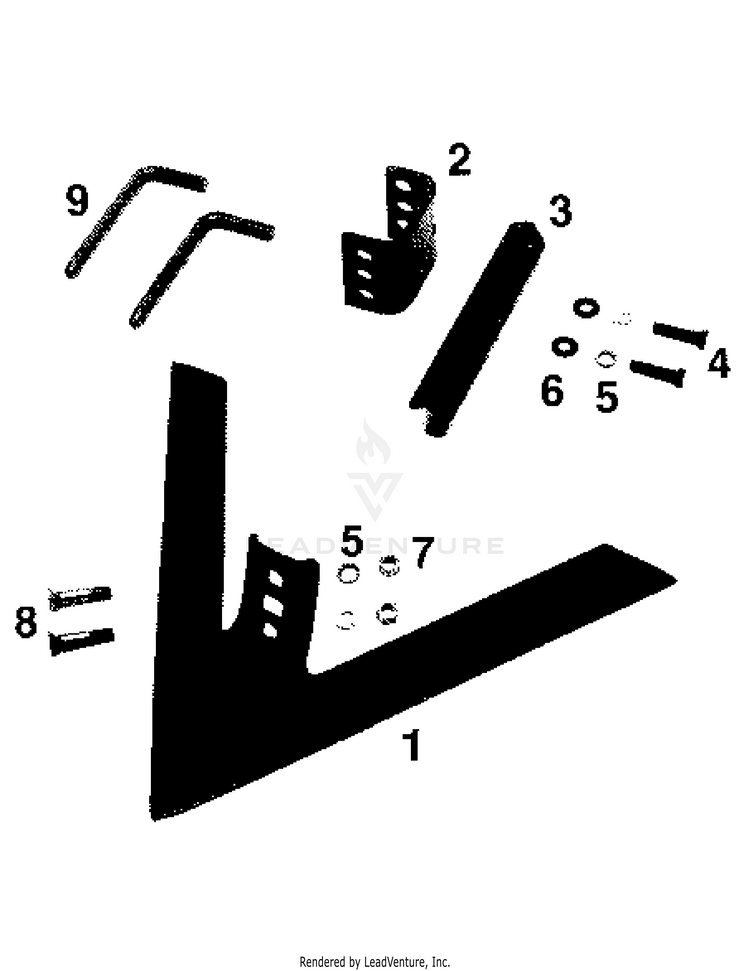

General Assembly

...
...
1
Sweep with Flanged Stem MTD-GW-2276
...
2
C-shaped Mounting Bracket MTD-GW-2285
...
3
Channel Mounting Bracket MTD-GW-2286
...
4
Hex Hd. Bolt, 7/16"-14 x 1-3/4" MTD-1751467
...
5
Lock Washer, 7/16 MTD-736-0171
...
6
Flat Washer, 7/16" MTD-GW-9936
...
7
Hex Nut, 7/16-14 MTD-712-3019
...
8
Plow Bolt, 7/16" -14 x 2" MTD-GW-9577
...
9
Pin, 5/8" dia. x 5-5/8" MTD-GW-9363
