Troy-Bilt OEM-290-250 Hiller-Furrower 290-250-081

Model: OEM-290-250 Hiller-Furrower, 290-250-081

Save
 Part Not Listed?Part Not Listed?
product name

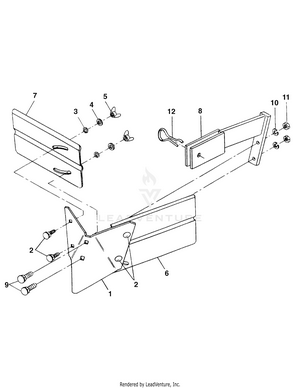

General Assembly

...
...
1
Furrower Blade MTD-1900771001
...
2
Carriage Bolt, 5/16-18 x 3/4 MTD-710-0451
...
3
External L-Washer 5/16 MTD-736-0607
...
4
Plain Washer, 5/16 S.A.E MTD-736-0567
...
5
Wing Nut, 5/16-18 MTD-GW-9824
...
6
Hiller Wing, left MTD-1900777001
...
7
Hiller Wing, right MTD-1900778001
...
8
Blade Mounting Bracket MTD-GW-2636
...
9
Carriage Bolt, 3/8-16 x 1-1/2 MTD-710-0431
...
10
Lockwasher, 3/8, plated MTD-736-0169
...
11
Hex Nut, 3/8-16, plated MTD-712-0798
...
12
Clinch Pin This part is no longer available, Use parts listed below MTD-GW-9318
...
12
CLEVIS PIN .500 x 1.25 MTD-711-04061
...
12
BOW TIE COTTER PIN MTD-714-05005
...
...
...
