Troy-Bilt OEM-190-116 Mulch Kit 190-116-000 Attachment

Model: OEM-190-116 Mulch Kit 190-116-000

Save
 Part Not Listed?Part Not Listed?
product name

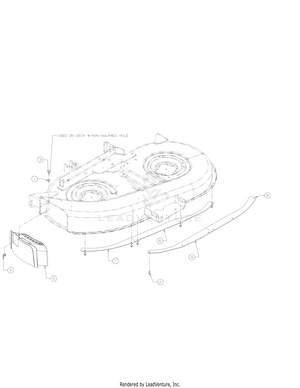

General Assembly

...
...
1
1/4-20 x .6 Carriage Screw MTD-710-0134
...
2
1/4-20 x .5 Self-tapping Screws MTD-710-0599
...
3
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
4
WING NUT 1/4-20 MTD-712-3087
...
5
Mulch Plug MTD-731-2363
...
6
LH Skirt for 42-inch Decks MTD-783-1258A-0637
...
7
RH Skirt for 42-inch Decks MTD-783-1259A-0637
...
8
RH Skirt for 38-inch Decks MTD-783-1299-0637
...
9
LH Skirt for 38-inch Decks MTD-783-1300-0637
...
10
SPRING WASHER BELL Not shown, if equipped MTD-736-0270
...
11
U-Nut Not shown, if equipped MTD-726-0211
...
...
...
