Troy-Bilt OEM-190-106 Grass Catcher

Model: OEM-190-106 Grass Catcher

Save
 Part Not Listed?Part Not Listed?
product name

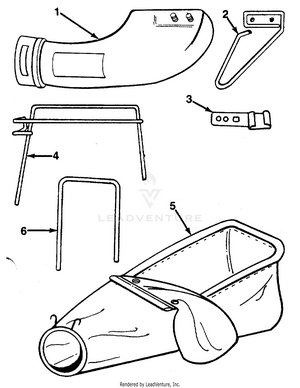

General Assembly

...
...
1
Plastic Chute MTD-731-1424
...
2
Chute Mounting Bracket w/ wire MTD-747-0891
...
3
Handle Bracket MTD-782-7007
...
4
Bag Frame MTD-747-0892
...
5
Bag w/clamp ring MTD-764-0453
...
6
Upper Support Tube MTD-749-0931
...
7
Pan Hd. Mach. Scr. 1/4-20 x .5" Lg. not shown MTD-710-0286
...
8
Hex Sems Nut 1/4-20 Thd. not shown MTD-712-0271
...
...
...
