Troy-Bilt 983-WU 357cc Engine OHV Engine

Model: 983-WU 357cc Engine

Save
 Part Not Listed?Part Not Listed?
product name

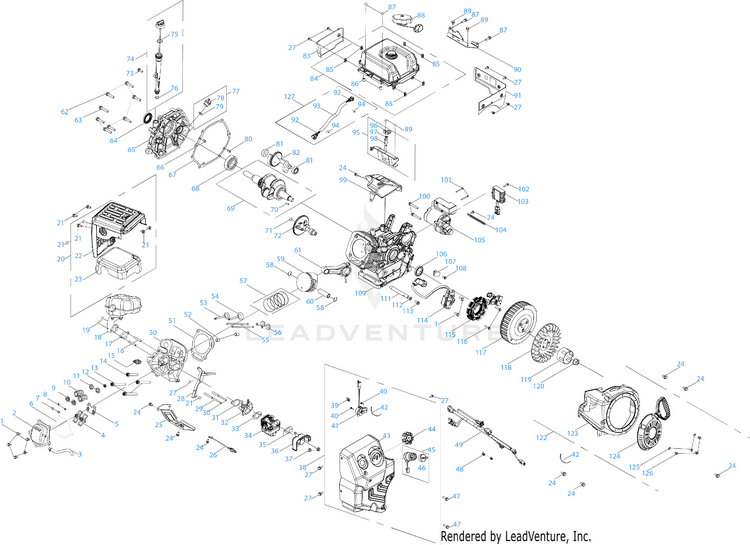

983-WU General Assembly

...
...
1
BOLT M6 x 16 MTD-710-04968
...
2
VALVE COVER MTD-951-11220
...
3
BREATHER HOSE MTD-751P20188
...
4
ROCKER ARM ASSEMBLY MTD-951-11981A
...
5
PUSH ROD GUIDE MTD-951-11965B
...
6
VALVE COVER GASKET MTD-951-15425
...
7
EXHAUST VALVE ADJUSTER MTD-951-12269
...
8
VALVE CAP MTD-951-14912A
...
9
VALVE SPRING SEAT MTD-951-14911
...
10
VALVE SPRING MTD-951-15812
...
11
VALVE SPRING RETAINER MTD-951-12077A
...
12
INTAKE VALVE SEAL MTD-951-11964A
...
13
SCREW M10-1.25 x 87 x GR10.9 MTD-710-06064
...
14
SCREW M10-1.25 x 65 x GR10.9 MTD-710-06065
...
15
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
16
STUDS M8-1.25 x 48.5 MTD-710-04964
...
17
MUFFLER GASKET MTD-951-11212A
...
18
MUFFLER MTD-951-15426A
...
19
NUT M8 MTD-751-15427
...
20
MUFFLER SHIELD MTD-951-05388A
...
21
BOLT M6-1 x 10 GR8.8 MTD-710-04914
...
22
MUFFLER SHIELD (OUTER) MTD-751P15428
...
23
MUFFLER SHIELD (INNER) MTD-751P15429A
...
24
BOLT M6-1 x 12 GR8.8 MTD-710-04915
...
25
CYLINDER BAFFLE MTD-951-11317
...
26
TEMP SENSOR MTD-751P20208
...
27
BOLT M6-1 x 14 GR8.8 MTD-710-04916
...
28
RECOIL SNOW GUARD MTD-951-15430
...
29
STUD M6 x 123 MTD-751-20209
...
30
STUD M6-1 x 104 MTD-710-04963
...
31
CARBURETOR INSULATOR GASKET MTD-951-15434A
...
32
INSULATOR MTD-751P20210
...
33
CARB GASKET MTD-751P20211
...
34
FUEL INJECTOR MTD-651P06735
...
35
AIR FILTER GASKET MTD-751P20213
...
36
HEATER BOX MTD-751P20214
...
37
HEX NUT MTD-712-05015
...
38
CONTROL PANEL MTD-751P20215
...
39
PLASTIC SUPPORT CLAMP MTD-931-10630
...
40
SCREW MTD-751-20216
...
41
SPEED CONTROL SWITCH MTD-751P20217
...
42
CABLE TIE - 3 x 150 MTD-725-06031
...
43
CONTROL PANEL MTD-751P20219
...
44
SPEED CONTROL KNOB MTD-751P18286
...
45
KEY SWITCH MTD-751P20068
...
46
KEY MTD-751P20264
...
47
SCREW M6-1 x 20 CL5.8 MTD-710-05192
...
48
PLASTIC SUPPORT CLAMP MTD-931-10630
...
49
EFI ENGINE HARNESS MTD-725P12945
...
50
CYLINDER HEAD (690-WU) ZS MTD-751-15813
...
51
CYLINDER HEAD GASKET MTD-951-11963A
...
52
DOWEL PIN MTD-715-04097
...
53
EXHAUST VALVE MTD-951-15814
...
54
INTAKE VALVE MTD-951-15777
...
55
PUSH ROD MTD-951-14226A
...
56
TAPPET MTD-951-11962A
...
57
PISTON RING KIT MTD-951-12579
...
58
PISTON PIN SNAP RING MTD-951-11953A
...
59
PISTON MTD-951-11952
...
60
PISTON PIN MTD-951-11954A
...
61
CONNECTING ROD ASSEMBLY MTD-951-11951
...
62
SCREW M8-1.25 x 38 GR10.9 MTD-710-06061
...
63
BOLT M8 x 45 MTD-710-06289
...
64
OIL SEAL MTD-951-11375A
...
65
CRANKCASE COVER MTD-751P20248
...
66
DOWEL PIN MTD-715-04102
...
67
CRANKCASE COVER GASKET MTD-951-15455A
...
68
BALL BEARING MTD-951-15456
...
69
CRANKSHAFT ASSEMBLY MTD-951-14218
...
70
WOODRUFF KEY MTD-751P10307A
...
71
WASHER MTD-736-04476
...
72
CAMSHAFT MTD-951-11959B
...
73
BOLT M6-1 x 18 GR8.8 MTD-710-05003
...
74
DIPSTICK OIL ASSEMBLY MTD-951-05391A
...
75
O-RING MTD-921-04663A
...
76
O-RING MTD-951-15459
...
77
OIL DRAIN PLUG MTD-951-05392A
...
78
OIL PLUG MTD-751P15462A
...
79
O-RING MTD-951-11960
...
80
DOWEL PIN 9 X 14 MTD-715-04096A
...
81
BALL BEARING MTD-951-15463
...
82
BALANCE GEAR ASSEMBLY MTD-951-11968
...
83
FUEL TANK BACK PANEL MTD-951-15464
...
84
FUEL TANK MTD-651P06335
...
85
THREADED TAB MTD-951-15465
...
86
BUSHING MTD-951-15466
...
87
BOLT MTD-710-06537
...
88
FUEL CAP MTD-951-15172A
...
89
BOLT M8-1.25 x 14 GR8.8 MTD-710-04921
...
90
FUEL TANK BASE BRACKET MTD-951-15475
...
91
FUEL TANK FRONT PANEL MTD-951-15474A
...
92
QUICK DISCONNECT FUEL LINE MTD-751P20250
...
93
FUEL HOSE 8 x 14 x 290 MTD-751P20251
...
94
CLAMP MTD-751P20252
...
95
FUEL TANK MOUNTING BRACKET MTD-951-05395
...
96
RUBBER GROMMET MTD-951-15469
...
97
RUBBER GROMMET MTD-951-15470
...
98
FUEL TANK MOUNTING BRACKET MTD-951-15471
...
99
GOVERNOR GEAR BRACKET MTD-751P20253
...
100
BOLT M8-1.25 x 55 GR8.8 MTD-710-04967
...
101
SCREW MTD-751-15472
...
102
BOLT M6-1 x 25 GR8.8 MTD-710-04919
...
103
REGULATOR MTD-751P20254
...
104
SUPPORT CLAMP MTD-951-15645
...
105
ELECTRIC STARTER MTD-951-15492
...
106
OIL SEAL MTD-951-11499A
...
107
ALTERNATOR WIRE CLAMP BRACKET MTD-951-11186
...
108
BOLT M6-1 x 8 GR8.8 MTD-710-04966
...
109
CRANKCASE MTD-751P20255
...
111
OIL DRAIN PIPE MTD-951-11350
...
112
FLAT WASHER MTD-736-04440A
...
113
OIL DRAIN PLUG MTD-710-04906
...
114
IGNITION COIL MTD-751P22816
...
115
CHARGING COIL MTD-751P20257
...
116
BOLT-M6-1 x 30 GR8.8 MTD-710-04969
...
117
FLYWHEEL MTD-751P20258
...
118
COOLING FAN MTD-951-11313A
...
119
STARTER CUP MTD-951-11314
...
120
FLYWHEEL NUT M16X1.5 MTD-712-05169
...
122
RECOIL START MTD-751P20262
...
123
BLOWER HOUSING MTD-751P20263
...
124
RECOIL START ASSEMBLY MTD-951-05397A
...
125
FLAT WASHER MTD-736-04455B
...
126
BOLT M6 x 10 MTD-710-06354
...
127
FUEL LINE ASSEMBLY MTD-751P20268
...
xx
COMPLETE ENGINE 357cc MTD-952Z983-WU
...
xx
CYLINDER HEAD MTD-651P07655
...
xx
LONG BLOCK MTD-651P07656
...
xx
GASKET KIT (EXTERNAL) MTD-651P07657
...
xx
GASKET KIT (INTERNAL) MTD-651P07658
...
...
...
