Troy-Bilt 8655R 5hp-22" Self Propelled (S/N B440400101-UP) Mulching Mower

Model: 8655R 5HP-22"" (S/N B440400101-UP)

Save
 Part Not Listed?Part Not Listed?
product name

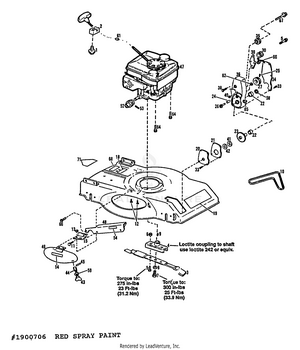

ENGINE AND GEAR CASE

...
...
1
SCR-HFLK 1/4-20X1.0 THFRM {NOT 8656R} MTD-1763187
...
2
GUIDE-ROPE {NOT 8656R} MTD-1761764
...
3
MULCHING BLADE 22" LG MTD-1755990-0637
...
4
ASSM-BLADE COUPLING LOCTITE COUPLING TO SHAFT USE LOCTITE 242 OR EQUIVELENT. MTD-1763039
...
5
SCREW 3/8-16 x 1 GR5 TORQUE TO: 275 IN.-LBS. 23FT.-LBS. (31.2 NM) MTD-710-0514
...
6
Hex Lock Nut, 3/8-16 MTD-712-3000
...
7
SCR-SHOULDER TORQUE TO: 300IN.-LBS., 25 FT.-LBS. (33.9 NM) MTD-1894062
...
8
Lock Washer, 1/2 MTD-736-0921
...
9
KEY-WOODRUFF MTD-1185885
...
10
BELT-DRIVE MTD-1755565
...
11
SCR-SHOULDER MTD-1756544
...
12
SCR-CARR 1/4-20X.375 MTD-1186068
...
13
NUT-HF/LK 1/4-20 ZP MTD-1186389
...
14
DECAL-CAUTION MTD-1755985
...
15
BRKT-SUPPORT MTD-1755558001
...
18
DECAL-CUTTING HEIGHT MTD-1758094
...
19
DECAL-LOGO MULCHER 22" MTD-1764713
...
20
COVER-GEAR CASE BOTTOM MTD-1894230001
...
21
GASKET-GEAR CASE MTD-1894231
...
22
BEARING-BRONZE MTD-1185319
...
23
ASSM-GEAR SHAFT MTD-1761969
...
24
BEARING-BRONZE MTD-1758230
...
25
PIN-DRIVE .218X1.12 MTD-1185271
...
26
ASSM-STEEL PINION SHAFT MTD-1758050
...
27
SHEAVE MTD-1758229
...
30
IDLER-FLAT MTD-1752988
...
33
SCR-HW M10-24X.5 STH ZP MTD-1186009
...
34
GEAR COVER MTD-1722468001
...
35
SHEAVE MTD-1761754
...
36
ASSM-GEAR CASE MTD-1761625001
...
38
SCR-SHOULDER MTD-1894301
...
39
ASSM-IDLER ARM MTD-1757745
...
40
Push Cap MTD-726-0100
...
41
FLAT WASHER .760ID X1.49OD x .06 MTD-736-0188
...
42
WASHER-FELT MTD-1894232
...
43
PIN-CHUTE LOCK MTD-1894076
...
44
SPRING-COMPRESSION MTD-1894318
...
45
PIN-ROLL .093 DIAX.62 MTD-1185479
...
46
COVER-DISCHARGE W/DECAL (INCL. 12-14,43-45, 59) MTD-1762064
...
47
B & S ENG, 4.0 HP #122782 RCL STRT (8654R MDL) ORDER PARTS FROM YOUR LOCAL BRIGGS &STRATTON ENGINE DEALER -REFER TO ENGINE FOR MODEL NUMBER, TYPE NUMBER AND CODE. MTD-NA
...
47
B & S ENG. 5.0 HP #124782 RCL STRT (8655R MDL) ORDER PARTS FROM YOUR LOCAL BRIGGS &STRATTON ENGINE DEALER -REFER TO ENGINE FOR MODEL NUMBER, TYPE NUMBER AND CODE. MTD-NA
...
47
B & S ENG, 5.0 HP #124787 ELEC STR (8656R MDL) ORDER PARTS FROM YOUR LOCAL BRIGGS &STRATTON ENGINE DEALER -REFER TO ENGINE FOR MODEL NUMBER, TYPE NUMBER AND CODE. MTD-NA
...
48
ASSM-BELT COVER MTD-1764438001
...
52
SHEAVE MTD-1756806
...
53
Pin, Spring, 3/16 x 1.25 MTD-915-0246
...
54
DECAL-FRONT WHEEL DRIVE MTD-1763874
...
58
RING-GRIP MTD-1725197
...
59
Washer MTD-736-0159
...
60
SPRING-TORSION MTD-1757640
...
61
STOP-STARTER ROPE {NOT 8656R} MTD-1746425
...
62
WASHER-SHIM MTD-1185831
...
64
SCR-HH 3/8-16X1.0 THDFM MTD-1762042
...
65
Grease Fitting MTD-937-0146
...
66
SCR-FLANGE 1/4-20X3/4 GR5 MTD-1754128
...
67
Hex Cap Screw 5/16-18 x .875 MTD-710-3038
...
68
DECAL-U.S.A. MTD-1900333
...
71
DECAL-OPEI CAUTION {NOT 8656R} MTD-1739687
...
xx
SPRAY PAINT, TROY-BILT RED, 13OZ. MTD-1909706
...
xx
Loctite 242, 0.02 oz. Tube MTD-GW-97092
...
xx
PAINT-RED SPRAY 13OZ. MTD-788-0638A

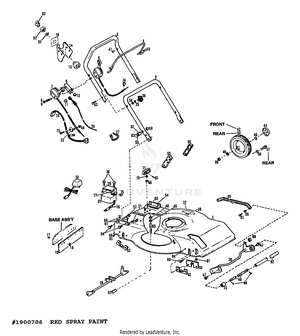

MAIN ASSEMBLY

...
...
1
ASSM-BASE W/DECAL 22"MLCH W/REF. #'S 17,18,19,37-P.5,64 MTD-1763880
...
2
HANDLE-LOWER MTD-1761103001
...
3
HANDLE-UPPER MTD-1761100001
...
4
ASSM-BAIL ENGINE CONTROL MTD-1761104001
...
5
SUPPORT-CONTROL MTD-1756147001
...
6
CONTROL-THROTTLE MTD-1761099
...
7
CONTROL-CLUTCH MTD-1769342P
...
8
SCR-HH SEMS MTD-1756148
...
8
SCR-HHS {8656} MTD-1756179
...
9
Hex Sems Nut, 10-24 MTD-712-0272
...
10
GRIP-HANDLE MTD-1751526
...
11
PUSH NUT MTD-726-0135
...
12
RING-GRIP EXT .312 ID MTD-1747236
...
13
Ignition Switch MTD-1900455P
...
14
SUPPORT-SWITCH {8656R} MTD-1756178001
...
15
HARNESS-WIRE {8656R} MTD-1761634
...
16
DECAL-ELEC START MTD-1756233
...
17
RIVET-POP MTD-1739918
...
18
WASHER-.88X.2X.059 MTD-1736359
...
19
SHIELD-DEFLECTOR MTD-1755562
...
20
FRONT AXLE ASSEMBLY MTD-NA
...
20
KIT-AXLE ASM FRNT S/N 340140400101-340140499999 S/N 340150400101-340150499999 S/N 340160400101-340160499999 S/N B310300101-B310499999 S/N B330300101-UP S/N B440400101-UP S/N B450400101-UP S/N B460400101-UP S/N B470200101-UP MTD-1763088001
...
20
ASSM-FRONT AXLE S/N 340140500101-340140599999 S/N 340150500101-340150599999 S/N 340160500101-340160599999 MTD-1755530001
...
21
CLUTCH CABLE BRACKET MTD-NA
...
21
BRKT S/N 340140400101-340140499999 S/N 340150400101-340150499999 S/N 340160400101-340160499999 S/N B310300101-B310499999 S/N B330300101-UP S/N B440400101-UP S/N B450400101-UP S/N B460400101-UP S/N B470200101-UP MTD-1763816
...
21
BRKT S/N 340140500101-340140599999 S/N 340150500101-340150599999 S/N 340160500101-340160599999 MTD-1756662001
...
22
CLAMP-POWDEN WIRE MTD-1759076
...
23
BUSHING-AXLE MTD-1764050
...
24
Hex Bolt, 3/8-16 x 3/4" MTD-710-0216
...
26
ASSM-AXLE REAR MTD-1762885001
...
27
7" CABLE TIE MTD-725-0157
...
28
CABLE-ENGINE BRAKE MTD-1761097
...
29
CLAMP-BATTERY {8656R} MTD-1756551001
...
30
SCR-FLANGE 1/4-20X3/4 GR5 MTD-1754128
...
31
KIT-BATTERY REPLACE MTD-1903686
...
32
CHARGER-ELEC BATTERY {8656R} MTD-1733251
...
33
PLATE-DOUBLER MTD-1761028
...
34
LOCK WASHER 5/16 MTD-936-0119
...
35
FLAT WASHER MTD-736-0275
...
36
KNOB MTD-1763767
...
37
DECAL-OPEI CAUTION {8656R} MTD-1739687
...
38
DECAL-INDICATOR MTD-1761554
...
41
BEARING-FLANGED MTD-1747499
...
42
TIRE/WHEEL FRONT F/TB MULCH MW MTD-1762021
...
43
CAP-HUB T/B MULCHERS MTD-1762241
...
44
Cotter Pin MTD-714-0474
...
46
Flat Washer MTD-GW-20546
...
47
BEARING-AXLE MTD-1760842
...
48
AXLE-DRIVE S/N 340140400101-340140499999 S/N 340150400101-340150499999 S/N 340160400101-340160499999 S/N B310300101-B310499999 S/N B330300101-UP S/N B440400101-UP S/N B450400101-UP S/N B460400101-UP S/N B470200101-UP MTD-1764637
...
48
AXLE-DRIVE S/N 340140500101-340140599999 S/N 340150500101-340150599999 S/N 340160500101-340160599999 MTD-1755524
...
49
NUT-HFLK 10-24 MTD-1186387
...
50
ASSM-TIRE & WHEEL MTD-1761981
...
51
SCR-SHLDR 3/8-16 MTD-1763219
...
52
SPRING-COMPRESSION MTD-1755406
...
53
SPACER MTD-1755407
...
54
BRKT-HANDLEBAR MTD-1755402001
...
55
SUPPORT-HANDLE RH MTD-1755403001
...
56
SUPPORT-HANDLE LH MTD-1755404001
...
57
Hex Lock Nut, 3/8-16 MTD-712-3000
...
58
NUT-HFT/LK MTD-1744708
...
60
Bolt, Carriage, 5/16-18, .62, Gr5 MTD-710-0260A
...
61
NUT-HFLK 5/16-18 ZP MTD-712-04054
...
62
BRACKET-AXLE MTD-1743277
...
65
SCR-ADJ MTD-1762881
...
66
PIN-ROLL .188X1.0 MTD-1120210
...
70
SPACER-HANDLE MTD-1762886
...
71
HANDLE-HEIGHT ADJ MTD-1754149
...
73
SCR-HW M10-24X.88 EXTTOOTH MTD-1752461
...
74
7" CABLE TIE MTD-725-0157
...
75
CLAMP-WIRE {8656R} MTD-1740012
...
76
DECAL-CHARGING INST {8656R} MTD-1756582
...
77
PAD-BATTERY {8656R} MTD-1756549
...
80
LINK-HEIGHT ADJUST MTD-1761027001
...
81
SCR-SHOULDER MTD-1760971
...
82
TUBING-PLASTIC MTD-1736069
...
83
SCREW 5/16-18 x 2.0 MTD-710-1174
...
84
SCR-TRUSS HD 5/16-18X.62 MTD-1185872
...
86
BEARING-NYLINER MTD-1761046
...
87
PIVOT-ADJUSTING SCR MTD-1762882
...
88
NUT-HFLK 3/8-16 ZP MTD-1186393
...
89
NUT, HEX JAM 5/16-18 MTD-NA
...
89
Jam Nut, 5/16-18 S/N 340140400101-340140499999 S/N 340150400101-340150499999 S/N 340160400101-340160499999 S/N B310300101-B310499999 S/N B330300101-UP S/N B440400101-UP S/N B450400101-UP S/N B460400101-UP S/N B470200101-UP MTD-712-3007
...
90
Washer, Spec .378 x 1.0 x .125 Thk MTD-936-0206
...
91
LOCK WASHER 5/8 MTD-736-0225
...
92
Hex Nut 5/8-32 x .12 Special MTD-712-0252
...
93
KEY-IGNITION MTD-1753986
...
xx
PAINT-RED SPRAY 13OZ. MTD-788-0638A
...
...
...
