Troy-Bilt 52063 5hp Recoil Start (2000) Trimmer

Model: 52063 5HP Recoil Start (2000)

Save
 Part Not Listed?Part Not Listed?
product name

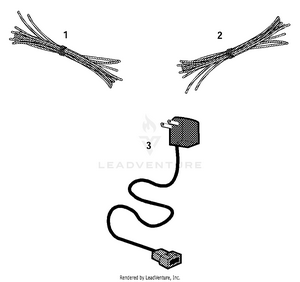

Accessories And Kits

...
...
1
Trimmer Line.155 (Incl. 10 pieces) Not included with unit, order separately. MTD-OEM-743-0112
...
2
.130 Dia. x 18'' Trimmer Line 10-Pack Not included with unit, order separately. MTD-OEM-743-0113
...
3
BATTERY CHARGER MTD-725-13345

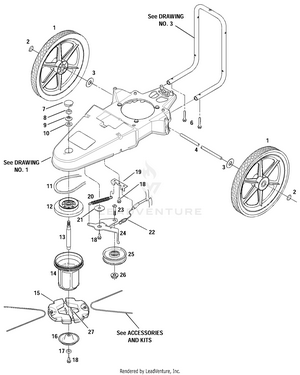

Drive

...
...
1
Wheel/Tire Assembly MTD-1917778
...
2
Speed Nut, .500 MTD-726-0221
...
3
Flat Washer MTD-1917775
...
4
Axle MTD-1917258
...
6
Self-Tap Screw, 5/16-18 x 2 MTD-1918069
...
7
Cap Plug MTD-1917588
...
8
Hex Lock Nut, 1/2-13 MTD-712-3022
...
9
WASHER-disc spring (concave). Dome side of washer faces bolt head MTD-GW-9928
...
10
Hardened Washer MTD-1917745
...
11
V-Belt 52.88 Lg x .500 MTD-1917579
...
12
Spindle Head Adapter (Incl. Bearing) MTD-1918246
...
13
Spindle Shaft MTD-1917581
...
14
Spindle Head Assembly (Incl. Bearing, Insert, and Refs. 16, 17, 18) MTD-1918329
...
15
Trimmer Head (Incl. Ref. 27) MTD-1918879
...
16
Wear Cup MTD-1915220001
...
17
Square Washer MTD-1917599
...
18
SCREW 5/16-18 x .750 MTD-710-1260A
...
19
Cable Bracket MTD-1917573
...
20
Idler Spring MTD-1910849
...
21
Forward Idler Pivot Spacer MTD-748-04087A
...
22
CLUTCH CABLE CONTROL MTD-1917589P
...
23
Button Hd. Screw, 3/8-16 x 1-1/2 MTD-1910857
...
24
Idler Arm MTD-1917572
...
25
Idler Pulley MTD-1910855
...
26
Flange Lock Nut, 3/8-16 MTD-1186393
...
27
Rubber Shim Kit (2 shims per kit) MTD-1918332

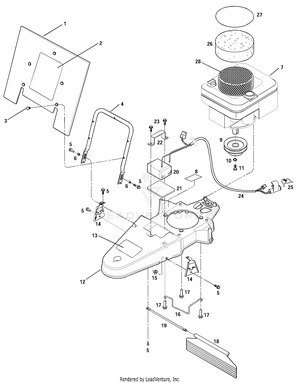

General Assembly

...
...
1
Debris Guard MTD-1917765
...
2
Decal-Logo Model 52064 MTD-1918082
...
xx
Decal-Logo Model 52063 MTD-1904401
...
3
Push-in Fastener MTD-1915290
...
4
Debris Guard Support MTD-1917407001
...
5
Hex Flange Screw, 1/4-20 x 3/4 MTD-1754128
...
6
Spacer MTD-1915320
...
7
Engine Order parts from your local authorized engine dealer. Refer to engine for model/type number. MTD-NA
...
8
Decal-Hot Surface Warning MTD-1904511
...
9
Engine Pulley MTD-1917728
...
10
L-Wash. 3/8" I.D. MTD-736-0169
...
11
SCREW 3/8-24 X 1.00 GR8 MTD-710-1039
...
12
Deck (Incl. Ref. 13) MTD-1918228
...
13
Decal-Warning MTD-1918115
...
14
Hood Bracket MTD-1917144001
...
15
Flange Lock Nut, 1/4-20 MTD-1186389
...
16
Belt Guide MTD-1917574
...
17
TT Sems Screw 3/8-16 x 1.5 MTD-710-1007
...
18
Deflector Flap MTD-1917154
...
19
Rod MTD-1917155
...
20
Battery Model 52063 MTD-1909647
...
21
Battery Pad Model 52063 MTD-1915268
...
22
Battery Clamp Model 52063 MTD-1915204001
...
23
SCREW 5/16-18 x 1.00 Model 52063 MTD-710-0602
...
24
Wire Harness Model 52063 MTD-1918055
...
25
Key Model 52063 MTD-925-0201
...
26
Engine Debris Guard/Foam MTD-BS-693514
...
27
O-Ring MTD-1915304
...
28
Engine Debris Guard (plastic) MTD-1916571

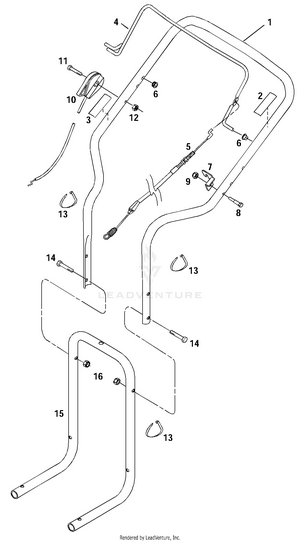

Handle

...
...
1
Upper Handlebar (Incl. Refs. 2 & 3) MTD-1918283
...
2
Decal-Bail Engage/Disengage MTD-1915889
...
3
Decal-Throttle MTD-1918304
...
4
Control Bail-Trimmer Head MTD-1918070001
...
5
CLUTCH CABLE CONTROL MTD-1917589P
...
6
Bushing MTD-1908677
...
7
Cable Bracket MTD-1749977001
...
8
Hex Hd. Screw, 1/4-20 x 1-1/8 MTD-1983658
...
9
Hex Lock Nut MTD-712-0324
...
10
Throttle Lever & Cable Assembly MTD-1918081
...
11
Hex Hd. Screw, 1/4-20 x 2 MTD-1100807
...
12
Hex Lock Nut, 1/4-20 MTD-1110106
...
13
7" CABLE TIE MTD-725-0157
...
14
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
15
Handlebar Support MTD-1917145001
...
16
Hex Lock Nut, 5/16-18 MTD-1732499
...
...
...
