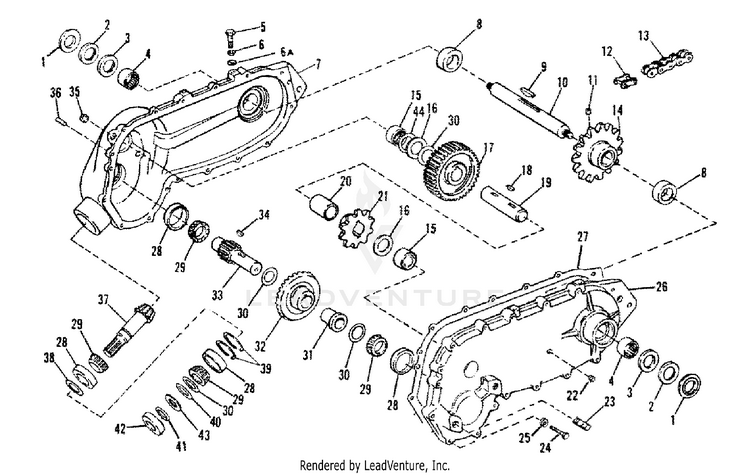

Gear Case Assembly

...
...
1
Seal Washer MTD-1718153
...
2
OIL SEAL -TILLERSHA MTD-GW-9618099
...
3
Oil Seal 1.25" I.D. x 2.004"O.D. MTD-721-0110
...
4
Needle Bearing MTD-1185721
...
5
SCREW 1/2-13 x 1.25 GR5 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-710-3032
...
6
Lock Washer, 1/2 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-0921
...
6A
UNKNOWN MTD-NA
...
7
Tiller Case (Included with Ref#. No. 28) MTD-1729249
...
8
WASHER-THRUST 2X1.27X.433 MTD-1723961
...
9
KEY-HI PRO .31X2.0 MTD-1723622
...
10
Tine Shaft MTD-1727908
...
11
Set Screw, 3/8-16 x 1/2 MTD-1103494
...
12
Connector, Roller Chain MTD-1718152
...
13
Roller Chain, 1 Pitch MTD-1718151
...
14
Sprocket, 15 Tooth 1" Pitch MTD-1721591
...
15
Needle Bearing MTD-1185720
...
16
THRUST WASHER MTD-1723960
...
17
Gear, 39 Tooth MTD-1718393
...
18
KEY-.312 SQ X 1.063 MTD-1723959
...
19
SHAFT MTD-1723955
...
20
SPACER-1.3 MTD-1723956
...
21
Sprocket, 10 Tooth 1" Pitch MTD-1718147
...
22
PIPE PLUG 1/8-27 HEX SOC MTD-737-04178
...
23
Stud MTD-1113755
...
24
Screw-Hex 5/16-18 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-710-0395
...
25
LOCK WASHER 5/16 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-936-0119
...
26
Gear Case Cover (included with Ref. No. 28) MTD-1729283
...
27
Gasket MTD-1718389
...
28
Bearing Cup MTD-1177343
...
29
Bearing Cone MTD-1177262
...
30
Shim, .005 MTD-1718781
...
31
SPACER-1.6 MTD-1723954
...
32
Bevel Gear, 40 Tooth MTD-1718391
...
33
Pinion and Shaft MTD-1723953
...
34
Woodruff Key, 1/4 x 1 MTD-1708382
...
35
Pipe Plug MTD-1105678
...
36
Drive Pin MTD-1185206
...
37
Pinion, 13 Tooth MTD-1718390
...
38
Shim, .005 MTD-1719443
...
39
Retaining Ring MTD-1185733
...
40
FLAT WASHER 1.25 ID x 2.0 OD x .060 MTD-736-0246
...
41
Retaining Ring MTD-1185732
...
42
Oil Seal MTD-1185734
...
43
Thrust Race MTD-1732288
...
44
Shim, .020 MTD-1719271
...
?45
Flat Washer,.510 x 1.00 MTD-736-0326
...
xx
Gear Lube EP90 16 oz. Tube NI MTD-1700182
...
xx
MTD-NA

General Assembly

...
...
1
Hood, Right Side MTD-1723035
...
2
Carriage Bolt, 3/8-16 x 314 Sh. Neck MTD-1739656
...
3
CARRIAGE BOLT 3/8-16 x 1.00 GR5 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-710-3168
...
4
Decal (Logo) MTD-1745889
...
5
L-Wash. 3/8" I.D. Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-0169
...
6
Hex Lock Nut, 3/8-16 MTD-712-3000
...
7
HINGE PIN MTD-1723031
...
8
Cotter Pin, 3/32 x .75 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-914-0507
...
9
CARRIAGE BOLT 5/16-18 x .75 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-710-0451
...
10
Hinge MTD-1718196
...
11
Leveling Board MTD-1723504
...
12
SCREW 1/2-13 x 1.25 GR5 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-710-3032
...
13
NUT-HFLK 5/16-18 ZP Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-712-04054
...
14
Hood MTD-1729229
...
15
DECAL-OPEI CAUTION {8656R} MTD-1739687
...
16
Support Assembly MTD-1729222
...
17
Hitch Arm Assembly MTD-1744960
...
18
Hood, Left Side MTD-1723034
...
19
Pin, Cotter, 1/8 x 1.00 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-714-0115
...
20
Clevis Pin MTD-1186431
...
21
Shoe Center MTD-1718189
...
22
PIN-CLIP Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1717897
...
23
HEX NUT Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-712-0206
...
24
Lock Washer, 1/2 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-0921
...
25
Nut, 3/8-16 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1186259
...
26
Tiller Hub MTD-1727907
...
27
Bend Tire, Left Hand MTD-1709388
...
28
SCREW 3/8-16 x 1.25 GR5 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-710-3005
...
29
Capscrew, 1/2-13 x 1-3/4 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1100065
...
30
Spacer MTD-1718138
...
31
TINE MTD-1709387001
...
32
Lock Nut, 5/8-18 MTD-1186435
...
33
Spacer Washer MTD-1718765
...
34
Special Washer MTD-1800041
...
35
Sleeve MTD-1718170
...
36
Nut, 5/8 Jam Type 5 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-712-3015
...
37
Lockwasher, 5/8 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1100247
...
38
Flange Nut 3/8-16 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1186393
...
39
Flange Screw 3/8-16 x 1-3/4 MTD-1186350
...
40
Cable Anchor Bracket MTD-1744953
...
41
Lift, Bracket MTD-1744954
...
42
HEX NUT 5/16-18 MTD-712-3010
...
43
FLAT WASHER MTD-736-0275
...
44
Flat Washer,.510 x 1.00 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-0326
...
45
Drive Shaft Assembly (Included with Ref. Nos. 46 thru 50) MTD-1744925
...
46
Groove Pin, 3/16 x 1/2 MTD-1118922
...
47
WASHER-THRUST MTD-1725334
...
48
RETURN SPRING MTD-1862341
...
49
Groove Pin, 3/16 x 3/8 MTD-1187762
...
50
Locking Collar MTD-1862340
...
51
EYE-BOLT MTD-1725199
...
52
Pipe Plug MTD-1105678
...
53
Shakeproof Washer, 3/8 MTD-1104008
...
54
SCREW 3/8-16 x 1 GR5 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-710-0514
...
55
Extension Spring MTD-1714844
...
56
Support Bracket L.H. MTD-1723029
...
57
Support Bracket R.H. MTD-1729239
...
58
Hitch Arm Assembly R.H. MTD-1733855
...
59
Spring support MTD-1744928
...
60
Eye Bolt MTD-1744929
...
61
Plate MTD-1744961
...
62
Flat Washer,.510 x 1.00 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-0326
...
63
Lift Cable MTD-1744967
...
64
HITCH PIN MTD-1723478
...
65
Lift Arm Assembly MTD-1744936
...
66
Hex Flange Screw, 3/8-16 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-710-04042
...
67
Cable Guide (Hydra Models) MTD-1731956
...
68
Cable Guide (Gear Models) MTD-1746225
...
69
Flat Washer, .406 x 1.0 x .105 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-3052
...
70
Hex Cent. L-Nut 3/8-16 Thd. Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-712-0375
...
71
Clevis Pin MTD-1730851
...
72
Clevis Pin MTD-1890227
...
73
Roller MTD-1734508
...
74
Spacer MTD-1734509
...
75
Spring Bracket MTD-1730596
...
76
Yoke Assembly MTD-1734192
...
77
Pin, 5/8 X 2.000 Pln Clevis MTD-711-0174
...
78
Hex Lock Nut, 1/2-13 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-712-3022
...
79
Hex Screw 1/2-13 x 2-1/2 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1100056
...
80
Spacer (Hydra Models) MTD-1744899
...
81
Cable Retainer (Hydra Models) MTD-1744952
...
82
Arm Support MTD-1744955
...
83
Flat Washer MTD-1185847
...
84
SCREW 1/2-13 x 1.25 GR5 MTD-710-3032
...
85
Hitch Arm Assembly L.H. MTD-1733854
...
90
Lock Washer, 1/2 MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-0921
...
?91
L.H. Bend Tine MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-1709388
...
92
Spacer MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-1718138
...
93
TINE MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-1709387001
...
94
NUT-HFLK 5/16-18 ZP MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-712-04054
...
?95
HEX NUT MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-712-0206
...
96
Hex Head Capscrew, 1/2-13 x 1-3/4 MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1100065
...
97
Hood Extension MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-1729028
...
98
Carriage Bolt, 5/16-18 x 3/4 MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1186098
...
99
Hex Cent. L-Nut 3/8-16 Thd. MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-712-0375
...
100
SCREW 3/8-16 x 1.25 GR5 MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-710-3005
...
?101
Connector MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-1718207
...
102
Hinge Pin MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-1718199
...
103
Leveling Board Extension MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-1729030
...
104
Hinge MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-1718197
...
105
Cotter Pin, 3/32 x .75 MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-914-0507
...
xx
Spray Paint, Dark Green NI; MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-160305
...
...
...
