Troy-Bilt 5019 3hp-20" Self Propelled Scissor Cut Mower

Model: 5019 3HP-20"" SELF-PROPELLED

Save
 Part Not Listed?Part Not Listed?
product name

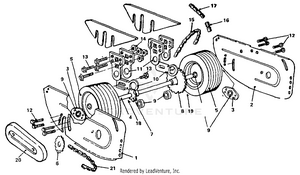

DROP OUT REAR AXLE

...
...
1
SIDEPLATE (RIGHT) MTD-R5001
...
2
SIDEPLATE (LEFT) MTD-R5002
...
3
SIDEPLATE BEARING RETAINER MTD-R5003
...
4
REAR AXLE (20") MTD-R5004
...
4
REAR AXLE (25") MTD-R5004-A
...
5
REAR WHEELS (20") W/BEARINGS - EA. MTD-R5005
...
5
REAR WHEELS (25") W/BEARINGS - EA. MTD-R5005-A
...
6
SPROCKET (17 TEETH) MTD-R5006
...
7
SPROCKET (8 TEETH) MTD-R5007
...
8
SPROCKET (30 TEETH) MTD-R5008
...
9
SEALED BEARING (8 REQ.) MTD-R1108
...
10
ROLLER BRACKET SUPPORTS MTD-R5010
...
11
AXLE HANGERS MTD-R5011
...
12
5/16-18x1/2 BOLT MTD-R1033
...
13
5/16-24x7/8 BOLT MTD-R1074
...
14
5/16-24 NUT MTD-R1075
...
15
ROLLER DRIVE CHAIN - 46 PITCH MTD-R1056
...
16
2-LINK #41 CHAIN W/MASTER LINK MTD-R5016
...
17
4-LINK #41 CHAIN W/MASTER LINK MTD-R5017
...
18
SPACER (20") - RIGHT MTD-R5018
...
18
SPACER (25") - RIGHT MTD-R5018-A
...
19
SPACER (20") - LEFT MTD-R5019
...
19
SPACER (25") - LEFT MTD-R5019-A
...
20
CHAIN GUARD MTD-R1094
...
21
SIDEPLATE CHAIN MTD-R1092

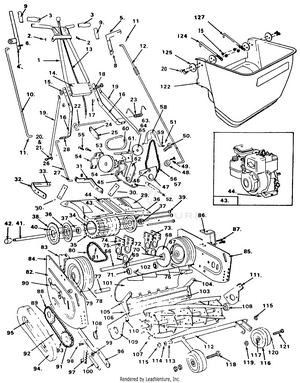

MAIN ASSEMBLY

...
...
1
HANDLE W/BEARING MTD-R1001
...
2
HANDLE BEARINGS ONLY MTD-R1002
...
3
HANDLE GRIPS (2 REQ.) MTD-R1003
...
4
DRIVE CONTROL LEVER MTD-R1004
...
5
CLUTCH CONTROL LEVER MTD-R1005D
...
6
BOLT 7/16" x 1-1/4" (2 REQ.) L & R STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1006
...
?7
PLASTIC WASHER (2 REQ.) L & R MTD-R1007
...
8
LOCK NUTS 7/16"-14 (2) L & R STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1008
...
9
DRIVE & CLUTCH LEVER GRIPS MTD-R1009
...
10
DRIVE CONTROL ROD MTD-R1010
...
11
COTTER PINS 1/8" x 1/2" (3 REQ.) STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1011
...
12
CLUTCH CONTROL ROD MTD-R1012D
...
13
THROTTLE CONTROL ASSEMBLY MTD-R1013
...
14
HANDLE BRACE PLATE MTD-R1014
...
15
1/4"-28 NUTS (6 REQ.) STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1015
...
16
LOWER HANDLE W/BEARING (2 REQ.) MTD-R1016
...
17
BEARINGS ONLY MTD-R1002
...
18
1/4"-28 X 7/8" BOLTS (6 REQ.) STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1018
...
19
HANDLE BRACE (2 REQ.) L & R MTD-R1019
...
20
1/4"-28 X 5/8" BOLT (2 REQ.) L & R STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1020
...
21
1/4"-28 NUTS (2 REQ.) L& R STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1015
...
22
DRIVE PIVOT ROD MTD-R1022
...
23
DRIVE PIVOT SPRING MTD-R1023
...
24
DRIVE PIVOT ARM MTD-R1024
...
25
SET SCREW 3/8"-16 X 1/2" SQUARE HEAD STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1025
...
26
LOWER DRIVE CONTROL ROD MTD-R1026
...
27
COTTER PIN 1/8" X 1/2" STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1027
...
28
5/16"-18 X 3/4" BOLTS (4 REQ.) L & R STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1028
...
29
DECK MTD-R1029
...
30
HANDLE BRACKETS (2 REQ.) MTD-R1030
...
31
ROLLER SUPPORT BRACKET WITH BEARING MTD-R1031
...
32
ROLLER SUPPORT BRACKET MTD-R1032
...
33
5/16"-18 X 1/2" (2 REQ.) STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1033
...
34
ROLLER DRIVE TUBE MTD-R1034
...
35
ROLLER DRIVE TIRES (5 REQ.) MTD-R1035
...
36
ROLLER END CAPS (2 REQ.) MTD-R1036
...
37
END CAP BEARINGS (2 REQ.) MTD-R1037
...
38
ROLLER DRIVE SPROCKET (30 TEETH) MTD-R1038
...
39
ROLLER DRIVE BOLTS (3 REQ.) MTD-R1039
...
40
1/4"-28 DRIVE NUTS (3 REQ.) STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1015
...
41
ROLLER DRIVE SHAFT MTD-R1041
...
42
SPACER MTD-R1042
...
43
ENGINE, 3 HP MODEL 80202-1676-02 MTD-R1043
...
44
5/16" X 24 X 1-1/2" BOLTS (4 REQ.) STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1044
...
45
MAIN CLUTCH BODY MTD-R1045D
...
46
CLUTCH BEARING MTD-R1046D
...
47
BELT IDLER ARM MTD-R1047D
...
48
IDLER BEARING (CONCAVE) MTD-R1048D
...
49
3/8"-16 X 1/2" FLAT HEAD PHILLIPS HEAD SCREW STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1049
...
50
7/16"-14 X 1-1/4" BOLT STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1006
...
51
WASHER 7/16" MTD-R1051
...
52
CLUTCH SPRING/W SPRING PLATE MTD-R1052D
...
53
JACK SHAFT WITH PULLEY & SPROCKET MTD-R1053
...
54
JACK SHAFT HOUSING (2 REQ.) MTD-R1054
...
55
5/16"-18 X 3/4" BOLTS (4 REQ.) STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1028
...
56
CLUTCH DRIVE CHAIN - NO. 41 X 44 PITCH MTD-R1056
...
57
CONNECTING LINK FOR NO. 41 CHAIN STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1057
...
58
CLUTCH CHAIN GUARD MTD-R1058
...
59
5/16"-18 X 1/2" BOLT STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1033
...
60
CLUTCH BELT MTD-R1060
...
61
BELT GUARD MTD-R1061
...
62
5/16"-18 X 3/8" BOLT STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1062
...
63
ENGINE PULLEY MTD-R1063
...
64
KEY FOR ENGINE PULLEY SHAFT 3/16" X 3/16" X 5/8" STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1064
...
65
ALLEN SET SCREW 5/16"-24 X 5/16" MTD-R1065
...
66
REAR AXLE SHAFT MTD-R1066
...
67
RETAINER RING MTD-R1067
...
68
SPROCKET (30 TEETH WITH HUB) MTD-R1068
...
69
SPROCKET (8 TEETH WITH HUB) MTD-R1069
...
70
SET SCREWS 7/16"-20 X 7/16" HALF DOG (3 REQ.) STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1070
...
71
AXLE SUPPORT BEARING (2 REQ.) MTD-R1071
...
72
ROLLER BRACKET SUPPORTS (2 REQ.) MTD-R1072
...
73
AXLE HANGERS (4 REQ.) MTD-R1073
...
74
HANGER BOLTS 5/16"-24 X 7/8" (8 REQ.) STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1074
...
75
5/16"-24 NUTS (8 REQ.) STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1075
...
76
SPACER 1-1/16" MTD-R1076
...
77
SPACER 2-3/16" MTD-R1077
...
78
REAR WHEELS WITH BEARINGS (2 REQ.) MTD-R1078
...
79
REAR WHEEL BEARINGS WITH FLANGE (4 REQ.) MTD-R1037
...
80
ROLLER DRIVE CHAIN NO. 41-36 PITCH STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1080
...
81
CONNECTING LINK NO. 41 STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1057
...
82
SIDE PLATE WITH CHAIN GUARD BRACKET MTD-R1082
...
83
CATCHER HOOK BRACKET MTD-R1083
...
84
5/16"-18 X 3/4" (4 REQ.) STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1028
...
85
SIDE PLATE MTD-R1085
...
86
CATCHER HOOK BRACKET MTD-R1086
...
87
5/16"-18 X 3/4" (4 REQ.) STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1028
...
88
SPROCKET (17 TEETH) MTD-R1088
...
89
SET SCREWS 7/16"-20 X 7/16" HALF DOG (4 REQ.) MTD-R1070
...
90
5/16"-18 X 1/2" BOLTS (2 REQ.) STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1033
...
91
SPROCKET (13 TEETH) MTD-R1091A
...
92
REAL DRIVE CHAIN NO. 41-46 PITCH STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1092
...
93
CONNECTING LINK NO. 41 STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1057
...
94
CHAIN GUARD MTD-R1094
...
95
USE PART #1033 MTD-R1095
...
96
HEIGHT ADJUSTMENT LEVER MTD-R1096
...
97
HEIGHT ADJUSTMENT NOTCHED BRACKET MTD-R1097
...
98
SAME AS 1028 MTD-R1095
...
99
SPACER BUSHING MTD-R1099
...
100
HEIGHT ADJUSTMENT SPRING MTD-R1100
...
101
SHIELD MTD-R1101
...
101
SHIELD ASSEMBLY HARDWARE MTD-R1101A
...
102
5/16"-18 X 1/2" BOLTS (2 REQ.) STANDARD HARDWARE ITEMS, MAY BE PURCHASED LOCALLY. MTD-R1033
...
103
BED KNIFE MTD-R1103
...
104
SAME AS 1028 MTD-R1095
...
105
TAPERED BOLTS 5/16"-18 X 5/8" (6 REQ.) MTD-R1105
...
106
BUSHING FOR TAPERED BOLT (6 REQ.) MTD-R1106
...
107
REEL ASSEMBLY 6 BLADE MTD-R1107
...
108
REEL BEARINGS (2 REQ.) MTD-R1108
...
109
REEL BEARING RETAINER MTD-R1109
...
110
SAME AS 1033 MTD-R1095
...
111
REEL BEARING RETAINER MTD-R1111
...
112
FRONT WHEEL ASSEMBLY BAR MTD-R1112
...
113
TIE ROD MTD-R1113
...
114
PLASTIC WASHER MTD-R1007
...
115
7/16"-14 NUTS (2 REQ.) MTD-R1008A
...
116
FRONT WHEELS WITH BEARINGS MTD-R1116
...
117
FRONT WHEEL BEARINGS (2 REQ.) MTD-R1002
...
118
7/16"-14 X 3-1/2" BOLT MTD-R1118
...
119
7/16"-14 NUTS (3 REQ.) MTD-R1008
...
120
7/16" FLAT WASHER MTD-R1051
...
121
7/16"-14 X 3-1/4" BOLT MTD-R1121
...
122
PLASTIC GRASS CATCHER MTD-R1122
...
124
CATCHER HOOK MTD-R1124
...
125
WASHER MTD-R3065
...
127
CATCHER HOOK MTD-R1127
...
?128
1/4"-28 X 7/8" BOLT (4 REQ.) MTD-R1018
...
?129
1/4"-28 X 5/8" BOLT (2 REQ.) MTD-R1020
...
...
...
