Troy-Bilt 490-241-0009 Snow Thrower Light

Model: 490-241-0009 Snow Thrower Light

Save
 Part Not Listed?Part Not Listed?
product name

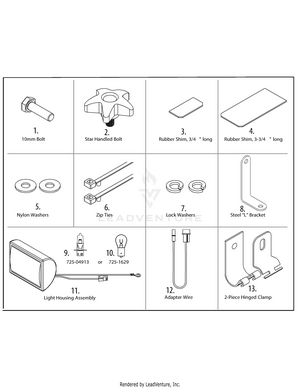

Service Parts

...
...
1
Bolt MTD-710-1313
...
2
Star Handled Bolt Not Available Separately, order 753-05959 MTD-NA
...
3
Rubber Shim 3/4" Long Not Available Separately, order 753-05959 MTD-NA
...
4
Rubber Shim 3-3/4" Long Not Available Separately, order 753-05959 MTD-NA
...
5
Nylon Washers Not Available Separately, order 753-05959 MTD-NA
...
6
7" CABLE TIE MTD-725-0157
...
7
Lock Washers MTD-936-0171
...
8
Steel "L" Bracket Not Available Separately, order 753-05959 MTD-NA
...
9
BULB MTD-925-04913B
...
10
Lamp MTD-925-1629
...
11
Light Housing Assembly MTD-925-04848
...
12
Adapter Wire For use on Tecumseh & Briggs Engines MTD-925-04872
...
13
2-Piece Hinged Clamp Not Available Separately, order 753-05959 MTD-NA
...
xx
Light Kit Complete MTD-490-241-0009
...
...
...
