product name

Troy-Bilt 41503 SPRAY BOOM Sprayer

Model: 41503 SPRAY BOOM

Save
 Part Not Listed?Part Not Listed?
product name

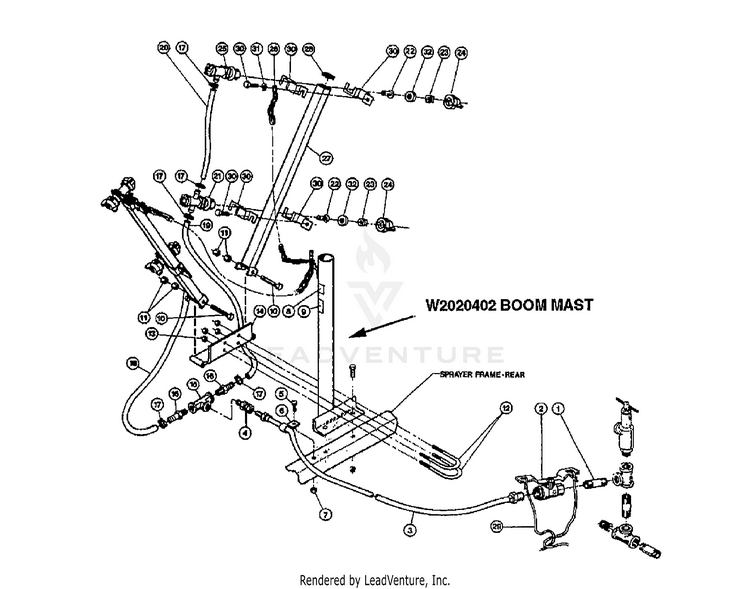

4 HEAD SPRAY BOOM - ACCESSORY

...
...
1
NIPPLE-PIPE 50X2 GALVANIZED MTD-W209810142
...
2
VALVE-BALL .5 WING HANDLE MTD-WT580
...
3
ASSM-44" HOSE W/CLAMPS W207566 MTD-W2075663
...
4
ADAPTER-.25FPT X .25NPT MTD-W20450404
...
5
Screw, #10-24 x 2 MTD-710-04163
...
6
CLAMP-HOSE NYLON MTD-W3329
...
7
SCR-PHS M10-24X.75 ZP MTD-03220
...
8
DECAL-DANGER AVOID W2045146 MTD-W2045146
...
9
DECAL-40PSI CAUTION W2045147 MTD-W2045147
...
10
OBS SCR HH 5/16-18X2.5 MTD-9748
...
11
NUT-HEX 5/16-18 ZP MTD-9801
...
12
BOLT-U .25 X 1.75 X 3 MTD-W0280041630
...
13
NUT-HEX 1/4-20 ZP MTD-9800
...
14
ASSM-BOOM SWVL PLATE MTD-W2020103R
...
15
TEE-PIPE .25FPT BRASS MTD-W2098101B
...
16
SHANK-HOSE .375 X .25NPT MTD-W20751256B
...
17
CLAMP-HOSE 10829 MTD-W10829
...
18
HOSE-VINYL 7.5" 300PSI MTD-W2075664
...
19
HOSE-VINYL 11.5" 300PSI MTD-W2075665
...
20
HOSE-VINYL 18" 300PSI MTD-W2075666
...
21
NOZZLE BODY W/2HOSE SHANK MTD-W312375NYB
...
22
STRAINER-NYLON W8079PP MTD-W8079PP
...
23
NOZZLE-BRASS SPRAY BOOM MTD-W80015
...
24
CAP-NOZZLE (BOOM ATTCH) MTD-WCP215692CE
...
25
NOZZLE BODY SINGLE SHANK MTD-W311375NYB
...
26
CHAIN-DOUBLE LOOP W2020104B MTD-W2020104B
...
27
ASSM-BOOM TUBE MTD-W2020101R
...
28
PLG-SQ 16GA TUBE OLD W9565K23 MTD-1816035
...
29
ROPE-.25 X 10' MTD-W2020106
...
30
ASSM-CLAMP & SCR MTD-WQJ111SQ1
...
31
WASHER-.75X.312X.065 ZP MTD-W0420004P
...
32
GASKET-NOZZLE SEAT MTD-WCP19438EPR
...
xx
BOOM MAST MTD-W2020402
...
...
...
