Troy-Bilt 41057 Pressure Washer

Model: 41057 Pressure Washer

Save
 Part Not Listed?Part Not Listed?
product name

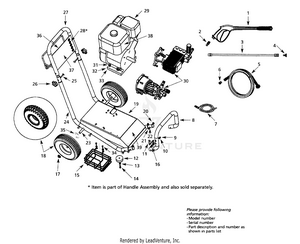

General Assembly

...
...
1
Gun MTD-1917783
...
2
Gun quick connect fitting MTD-1917809
...
3
Lance MTD-1917785
...
4
Spray tip - 0 degree MTD-1917868
...
xx
Spray tip - 15 degree MTD-1917869
...
xx
Spray tip - 25 degree MTD-1917870
...
xx
Spray tip - 40 degree MTD-1917871
...
xx
Detergent spray tip MTD-1917790
...
5
Hose MTD-1917867
...
6
Hose quick connect fitting MTD-1917810
...
7
Chemical filter and hose MTD-1917823
...
8
Pump Guard MTD-1917876
...
9
1/4-20 elastic stop nut MTD-1917818
...
10
1/4" flat washer MTD-1917816
...
11
Lance support MTD-1917877
...
12
Rubber Bumper MTD-1917795
...
13
Flat Washer, .385 x .62 x .063 MTD-736-0140
...
14
1/4-20 x 1-1/4 self-tapping screw MTD-1917819
...
15
Chemical Basket MTD-1917879
...
16
1/4-20 x 2" bolt MTD-1918187
...
17
PUSH CAP MTD-726-0214
...
18
Wheel, Knobby tread MTD-1918184
...
xx
Wheel, saw tooth tread MTD-1917797
...
19
Baseplate assembly MTD-1917880
...
20
5/16-18 x 1-3/4" carriage bolt MTD-1917811
...
21
5/16 elastic stop nut MTD-1917873
...
22
Washer, 5/16 flat washer MTD-1917872
...
23
Axle MTD-1917878
...
24
Leg MTD-1917875
...
25
Carriage Bolt 5/16-18 x 2.5" MTD-710-0572
...
26
Star knobs MTD-1917812
...
27
Handle assembly MTD-1917874
...
28
Rubber grommet Rubber grommet is part of handle assembly and is sold separately. MTD-1917791
...
29
Engine MTD-1917881
...
30
Pump assembly MTD-1917883
...
31
3/8-16 x 1-3/4 hex head bolt MTD-1917887
...
32
3/8" Flat washer MTD-1917886
...
33
3/8-16 elastic stop nut MTD-1917885
...
34
1/4-20 X 1" bolt MTD-1918089
...
35
Axle bushing (thick washer) MTD-1917935
...
36
Caution/warning decal MTD-DK625901AV
...
37
Placard/performance decal MTD-DK625908AV
...
38
Tory-Bilt logo decal MTD-DK625915AV
...
39
Troy-Bilt logo decal MTD-DK625916AV
...
xx
1/4 x 1/4 x 1-3/4 shaft key Not shown MTD-1917882
...
xx
Owners manual Not shown MTD-1918287
...
xx
Checklist Not shown MTD-1918294
...
...
...
