Troy-Bilt 34360 Tuff Cut Walk Behind Mower

Model: 34360 Tuff Cut

Save
 Part Not Listed?Part Not Listed?
product name

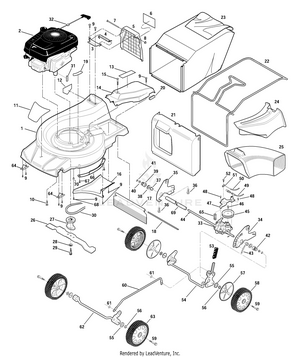

General Assembly

...
...
1
Mower Deck (Incl. Refs. 11, 12, 19) MTD-1918222
...
2
Engine Order parts from your local authorized engine dealer. Refer to engine/model type number nameplate on engine. MTD-NA
...
3
Support Bracket MTD-1917072001
...
4
Torsion Spring MTD-1917045
...
5
Discharge Outlet Cover (Incl. Ref. 6) MTD-1918305
...
6
Decal - Warning MTD-1918164
...
7
Pin MTD-1917086
...
8
PUSH NUT MTD-726-0135
...
9
Hex Hd. Flange Screw, 1/4-20 x 3/4, Self-Thrd. Model 34360/34361 MTD-1754128
...
xx
Hex Hd. Flange Screw, 1/4-20 x 3/4, Self-Thrd. Model 34362 MTD-NA
...
10
Hex Hd. Screw, 3/8-16 x 1-1/4, Self-Thrd. MTD-1767610
...
11
Decal - Logo Model 34360/34361 MTD-1918163
...
xx
Decal - Logo Model 34362 MTD-1918058
...
12
Decal - Danger, Hands/Feet Away MTD-1739687
...
13
Decal - Warning, Belt Cover MTD-1918160
...
14
Belt Cover (Incl. Ref. 13) MTD-1918223
...
15
SCREW 1/4-20 x 2.375 MTD-710-1206
...
16
Discharge Outlet Baffle MTD-1917002
...
17
TRAILSHIELD 5.125X16.85 MTD-731-04031
...
18
Flap Rod MTD-1917073
...
19
Decal - Danger, BBC Opening MTD-1918156
...
20
Rubber Extrusion MTD-1918284
...
21
Grass Catcher Door MTD-1917029
...
22
Grass Catcher Frame MTD-1917030001
...
23
Grass Catcher Bag MTD-1918182
...
24
Mulching Plug MTD-1917084
...
25
Side-Discharge Deflector MTD-1918361
...
26
21" BLADE MTD-742-04042
...
27
Engine Pulley/Blade Coupler Assy. MTD-1917017
...
28
WASHER-disc spring (concave). Dome side of washer faces bolt head MTD-GW-9928
...
29
Shoulder Screw, 3/8-24 x 1.65 MTD-1917060
...
30
V-Belt MTD-1917005
...
31
Square Key, .188 x 1-1/4 MTD-9302
...
32
Rope Stop MTD-1746425
...
33
Transaxle MTD-1917004
...
34
Handle Support Bracket, Left-Hand MTD-1917038001
...
35
Handle Support Bracket, Right-Hand MTD-1917018001
...
36
Self-tapping Screw 3/8-16 x 0.75" MTD-710-0623
...
37
Rear Axle Bearing MTD-1917014
...
38
Washer/Seal, Nylon MTD-1917079
...
39
Pinion Gear, Right-Hand MTD-1918323
...
40
Shim, .016" MTD-1909380
...
xx
Shim, .062" MTD-1909382
...
41
RETAINING RING - (snap ring), external MTD-GW-9516
...
42
Pinion Gear, Left-Hand MTD-1918322
...
43
Decal - Blade Cutting Height MTD-1918162
...
44
Round Pin MTD-1909044
...
45
Transaxle Pulley MTD-1917003
...
46
Hex Hd. Screw, 1/4-20 x 5/8, GR. 5 MTD-1186309
...
47
Cable Mounting Bracket MTD-1917009001
...
48
SCREW 1/4-20 X.500 MTD-710-0599
...
49
CLUTCH CABLE CONTROL MTD-1917032P
...
50
CABLE-DRIVE CONTROL MTD-1917037099
...
51
Cable Clamp MTD-1715127
...
52
Screw, self tapping, #10-24 MTD-710-04460
...
53
GRIP MTD-720-0313
...
54
Rear Axle Assembly MTD-1918224
...
55
Spacer MTD-1917074
...
56
Flat Washer, .406" ID MTD-1909311
...
57
Wheel Shield MTD-1917083
...
58
Rear Wheel/Tire Assembly MTD-1765750
...
59
Shoulder Screw, 3/8-16 x 2.42 MTD-1903416
...
60
Deck Height Adjust Linkage MTD-1917012001
...
61
E-Ring .375" Dia. MTD-916-0125
...
62
Front Axle Assembly MTD-1917010001
...
63
WHEEL KIT IDLE 8 x 2 MTD-753-08091
...
64
Front Axle Bearing MTD-1917015
...
65
Compression Spring MTD-1917068
...
66
Skid Plate Model 34362 MTD-1917099001
...
67
Pan Hd. Screw, 1/4-20 x 1/2 Model 34362 MTD-1911449
...
68
Pan Hd. Screw, 1/4-20 x 1 Model 34362 MTD-1918119
...
69
Spacer Tube, Plastic MTD-1918339
...
70
Spacer, Steel Model 34362 MTD-1750681
...
xx
MTD-NA

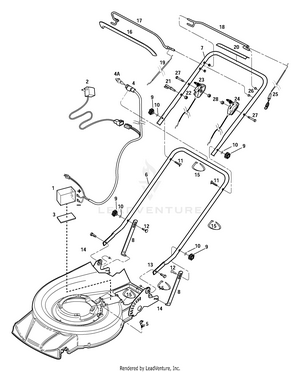

Handlebar Assembly And Frame

...
...
1
Battery Model 34361 MTD-1909647
...
2
Battery Charger Kit Model 34361 MTD-1902273
...
3
Battery Pad Model 34361 MTD-1917069
...
4
Keyswitch and Wire Harness Model 34361 MTD-1917001
...
4A
Key Model 34361 MTD-925-0201
...
5
Wire Harness Clip Model 34361 MTD-1917093
...
6
Lower Handlebar MTD-1917021001
...
7
Upper Handlebar MTD-1917026001
...
8
Handlebar Support Strut MTD-1917036001
...
9
Handlebar Adjustment Knob MTD-1763767
...
10
Ext. Tooth Lock Washer, 5/16 MTD-1177038
...
11
SCREW 5/16-18 x 2.0 MTD-710-1174
...
12
Carriage Bolt, 5/16-18 x 1-3/4, Special MTD-1917087
...
13
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
14
HEX SCREW 3/8-16 X .75 MTD-710-0216
...
15
7" CABLE TIE Model 34360 MTD-725-0157
...
xx
7" CABLE TIE Model 34361/34362 MTD-725-0157
...
16
Bail Grip MTD-1917050
...
17
Operator Presence Control Bail MTD-1917053001
...
18
Wheel Drive Bail MTD-1917085001
...
19
CABLE-ENGINE BRAKE Model 34360/34361 MTD-1917081P
...
xx
Operator Presence Control Cable Model 34362 MTD-1917098
...
20
Decal - Bail Operating Instructions MTD-1918161
...
21
Rope Guide MTD-1917090
...
22
Hex Flange Nut, 1/4-20 MTD-1186389
...
23
Throttle Control Lever/Cable Model 34362 MTD-1917082
...
24
CABLE-DRIVE CONTROL MTD-1917037099
...
25
CLUTCH CABLE CONTROL MTD-1917032P
...
26
Bushing, Nyliner MTD-1908677
...
27
Hex Hd. Screw, M6 MTD-1917091
...
28
Hex Nut, M6 MTD-1917092
...
...
...
