Troy-Bilt 34007 5.5hp-22" Self Propelled(S/N 340070100101-3700704 Mulching Mower

Model: 34007 5.5HP-22"" SELF-PROPELLED

Save
 Part Not Listed?Part Not Listed?
product name

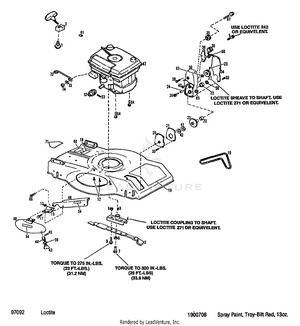

ENGINE AND GEAR CASE

...
...
1
SCR-HFLK 1/4-20X1.0 THFRM MTD-1763187
...
2
GUIDE-ROPE MTD-1761764
...
3
MULCHING BLADE 22" LG MTD-1755990-0637
...
4
ASSM-BLADE COUPLING MTD-1765505
...
5
SCREW 3/8-16 x 1 GR5 USE LOCTITE 242 OR EQUIVELENT. TORQUE TO 272 IN.-LBS., (23FT.-LBS.)(31.2 NM) MTD-710-0514
...
6
Hex Lock Nut, 3/8-16 MTD-712-3000
...
7
SCR-SHOULDER TORQUE TO 300 IN. -LBS. (25 FT.-LBS.)(33.9 NM) MTD-1894062
...
8
Lock Washer, 1/2 MTD-736-0921
...
9
KEY-WOODRUFF .156X.625 LOCTITE COUPLING TO SHAFT. USE LOCTITE 271 OR EQUIVELENT. MTD-1100275
...
10
BELT-DRIVE MTD-1755565
...
11
SCR-SHOULDER MTD-1756544
...
12
SCR-CARR 1/4-20X.375 MTD-1186068
...
13
NUT-HF/LK 1/4-20 ZP MTD-1186389
...
14
DECAL-CAUTION MTD-1755985
...
15
BRKT-SUPPORT MTD-1755558001
...
18
DECAL-CUTTING HEIGHT MTD-1758094
...
19
DECAL-LOGO INCLUDES SERIAL NUMBERS - 340070100101-340070199999 MTD-1758098
...
19
DECAL-LOGO MULCHER 22" INCLUDES SERIAL NUMBERS - 340070200101-340070299999, 340070300101- 340070399999, 340070400101-340070499999 MTD-1764713
...
20
COVER-GEAR CASE BOTTOM MTD-1894230001
...
21
GASKET-GEAR CASE MTD-1894231
...
22
BEARING-BRONZE MTD-1185319
...
23
ASSM-GEAR SHAFT MTD-1761969
...
24
BEARING-BRONZE MTD-1758230
...
25
PIN-DRIVE .218X1.12 MTD-1185271
...
26
ASSM-STEEL PINION SHAFT MTD-1758050
...
27
SHEAVE LOCTITE SHEAVE TO SHAFT, USE LOCTITE 271 OR EQUIVELENT. MTD-1758229
...
30
IDLER-FLAT MTD-1752988
...
33
SCR-HW M10-24X.5 STH ZP MTD-1186009
...
34
GEAR COVER MTD-1722468001
...
35
SHEAVE MTD-1761754
...
36
ASSM-GEAR CASE MTD-1761625001
...
38
SCR-SHOULDER MTD-1894301
...
39
ASSM-IDLER ARM MTD-1757745
...
40
Push Cap MTD-726-0100
...
41
Washer-Fl-.760Id X MTD-736-0188
...
42
WASHER-FELT MTD-1894232
...
43
PIN-CHUTE LOCK MTD-1894076
...
44
SPRING-COMPRESSION MTD-1894318
...
45
PIN-ROLL .093 DIAX.62 MTD-1185479
...
46
COVER-DISCHRG W/DEC (INCL. 12-14, 43-45, 59) MTD-1762064
...
47
TECUMSEH ENGINE 5 H.P. MODEL OVRM50-52620B INCLUDES SERIAL NUMBERS - 340070100101-340070199999, 340070200101- 340070299999. ORDER PARTS FROM YOUR LOCAL TECUMSEH DEALER - REFER TO ENGINE FOR MODEL NUMBER, TYPE NUMBER AND CODE. MTD-NA
...
47
TECUMSEH ENGINE 5.5 H.P. MODEL OVRM55-52620C INCLUDES SERIAL NUMBERS - 340070300101-340070399999, 340070400101- 340070499999. ORDER PARTS FROM YOUR LOCAL TECUMSEH DEALER - REFER TO ENGINE FOR MODEL NUMBER, TYPE NUMBER AND CODE. MTD-NA
...
48
ASSM-BELT COVER MTD-1764438001
...
52
SHEAVE MTD-1756806
...
53
Pin, Spring, 3/16 x 1.25 MTD-915-0246
...
54
DECAL-FRONT WHEEL DRIVE MTD-1763874
...
58
RING-GRIP MTD-1725197
...
59
Washer MTD-736-0159
...
60
SPRING-TORSION MTD-1757640
...
61
STOP-STARTER ROPE MTD-1746425
...
62
WASHER-SHIM MTD-1185831
...
64
SCR-HH 3/8-16X1.0 THDFM MTD-1762042
...
65
Grease Fitting MTD-937-0146
...
66
SCR-FLANGE 1/4-20X3/4 GR5 MTD-1754128
...
67
Hex Cap Screw, 5/16-18 x.875 MTD-710-3038
...
68
DECAL-U.S.A. MTD-1900333
...
71
DECAL-OPEI CAUTION MTD-1739687
...
72
SUPPORT-CHUTE CRANK INCLUDES SERIAL NUMBERS - 340070100101-340070199999, 340070200101- 340070299999. MTD-1752318
...
72
SUPT-THROTTLE CONTROL INCLUDES SERIAL NUMBERS - 340070300101-340070399999, 340070400101- 340070499999. MTD-1765826
...
73
Flat Washer .271 ID x .630 OD MTD-736-3020
...
74
NUT H/LK 1/4-28 MTD-1765656
...
xx
PAINT-RED SPRAY 13OZ. MTD-788-0638A
...
xx
Loctite 242, 0.02 oz. Tube MTD-GW-97092

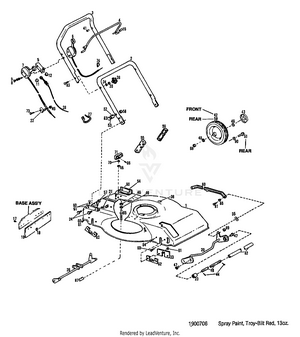

MAIN ASSEMBLY

...
...
1
ASSM-BASE W/DECAL 22"MLCH (INCL. 17-19 & 37 PG. 5, 64) MTD-1763880
...
2
HANDLE-LOWER MTD-1761103001
...
3
HANDLE-UPPER MTD-1761100001
...
4
ASSM-BAIL ENGINE CONTROL MTD-1761104001
...
5
SUPPORT-CONTROL MTD-1766147001
...
6
THROTTLE CONTROL INCLUDES SERIAL NUMBERS 340070100101-340070199999, 340070200101- 340070299999 MTD-1763676
...
6
CONTROL-THROTTLE INCLUDES SERIAL NUMBERS 340070300101-340070399999, 340070400101- 340070499999 MTD-1765734
...
7
CONTROL-CLUTCH MTD-1769342P
...
8
SCR-HH SEMS MTD-1756148
...
9
Hex Sems Nut, #10-24 MTD-712-0272
...
10
GRIP-HANDLE MTD-1751526
...
11
PUSH NUT MTD-726-0135
...
12
RING-GRIP EXT .312 ID MTD-1747236
...
17
RIVET-POP (BASE ASSEMBLY) MTD-1739918
...
18
WASHER-.88X.2X.059 MTD-1736359
...
19
SHIELD-DEFLECTOR MTD-1755562
...
20
KIT-AXLE ASM FRNT (1763088) INCLUDES SERIAL NUMBERS 340070100101-340070199999, 340070200101- 340070299999, 340070300101-340070399999 MTD-1764062
...
20
ASSM-FRONT AXLE INCLUDES SERIAL NUMBERS 340070400101-340070499999 MTD-1755530001
...
21
BRKT MTD-1763816001
...
22
CLAMP-POWDEN WIRE MTD-1759076
...
23
BUSHING-AXLE MTD-1764050
...
24
HEX SCREW 3/8-16 X .75 MTD-710-0216
...
26
ASSM-AXLE REAR MTD-1762885001
...
27
7" CABLE TIE MTD-725-0157
...
28
CABLE-ENGINE BRAKE MTD-1763677
...
33
PLATE-DOUBLER MTD-1761028
...
34
LOCK WASHER 5/16 MTD-936-0119
...
35
FLAT WASHER MTD-736-0275
...
36
KNOB MTD-1763767
...
38
DECAL-INDICATOR MTD-1761554
...
41
BEARING-FLANGED MTD-1747499
...
42
TIRE/WHEEL FRONT F/TB MULCH MW MTD-1762021
...
43
CAP-HUB T/B MULCHERS MTD-1762241
...
44
Cotter Pin MTD-714-0474
...
46
Flat Washer MTD-GW-20546
...
47
BEARING-AXLE MTD-1760842
...
48
AXLE-DRIVE INCLUDES SERIAL NUMBERS 340070100101-340070199999, 340070400101- 340070499999 MTD-1755524
...
48
AXLE-DRIVE INCLUDES SERIAL NUMBERS 340070200101-340070299999, 340070300101- 340070399999 MTD-1764637
...
49
NUT-HFLK #10-24 MTD-1186387
...
50
ASSM-TIRE & WHEEL (REAR) MTD-1761981
...
51
SCR-SHLDR 3/8-16 MTD-1763219
...
52
SPRING-COMPRESSION MTD-1755406
...
53
SPACER MTD-1755407
...
54
BRKT-HANDLEBAR MTD-1755402001
...
55
SUPPORT-HANDLE RH MTD-1755403001
...
56
SUPPORT-HANDLE LH MTD-1755404001
...
57
Hex Lock Nut, 3/8-16 MTD-712-3000
...
58
NUT-HFT/LK MTD-1744708
...
60
Carriage Bolt, 5/16-18 x .62 MTD-710-0260A
...
61
NUT-HFLK 5/16-18 ZP MTD-712-04054
...
62
BRACKET-AXLE MTD-1743277
...
65
SCR-ADJ MTD-1762881
...
66
PIN-ROLL .188X1.0 MTD-1120210
...
70
SPACER-HANDLE MTD-1762886
...
71
HANDLE-HEIGHT ADJ MTD-1754149
...
73
SCR-HW M10-24X.88 EXTTOOTH MTD-1752461
...
74
7" CABLE TIE MTD-725-0157
...
80
LINK-HEIGHT ADJUST MTD-1761027001
...
81
SCR-SHOULDER MTD-1760971
...
82
TUBING-PLASTIC MTD-1736069
...
83
SCREW 5/16-18 x 2.0 MTD-710-1174
...
84
SCR-TRUSS HD 5/16-18X.62 MTD-1185872
...
86
BEARING-NYLINER MTD-1761046
...
87
PIVOT-ADJUSTING SCR MTD-1762882
...
88
NUT-HFLK 3/8-16 ZP MTD-1186393
...
89
Jam Nut, 5/16-18 MTD-712-3007
...
90
Washer, Spec .378 x 1.0 x .125 Thk MTD-936-0206
...
xx
PAINT-RED SPRAY 13OZ. MTD-788-0638A
...
...
...
