Troy-Bilt 25B-554L766 (2005) Edger

Model: 25B-554L766 (2005)

Save
Part Not Listed?Part Not Listed?
product name

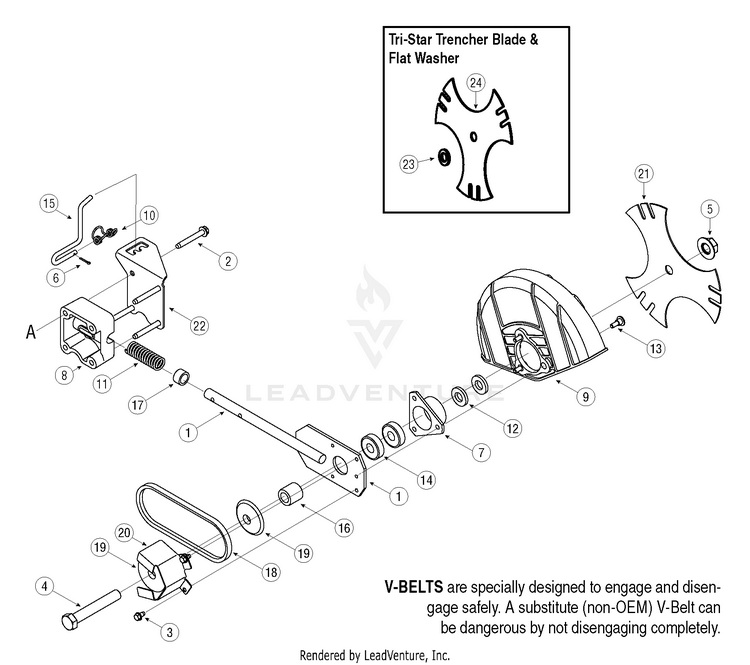

Blade

...
...
1
Blade Plate Assembly MTD-687-02126


...
3
Self-tapping Screw, 1/4-20 MTD-710-0599

...
4
Hex Screw, 5/8-18 MTD-710-1143A

...
5

...
6
Clevis Pin 3/32 x .625 MTD-714-3010

...
7
Bearing Cup MTD-718-04012

...
8
Bearing Block MTD-931-04207

...
9
EDGER BLADE GUARD (W/LABEL) MTD-731P05064

...
10
Double Torsion Spring MTD-732-0188A

...
11
Compression Spring MTD-932-04169

...
12
Flat Washer .635x1.24x.181 MTD-736-04088

...

...
14
Bearing, Ball, .625 x 40 x 12 MTD-941-0524A

...
15
Blade Adjustment Rod MTD-747-04110A

...
16
Spacer, .63 x 1.12 x 1.06 MTD-950-04105

...
17
Spacer, .64 x.88 x .50 MTD-750-0547

...
18
Drive Belt MTD-954-04032B

...
19

...
20

...
21
Tri-star Blade MTD-781-0748

...
22
Cover Plate MTD-787-01081A

...
23
Flat Washer MTD-736-04088

...
24
Tri-Star Blade (Trencher) MTD-781-0748

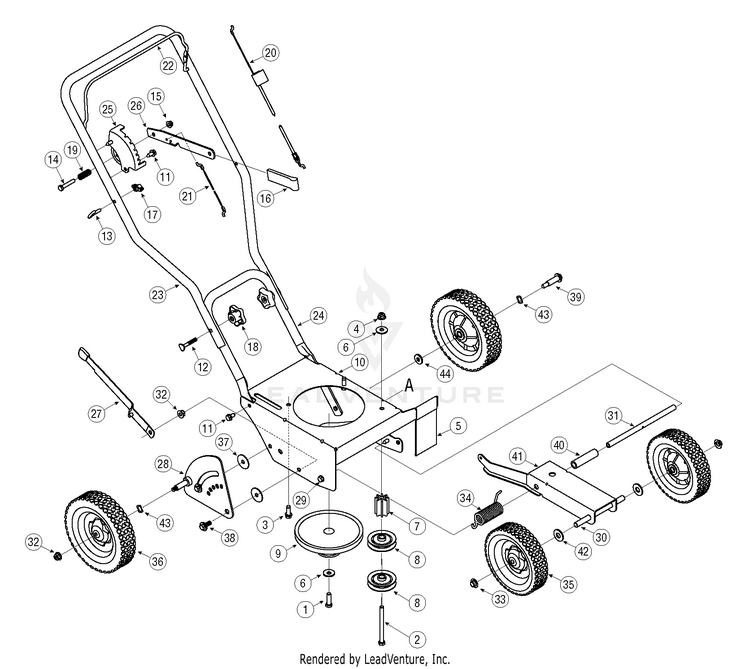

General Assembly

...
...
1
Screw 3/8-24 MTD-710-0191

...
2
Screw 3/8-16 MTD-710-0411

...
3
Screw, 3/8-16 MTD-710-0654A

...
4
Flange Lock Nut, 3/8-16 MTD-712-04065

...
5
Debris Guard MTD-731-05063

...
6
Bell Washer,.396 x 1.140 MTD-736-0452

...
7
MOUNT SPACER MTD-950-04142

...
8
Flat Idler Pulley, 2.5 OD MTD-756-04148

...
9
Combination Flywheel MTD-756-1150A

...
10

...
11
Hex Screw, 5/16-18 MTD-710-0607

...
12
Carriage Bolt, 5/16-18 MTD-710-1174

...
13
Rope Guide (Eye Bolt) MTD-710-1205

...
14
Hex Screw, 5/16-18 MTD-710-3180

...
15
Lock Flange Nut, 5/16-18 MTD-712-04063

...

...
17
Wing Nut MTD-720-0279

...
18
STAR KNOB 5/16-18 MTD-720-04072A

...
19

...
20
23" CONTROL CABLE MTD-946-04035

...
21
WHEEL ADJUSTMENT CABLE MTD-946-04036

...
22
BLADE CONTROL BAIL MTD-747-0976B

...
23
UPPER HANDLE MTD-749-04183A

...
24
LOWER HANDLE (when replacing 749-04184 with 749-04234 lower handle, also furnish 711-04440 threaded frame spacer) MTD-749-04234

...
24
Lower Handle (replaces 749-04184) MTD-749-04234

...
24
Threaded Frame Spacer (replaces 749-04184) MTD-711-04440

...
25
Depth Index Bracket MTD-781-0741A

...
26
LEVER DEPTH MTD-781-0742-0637

...
27
Curb Height Adjustment MTD-687-02022

...
28
Curb Height Adjuster Plate MTD-687-02125A

...
29
Hex Screw 5/16-18x.625x12 MTD-710-0759

...
30
Axle Shaft .50x6.65 MTD-711-04361

...
31
Frame Spacer .50x9.25 MTD-711-04392A

...
32
Flange Nut 3/8-16 MTD-712-04065

...
33
Push Cap 1/2" rod MTD-726-0299

...
34
Torsion Spring MTD-732-04045

...
35
Wheel 7x1.8 MTD-734-1264

...
36
Wheel 8x1.8 MTD-734-1268

...
37
Flat Washer, .385 x 1.5 x .075 MTD-736-0234

...
38
Shoulder Screw, 3/8-16 MTD-738-04149

...
39
Shoulder Screw, 3/8-16 MTD-738-0929

...
40

...
41
Dual Wheel Bracket MTD-787-01239

...
42
Flat Washer 1/2 x 1.25 x .10 MTD-736-0179

...
43
Wave Washer .531 x .781 x .013 MTD-736-0232

...
44
Flat Washer .385 x 1.0 x .135 MTD-736-0258
...
...
...
