product name

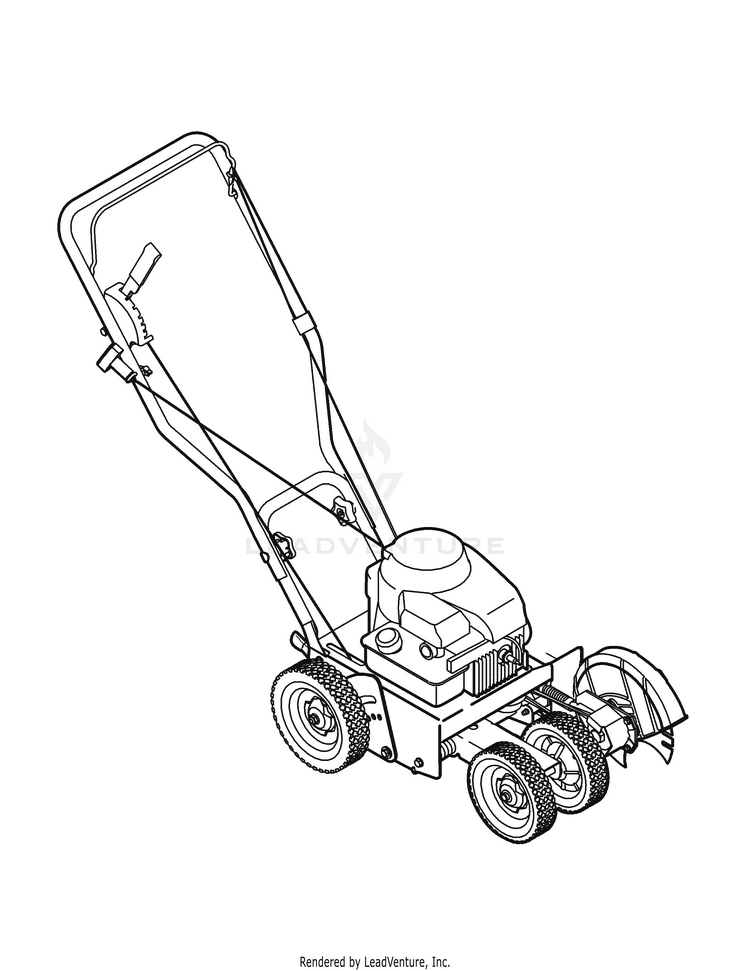

Troy-Bilt 25B-554E066 (2009) Edger

Model: 25B-554E066 (2009)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338
...
xx
Pre Filter MTD-NA
...
xx
Air Filter MTD-490-200-0011
...
xx
23" CONTROL CABLE MTD-946-04035
...
xx
Wheel Adjustment Cable MTD-946-04036
...
xx
Drive Belt MTD-954-04032B
...
xx
EDGER BLADE GUARD (W/LABEL) MTD-731P05064
...
xx
Blade, Tri Star MTD-781-0748-0637
...
xx
Blade, Edger MTD-781-0080-0637
...
xx
STAR KNOB 5/16-18 MTD-720-04072A
...
xx
Control Lever (Wheels) MTD-687-02022
...
xx
Wheels - Front MTD-734-1264
...
xx
Wheels - Rear MTD-734-1268

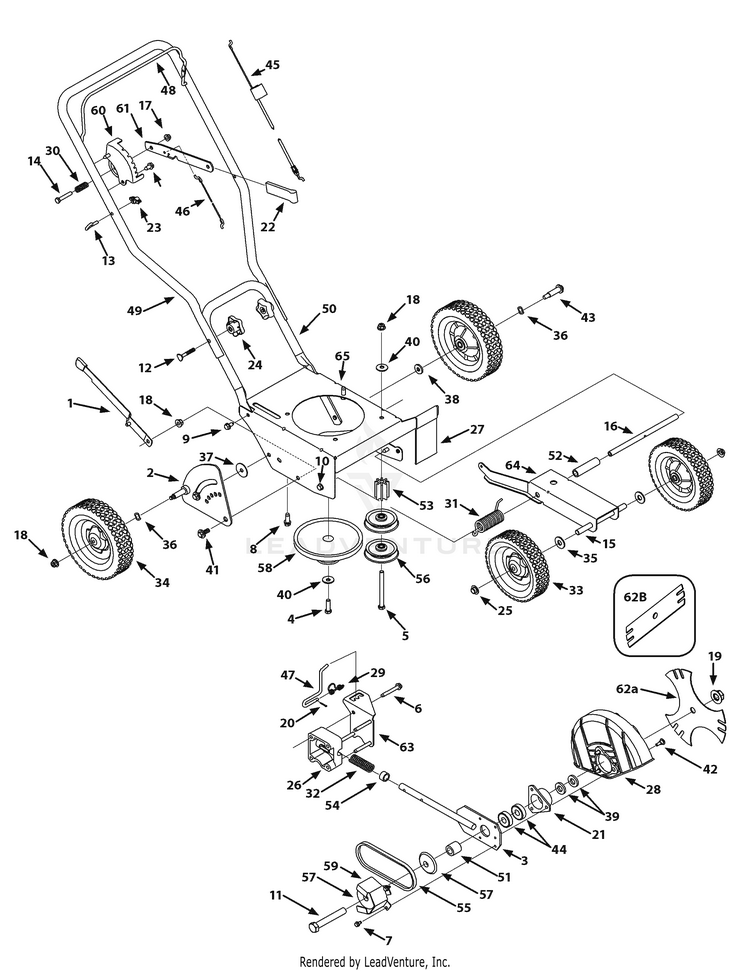

General Assembly

...
...
1
Curb Height Adjustment Lever MTD-687-02022
...
2
Curb Height Adjuster Plate MTD-687-02125A
...
3
Blade Plate Assembly MTD-687-02126
...
4
Screw 3/8 -24 MTD-710-0191
...
5
Screw 3/8-16 MTD-710-0411
...
6
SCREW MTD-710-04389
...
7
Self-tapping Screw, 1/4-20 MTD-710-0599
...
8
Screw, 3/8-16 MTD-710-0654A
...
9
Hex Screw, 5/16-12 MTD-710-0726
...
10
Hex Screw 5/16-18 MTD-710-0870
...
11
Hex Screw, 5/8-18 MTD-710-1143A
...
12
Carriage Bolt, 5/16-18 MTD-710-1174
...
13
Rope Guide (Eye Bolt) MTD-710-1205
...
14
Hex Screw, 5/16-18 MTD-710-3180
...
15
Axle Shaft .50x6.65 MTD-711-04361
...
16
Frame Spacer .50x9.25 MTD-711-04440
...
17
Lock Flange Nut, 5/16-18 MTD-712-04063
...
18
Flange Nut 3/8-16 MTD-712-04065
...
19
HEX NUT MTD-712-0417A
...
20
Clevis Pin 3/32 x .625 MTD-714-3010
...
21
Bearing Cup MTD-718-04012
...
22
Grip MTD-720-0142
...
23
Wing Nut MTD-720-0279
...
24
STAR KNOB 5/16-18 MTD-720-04072A
...
25
Push Cap 1/2" rod MTD-726-0299
...
26
Bearing Block MTD-931-04207
...
27
Debris Guard MTD-731-05063
...
28
EDGER BLADE GUARD (W/LABEL) MTD-731P05064
...
29
Double Torsion Spring MTD-732-0188A
...
30
Compression Spring MTD-932-0369
...
31
Torsion Spring MTD-732-04045
...
32
Compression Spring MTD-932-04169
...
33
Wheel 7 x 1.75 T-Tread MTD-734-1264
...
34
Wheel 8 x 1.75 T-Tread MTD-734-1268
...
35
Fl-Wash. 17/32" I.D. MTD-736-0179
...
36
Wave Washer,.531 ID x.781 OD MTD-736-0232
...
37
Flat Washer, .385 x 1.5 x .075 MTD-736-0234
...
38
Flat Washer .385 x 1.0 x .135 MTD-736-0258
...
39
Flat Washer .635x1.24x.181 MTD-736-04088
...
40
Bell Washer, .396 x 1.14 x .095 MTD-736-0452
...
41
Shoulder Screw,3/8 -16 MTD-738-04149
...
42
Screw MTD-738-0706D
...
43
Shoulder Screw, 3/8 -16 MTD-738-0929
...
44
Bearing, Ball, .625 x 40 x 12 MTD-941-0524A
...
45
23" CONTROL CABLE MTD-946-04035
...
46
Wheel Adjustment Cable MTD-946-04036
...
47
Blade Adjustment Rod MTD-747-04110A
...
48
BLADE CONTROL BAIL MTD-747-0976B
...
49
UPPER HANDLE MTD-749-04183A
...
50
LOWER HANDLE MTD-749-04234
...
51
Spacer, .63 x 1.12 x 1.06 MTD-950-04105
...
52
Spacer MTD-750-04129
...
53
Pulley Mount Spacer MTD-950-0414
...
54
Spacer, .64 x.88 x .50 MTD-750-0547
...
55
Belt MTD-954-04032B
...
56
Flat Idler Pulley, 2.5 OD MTD-756-04148
...
57
Sheave MTD-956-0449
...
58
Combination Flywheel Pulley MTD-756-1150A
...
59
Belt Guard MTD-781-0427-0637
...
60
Depth Index Bracket MTD-781-0741A
...
61
LEVER DEPTH MTD-781-0742-0637
...
62A
Tri-Star Blade MTD-781-0748-0637
...
62B
Edger Blade MTD-781-0080-0637
...
63
Bracket Plate MTD-787-01081A-0637
...
64
Dual Wheel Bracket MTD-787-01239-0638
...
65
Frame MTD-787-01304-063

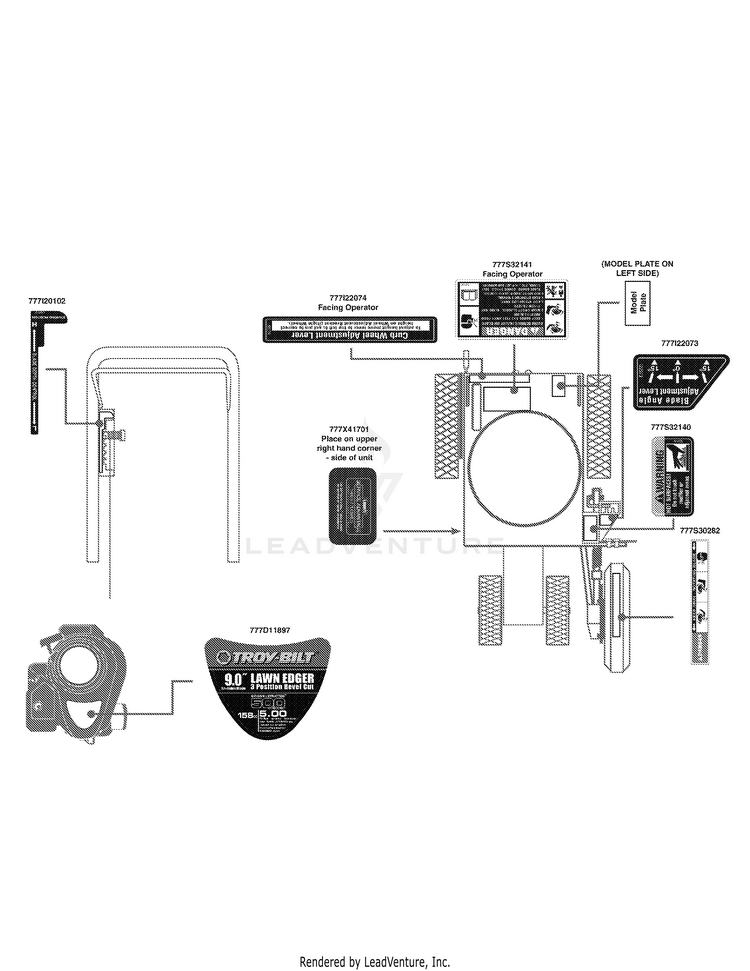

Label Map

...
...
777I20102
LABEL DEPTH CNTRL MTD-777I20102
...
777D11897
LABEL-EDGER SHROUD TROY MTD-777D11897
...
777I22074
LABEL-FRAME REAR MTD-777I22074
...
777X41701
LABEL MTD-777X41701
...
777S32141
LABEL-FRAME REAR MTD-777S32141
...
777I22073
LABEL-FRAME LH MTD-777I22073
...
777S32140
LABEL-MUFFLER MTD-777S32140
...
777S30282
LABEL-BLADE COVER MTD-777S30282
...
...
...
