Troy-Bilt 25A-592A063 3.75hp (2002) Edger

Model: 25A-592A063 3.75HP (2002)

Save
 Part Not Listed?Part Not Listed?
product name

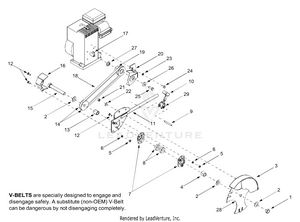

Drive

...
...
1
Hex Jam Nut, 5/8-18 MTD-712-0413
...
2
Bell Washer, .64 x 1.25 x .18 MTD-736-0317
...
3
Blade Guard MTD-781-0076
...
4
Sleeve .90" Lg. MTD-950-0118
...
5
Nut, Hex, 1/4-20 MTD-912-0287
...
6
Lock Washer MTD-936-0329
...
7
Bearing Housing MTD-05034A
...
8
Bearing MTD-941-0155
...
9
Spirol Pin, 1/4 x 2.0 MTD-715-0121
...
10
Adjustment Lever Ass'y. MTD-981-0093
...
11
Spindle Plate/Shaft Assembly MTD-781-0078
...
12
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
13
Spacer, .635 x .88 x 1.03 MTD-750-0229
...
14
Sheave MTD-956-0449
...
15
BOLT-HEX 5/8-18X4 MTD-710-3151A
...
16
Belt Guard MTD-781-0427-0637
...
17
Square Key, 3/16 x .75 MTD-714-0122
...
18
V-Belt MTD-954-0142
...
19
Engine Pulley, 3/8 x .75 x 2.38 MTD-756-0327B
...
20
Engine Pulley Belt Guard MTD-687-0100
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
Belleville Washer, .340 x .872 MTD-736-0242
...
23
LOCK WASHER 5/16 MTD-936-0119
...
24
Hex Cap Screw, 5/16-24 x .625 MTD-710-0237
...
25
SCREW 3/8-24 X 1.00 GR8 MTD-710-1039
...
26
Flat Washer, .385 x 1.0 x .135 MTD-736-0258
...
27
Spacer .755" I.D. x 1.25" O.D. MTD-948-0160
...
28
Triplex Edger Blade, 9.0 MTD-781-0748
...
29
Double-torsion Spring MTD-732-0188A

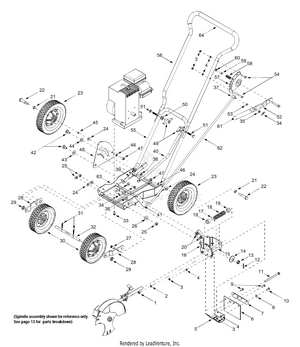

General Assembly

...
...
1
HEX NUT 5/16-18 MTD-712-3010
...
2
LOCK WASHER 5/16 MTD-936-0119
...
3
Nut, Hex, 1/4-20 MTD-912-0287
...
4
Lock Washer MTD-936-0329
...
5
Debris Deflector MTD-781-0095
...
6
Debris Guard MTD-731-0725
...
7
Flap Bracket, 1.12 x 5.5 MTD-781-0087
...
8
Flat Washer, .283 x .75 x .030 MTD-736-0342
...
9
Hex Cap Screw, 1/4-20 x .75 MTD-710-3015
...
10
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
11
Hex Screw, 5/16-18 x 4.5 MTD-710-0402
...
12
Cotter Pin, 1/8 x 1.0 MTD-714-0115
...
13
Hex Slotted Nut 1/2-20 Thd. MTD-912-0114
...
14
Sphere Washer, .531 x 1.6 x .045 MTD-736-0112
...
15
Spacer, .38 x .50 x 3.75 MTD-711-0386
...
16
Spindle Pivot Bracket Assembly MTD-781-0090
...
17
Spirol Pin, 1/4 x 1.25 MTD-715-0143
...
18
Compression Spring MTD-732-0187
...
19
Shoulder Spacer, .635 x .620 MTD-711-0379
...
20
Self-tapping Screw, 5/16-18 x .50 MTD-710-0607
...
21
WAVE WASHER MTD-936-0504
...
22
Shoulder Bolt .498" Dia. MTD-938-0108
...
23
Wheel w/ Ball Bearing, 8 x 1.75 MTD-734-1268
...
24
Spring Washer, .401 x .871 x .063 MTD-736-0105
...
25
Hex Nut, 3/8-24 MTD-712-0241
...
26
Bell Washer, .396 x 1.14 x .095 MTD-736-0452
...
27
Rd Hd Bolt 3/8-24 x .89 MTD-710-0793
...
28
Front Axle Arm MTD-781-1069
...
29
Cap Speed Nut, 1/2 MTD-726-0221
...
30
Wheel w/ Ball Bearing, 7 x 1.75 MTD-734-1264
...
31
Internal Cotter Pin, .08 x 1.42 MTD-714-0101
...
32
Front Axle, .50 x 7.98 MTD-738-1176
...
33
Self-tapping Screw, 3/8-16 x 1.0 MTD-710-0654A
...
34
Internal Cotter Pin, .072 x 1.0 MTD-714-0104
...
35
Flat Washer, .330 x .630 x .0635 MTD-736-0264
...
36
Flat Washer, .406 x .810 x .051 MTD-736-3050
...
37
Adjustment Ferrule MTD-711-0392
...
38
JAM LOCK NUT MTD-712-0266A
...
39
Spring Adj. Lever MTD-932-0552
...
40
Strut 15.91" Lg. MTD-749-0941-0637
...
41
Spindle Extension Arm MTD-781-0075
...
42
Shld. Bolt .5" Dia. MTD-938-0258
...
43
Bell Washer, .51 x 1.14 x .040 MTD-736-0255
...
44
FLAT WASHER .510 x .995 MTD-736-0272
...
45
Spacer, .380 ID x .625 OD x .21 MTD-950-0535
...
46
Lock Washer, 3/8 MTD-736-0169
...
47
Hex Nut, 3/8-16 MTD-712-0798
...
48
Curb Height Adjustment Plate MTD-781-0100
...
49
STAR KNOB 5/16-18 MTD-720-04072A
...
50
Saddle Washer, .320 x .93 MTD-736-0451
...
51
Carriage Bolt, 5/16-18 x .75 MTD-710-1174
...
52
Engagement Handle MTD-749-0666-0637
...
53
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
54
Hex Cap Screw, 5/16-18 x 2.0 MTD-710-3103
...
55
Lower Handle MTD-749-0937-0637
...
56
Upper Handle (Loop Style) MTD-749-0936A
...
57
Depth Adjustment Bracket MTD-781-0081
...
58
SPRING MTD-932-0369
...
59
Flat Washer, .344 x .62 x .030 MTD-736-0204
...
60
Hex Lock Nut, 5/16-18 MTD-912-0158
...
61
Foam Grip (Blade Clutch Lever) MTD-720-0283
...
62
Clutch Rod, 3/8 x 33.5 MTD-747-1164
...
63
Edger Base MTD-681-0044
...
64
Foam Grip (Upper Handle), 20 MTD-720-0297
...
...
...
