product name

Troy-Bilt 18330 SLEEVE HITCH ASSEMBLY Tractor

Model: 18330 SLEEVE HITCH ASSEMBLY

Save
 Part Not Listed?Part Not Listed?
product name

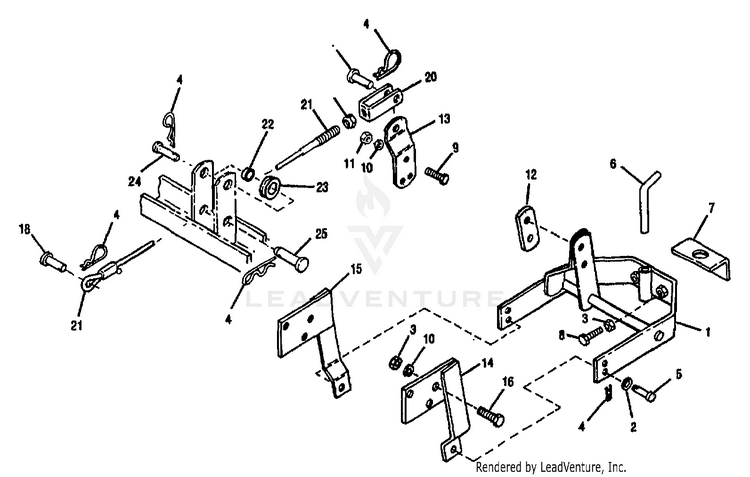

SLEEVE HITCH ASSEMBLY

...
...
1
HITCH MTD-1734952
...
2
Washer, Flat, .65 x 1.25 x .075 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-736-0237
...
3
Hex Nut, 7/16-14 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-712-3019
...
4
HITCH PIN MTD-1723478
...
5
PIN-CLEVIS MTD-1724639
...
6
PIN-HITCH .625 DIA MTD-1730809
...
7
PLATE MTD-1731147
...
8
SCR-HH 1/2-13 X 2.00 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-1731412
...
9
SCR-HH 1/2-13X2.75 G5 ZP MTD-1100080
...
10
Lock Washer, 1/2 MTD-736-0921
...
11
Hex Lock Nut, 1/2-13 MTD-712-3022
...
12
SPACER MTD-1734949
...
13
EXT-LIFT ARM MTD-1734557
...
14
ASSM-ARM HITCH LH MTD-1733854
...
15
ASSM-ARM HITCH RH MTD-1733855
...
16
SCREW 1/2-13 x 1.25 GR5 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-710-3032
...
17
HEX NUT 3/8-16 GR5 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 WHERE APPLICABLE) MTD-712-3017
...
18
PIN-CLEVIS .5X2.75 MTD-1706621
...
19
PIN-CLEVIS .5X1.25 MTD-1730851
...
20
YOKE-CABLE MTD-1734192
...
21
CABLE-LIFT MTD-1734193
...
22
SPACER-.75X.53X.656 MTD-1734509
...
23
ROLLER MTD-1754508
...
24
PIN-CLEVIS MTD-1890227
...
25
PIN-CLEVIS .5X1.25 MTD-1730851
...
...
...
