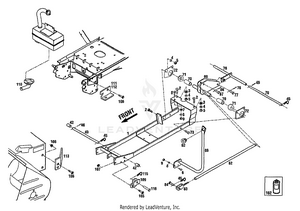

Troy-Bilt 14114 SUBFRAME Kit Tractor

Model: 14114 SUBFRAME KIT

Save
 Part Not Listed?Part Not Listed?
product name

SUBFRAME KIT

...
...
1
SUBFRAME ASSY MTD-1774073
...
2
SCREW 3/8-16 x 1 GR5 MTD-710-0514
...
3
Washer, Plain (flat) 3/8, S.A.E. MTD-736-3050
...
4
L-Wash. 3/8" I.D. MTD-736-0169
...
5
HEX NUT 3/8-16 GR5 MTD-712-3017
...
6
Hex Screw, 5/16-18 x 1.00 MTD-710-0376
...
7
FLAT WASHER MTD-736-0275
...
8
LOCK WASHER 5/16 MTD-936-0119
...
9
HEX NUT 5/16-18 MTD-712-3010
...
42
SPACER (14078) MTD-1825497
...
43
ROD-SUPPORT (14078) MTD-1825498
...
45
HITCH PIN MTD-1723478
...
46
Pin, Spring, 3/16 x 1.25 MTD-915-0246
...
69
ROD-LIFT WELDMENT (14078) MTD-1825499
...
70
TUBE-TORQUE (14078) MTD-1825500
...
71
BEARING-1" (14078) MTD-1825501
...
72
PLATE-END (14078) MTD-1825502
...
73
UNKNOWN MTD-NA
...
76
ASSM-LIFT (14078) MTD-1825503
...
77
PIN-CLEVIS .5X2.0 ZP MTD-1706419
...
78
Pin, Cotter, 1/8 x 1.00 MTD-714-0115
...
79
ROD-LIFT (14078) MTD-1825504
...
82
SHAFT-LIFT (14078) MTD-1825505
...
83
CLEVIS MTD-1825506
...
84
PIN-CLEVIS MTD-1713553
...
86
Pin, Cotter, 1/8 x 1.00 MTD-714-0115
...
87
PIN-CLEVIS MTD-1720869
...
88
HANDLE-SUPPORT MTD-1825507
...
92
GROMMET MTD-1825463
...
102
PAINT-POWDER BLACK MTD-788-0637A
...
105
SCREW 5/16-18 MTD-710-04043
...
106
SCR MTD-1186345
...
107
NUT-HFLK 5/16-18 ZP MTD-712-04054
...
108
NUT-HFLK 3/8-16 ZP MTD-1186393
...
109
ASSM-SUPT BRKT 1774015 MTD-1774019
...
110
Deflector, Muffler MTD-751-0564B
...
111
BRKT-SPRING RH MTD-1774059
...
112
BRKT-SPRING LH MTD-1774060
...
113
SHIELD-EXHAUST MTD-1774061
...
115
HITCH PIN MTD-1723478
...
116
PIN-CLEVIS MTD-1713553
...
...
...
