product name

Troy-Bilt 14112 38" COMBINATION Mower Deck Tractor

Model: 14112 38"" COMBINATION MOWER DECK

Save
 Part Not Listed?Part Not Listed?
product name

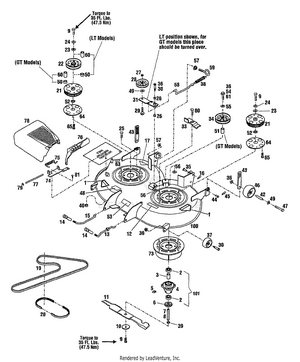

38" COMBINATION MOWER DECK

...
...
1
DECAL-OPEI CAUTION MTD-1739687
...
2
Ball Bearing MTD-1185574P
...
3
SPACER MTD-1746869
...
4
Mower Spindle MTD-1769048099
...
5
Fitting, Lube, 90ø 1/4-28 Tapper Thd MTD-737-3004
...
6
SPACER-BLADE MTD-1765029
...
7
Left Spindle Shaft (long) MTD-1918880
...
8
SHAFT-LONG SPINDLE (RH) MTD-1770962
...
9
SCR-HH 1/2-14X1.00 MTD-1765196
...
10
WASHER-BELLEVILLE MTD-1765197
...
11
MULCHING BLADE 38" DECK MTD-1910928001
...
12
NAME PLATE MTD-1773276
...
13
ROD-LIFT FRONT LH MTD-1766052
...
14
ROD-END MTD-1752554
...
15
ROD-LIFT FRONT RH MTD-1766051
...
16
HITCH PIN MTD-1723478
...
17
DECAL-OPEI MTD-1763823
...
19
BELT-V MTD-1739080
...
20
BELT-DRIVE 38" MTD-1773601
...
21
Cogged Pulley, 56T MTD-913-04050
...
22
SHEAVE ASSEMBLY. DRIVE MTD-1771870001
...
23
Flat Washer, .450 x 1.25 MTD-736-0322
...
24
Lock Washer, 7/16 MTD-736-0171
...
25
SCREW 5/16-18 x 1.00 MTD-710-0602
...
26
BUSHING-.5X.5 NYLON FLNG MTD-1715538
...
27
NUT-HFLK 3/8-16 ZP MTD-1186393
...
28
PULLEY-IDLER MTD-1764001
...
29
Screw-Hex 3/8-16 X MTD-710-0347
...
30
SCR-SHLDR 3/8-16 MTD-1763219
...
31
ASSM-IDLER ARM MTD-1770963
...
33
BRKT-BELT TENSIONER MTD-1911021001
...
34
PULLEY MTD-1749911
...
35
PIN-CLEVIS .625X2.25 MTD-1719367
...
36
Hex Lock Nut, 3/8-16 MTD-712-3000
...
37
WHEEL-GAGE MTD-1762138
...
38
SPRING MTD-1765899
...
39
RING-RETAINING EXT .694 ID MTD-1185649
...
40
NUT-TOP/LK 5/16-18 ZP MTD-1732499
...
42
SPACER-GAGE WHEEL MTD-1766342
...
43
LEVER-GAGE WHEEL ADJUST MTD-1766189001
...
44
PIN-CLEVIS .375 X .937 ZP MTD-1112587
...
45
Click Pin MTD-714-0145
...
46
Deck Wheel, 5" Dia. MTD-753-04856A
...
47
SCREW 3/8-16 x 3.50 GR5 MTD-710-3085
...
48
DECAL-BELT DRIVE MTD-1768540
...
49
Flat Washer, .406 x 1.0 x .105 MTD-736-3052
...
50
SPACER-1.25X.76X.50 MTD-1773608
...
51
SPACER MTD-1770992
...
52
HARDENED WASHER MTD-1766787
...
53
DECAL-LIFT ROD MTD-1768862
...
54
SCREW 3/8-16 x 3 GR8 MTD-710-0521
...
55
L-Wash. 3/8" I.D. MTD-736-0169
...
56
SPACER-SPECIAL 1/4 MTD-1760269
...
57
NUT-HFLK 5/16-18 ZP MTD-712-04054
...
58
ROD-IDLER MTD-1770960
...
59
BOLT-EYE SC MTD-1739796
...
60
SPACER-1.25X.77X.88 MTD-1773609
...
61
Screw-Hex 3/8-16 X MTD-710-0347
...
63
LABEL-DANGER CHUTE MTD-777S30503
...
64
PLATE-SPROCKET COVER MTD-1771922001
...
65
Screw, 1/4-10 x .625 MTD-710-04065
...
73
PLATE-DOUBLER MTD-1910948001
...
74
BRKT-DISCHARGE CHUTE MTD-1910951001
...
75
SPRING-TORSION MTD-1910971
...
76
ASSM-COVER MTD-1910950
...
76
ASSM-COVER MTD-1773643
...
77
PIN-DEFLECTOR ZP MTD-1910972
...
78
CHUTE-DISCHARGE MTD-1910943
...
79
PUSH NUT MTD-726-0135
...
80
SCREW 5/16-18 x .750 MTD-710-1260A
...
81
SCR-CARR 5/16-18X.75 G2 ZP MTD-1186098
...
100
BASE-MOWER 38" W/DECALS MTD-1773588
...
101
Mower Spindle MTD-1769048099
...
?102
PAINT-POWDER BLACK NOT INCLUDED WITH UNIT; ORDER SEPARATELY. MTD-788-0637A
...
...
...
