Troy-Bilt 14099 46" Snow Blade Tractor

Model: 14099 46"" Snow Blade

Save
 Part Not Listed?Part Not Listed?
product name

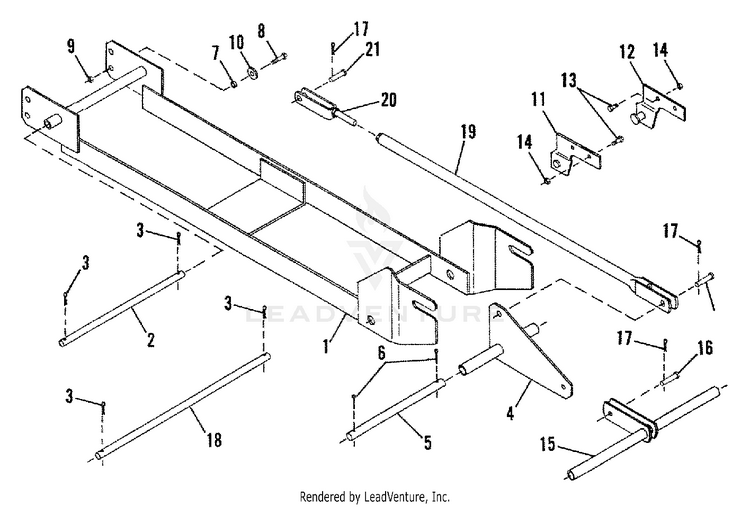

Frame

...
...
1
Mounting Frame Assembly MTD-1774165
...
2
Front Mounting Pin MTD-1774166
...
3
HITCH PIN MTD-1723478
...
4
Lift Pivot Assembly MTD-1774167
...
5
Lift Pivot Pin MTD-1774168
...
6
Cotter Pin-3/16 x 1-3/4 MTD-1100352
...
7
Spacer MTD-1774169
...
8
SCREW 3/8-16 x 1.25 GR5 MTD-710-3005
...
9
Hex Lock Nut, 1/2-13 MTD-712-3022
...
10
Flat Washer,.510 x 1.00 MTD-736-0326
...
11
LH Rear Mounting Bracket MTD-1774170
...
12
RH Rear Mounting Bracket MTD-1774171
...
13
Bolt-5/16-18 X 3/4 Hex MTD-1100044
...
14
Nut-5/16-18 Hex Lock MTD-1732499
...
15
Rear Lift Link Assembly MTD-1774172
...
16
Clevis Pin MTD-1705593
...
17
PIN-CLIP MTD-1717897
...
18
Rear Lift Pin MTD-1774173
...
19
Lift Tube Assembly MTD-1774174
...
20
Adjusting Clevis MTD-1774175
...
21
Clevis Pin MTD-1724632

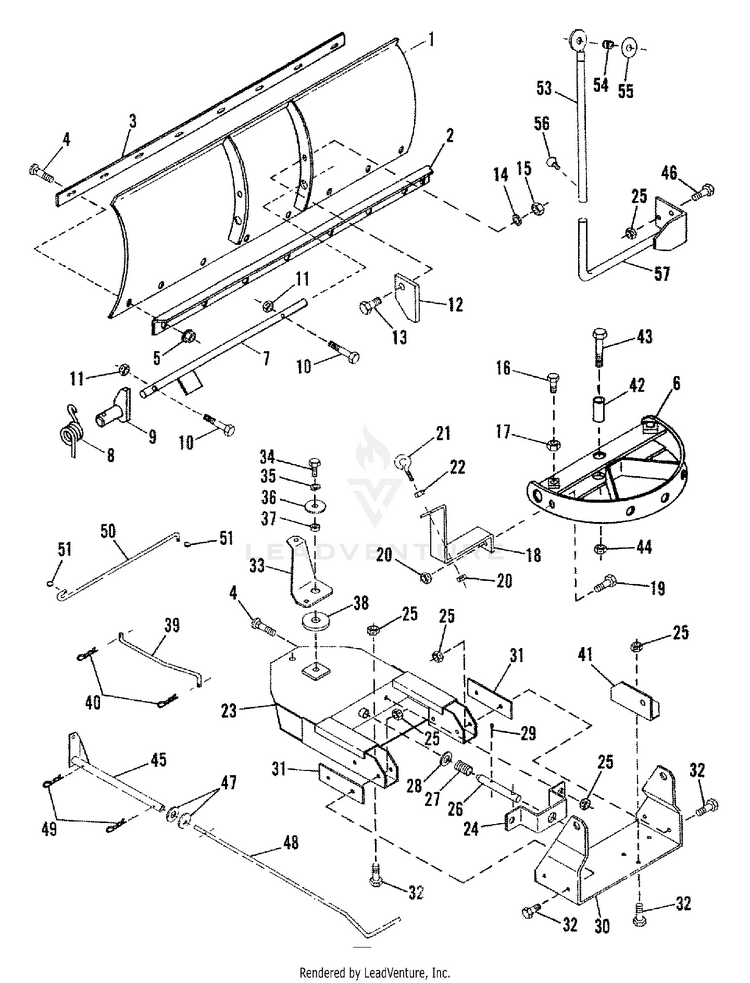

General Assembly

...
...
1
Blade Assembly 46" MTD-1774150
...
2
Blade Back up Angle 46" MTD-1774151
...
3
Scraper Blade 46" MTD-1774152
...
4
Bolt-5/16 x 3/4 Carriage MTD-1186098
...
5
NUT-HFLK 5/16-18 ZP MTD-712-04054
...
6
Pivot Quadrant Assembly MTD-1774153
...
7
Breakover Pin Assembly MTD-1773361
...
8
Torsion Spring MTD-1773362
...
9
Spring Anchor Assembly MTD-1773363
...
10
Hex Bolt 1/4-20 x 1.50 MTD-710-0606
...
11
Hex Lock Nut, 1/4-20 MTD-712-0291
...
12
Blade Stop Strap MTD-1773364
...
13
Bolt-5/8-11 x 1-1/4 MTD-1773365
...
14
Washer-5/8" Med. Lock MTD-1100247
...
15
Nut, 5/8 Jam Type 5 MTD-712-3015
...
16
Hex Cap Screw, 1/2-13 x 1.5 MTD-710-3181
...
17
Nut, Hex Jam, 1/2-13 GR5 MTD-712-3048
...
18
Pivot Control Bracket MTD-1773367
...
19
SCREW 3/8-16 x 1 GR5 MTD-710-0514
...
20
Hex Lock Nut, 3/8-16 MTD-712-3000
...
21
Eye Bolt-3/8-16 x 2" MTD-1773368
...
22
HEX NUT 3/8-16 GR5 MTD-712-3017
...
23
Pivot Bracket Assembly MTD-1774154
...
24
Lock Pin Bracket MTD-1773358
...
25
Nut-5/16-18 Hex Lock MTD-1732499
...
26
Lock Pin MTD-1773359
...
27
Coupler Spring MTD-1773360
...
28
Washer, Flat, .65 x 1.25 x .075 MTD-736-0237
...
29
Cotter Pin-1/8" x 1-1/4" MTD-1100351
...
30
Mounting Bracket MTD-1774155
...
31
Strap MTD-1774156
...
32
Hex Screw, 5/16-18 x 1.00 MTD-710-0376
...
33
Pivot Release Bracket MTD-1774157
...
34
Screw-Hex 3/8-16 X MTD-710-0347
...
35
L-Wash. 3/8" I.D. MTD-736-0169
...
36
Flat Washer MTD-1805077
...
37
Spacer MTD-1773370
...
38
Flat Washer MTD-1774158
...
39
Lock Pin Release Rod MTD-1774159
...
40
PIN-CLIP MTD-1717897
...
41
Lift Bracket MTD-1774160
...
42
Spacer MTD-1773375
...
43
SCREW-HEX 1/2-13 X 3.00 MTD-710-0182A
...
44
Hex Lock Nut, 1/2-13 MTD-712-3022
...
45
Pivot Control Arm MTD-1774176
...
46
Bolt-5/15-18 x 3/4 Hex 3 MTD-1100044
...
47
Washer-19/32 x 1-3/16 MTD-1185023
...
48
Control Handle Rod MTD-1774161
...
49
PIN-CLIP MTD-1717897
...
50
Pivot Release Rod MTD-1773374
...
51
RING COTTER MTD-1751908
...
53
Control Support Assembly MTD-1774162
...
54
Control Rod Guide Bushing MTD-1773332
...
55
Angling Control Decal MTD-1774163
...
56
Thumb Screw MTD-1773334
...
57
Control Rod Support Assembly MTD-1774164
...
?58
Owner's/Instruction Manual MTD-1774113
...
...
...
