product name

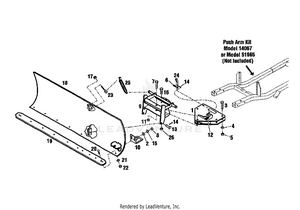

Troy-Bilt 14068-01 54" Snow Blade Tractor

Model: 14068-01 54"" SNOW BLADE

Save
 Part Not Listed?Part Not Listed?
product name

54" SNOW BLADE

...
...
1
ASSM-HITCH MTD-1731057001
...
2
Washer, Plain (flat) 3/8, S.A.E. MTD-736-3050
...
3
SCR-HH 1/2-13X2.5 G5 ZP MTD-1100056
...
4
Lock Washer, 1/2 MTD-736-0921
...
5
Hex Lock Nut, 1/2-13 MTD-712-3022
...
6
PIN-DRIVE .125X1.0 MTD-1704692
...
7
SCR-HH 5/8-11X3.0 G5 MTD-1107073
...
8
HEX NUT 3/8-16 GR5 MTD-712-3017
...
9
ASSM-PLATE MTD-1731053001
...
10
SHOE-SKID MTD-1715754001
...
11
Nut, Hex Jam 5/8-11 MTD-912-0261
...
12
SPRING MTD-1700401
...
13
PIN-CLEVIS .5X1.06 ZP MTD-1708125
...
14
Cotter Pin MTD-714-0474
...
15
L-Wash. 3/8" I.D. MTD-736-0169
...
16
SCR-HH 3/8-16X2.75 G5 ZP MTD-1100770
...
17
NUT-TOP/LK 5/16-18 ZP MTD-1732499
...
18
BLADE-SNOW MTD-1719089001
...
19
BLADE-SCRAPER MTD-1719090001
...
20
SCR-CARR 5/16-18X1.0 G2 ZP MTD-1186100
...
21
LOCK WASHER 5/16 MTD-936-0119
...
22
HEX NUT 5/16-18 MTD-712-3010
...
23
BOLT-EYE 5/16-18X2.75 ZP MTD-1713077
...
24
PIN-LATCH MTD-1714830
...
25
SPRING-EXT MTD-1714844001
...
26
Hex Lock Nut, 3/8-16 MTD-712-3000
...
...
...
