Troy-Bilt 12AV839N766 (2005) Self Propelled Mower

Model: 12AV839N766 (2005)

Save
 Part Not Listed?Part Not Listed?
product name

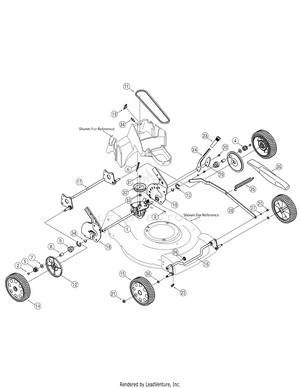

Drive

...
...
1
TRANSMISSION SERVICE KIT MTD-753-05351
...
2
Screw, M6 x 1.0 MTD-710-04223
...
3
Dowel Pin MTD-915-0221
...
4
Spur Gear - LH MTD-917-04184C
...
5
Spur Gear - RH MTD-917-04192C
...
6
Extension Spring .38" O.D. x 3.18" Lg. MTD-932-0409
...
7
Flat Washer, .51 x 1.120 x .062 MTD-736-3084
...
8
Sleeve Bearing, .502 x .627 x 1.00 MTD-741-0710
...
9
Transmission Bearing Support MTD-748-04073C
...
10
Clip Spacer MTD-750-04317
...
11
V-Belt MTD-954-04093
...
12
Wheel Dust Cover MTD-782-7551A
...
13
Transmission Cable Bracket MTD-787-01262
...
14
Fr. Wheel 8 Yellow MTD-753-08092
...
15
WHEEL KIT IDLE 8 x 2 MTD-753-08091
...
16
Front Bracket Assembly MTD-687-02133
...
17
KIT-REPLACEMENT MTD-753-05953
...
18
HANDLE BRACKET ASSEMBLY (RH) MTD-987-02148
...
19
HANDLE BRACKET ASSEMBLY (LH) MTD-987-02149
...
20
Screw, 1/4-20 x .500 MTD-710-0599
...
21
Flange Lock Nut, 3/8-16 MTD-712-04065
...
22
Cotter Pin MTD-714-04023
...
23
Grip MTD-720-0223
...
24
Spring Lever MTD-732-04261
...
25
Extension Spring, .500 ID x 6.85 Lg MTD-732-04271
...
26
Split Hex Flange Bearing MTD-741-04136B
...
27
SHOULDER SCREW 1/4-20X.50 19PSH" MTD-738-04278
...
28
CROSS BRACKET MTD-787-01235A
...
29
Stop Bracket MTD-787-01251
...
30
Retaining Ring .875 MTD-716-0198
...
31
Hex Lock Nut, 5/16-24 MTD-712-0411
...
32
Pulley, 3.36 OD MTD-956-04151
...
33
Bell Washer, .375 x .870 x .063 MTD-736-0105
...
34
Plastic Rivet MTD-728-0199
...
34
Retaining Ring .875 MTD-716-0198
...
35
SPRING COVER BRACKET MTD-731-05237A
...
36
WAVE WASHER MTD-936-0504

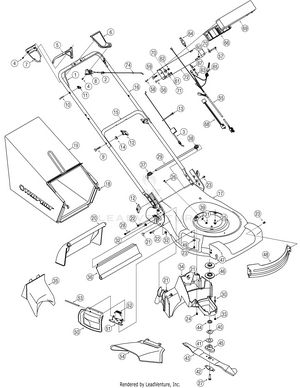

General Assembly

...
...
1
Blade Control MTD-747-1161A
...
2
DRIVE CABLE MTD-946-04195
...
3
Control Cable 45" MTD-946-04213
...
4
C Sunk Tap Screw #10 x .75 Lg MTD-710-1667A
...
5
Drive Lever MTD-731-0620A
...
6
Mounting Cable Cap MTD-753-0833
...
7
Mounting Cable Cap MTD-753-0833
...
8
Mounting Cable Cap MTD-753-0833
...
9
Carriage Bolt, 5/16-18 x 2.0 MTD-710-1174
...
10
Eye Bolt MTD-710-1205
...
11
Wing Nut MTD-720-0279
...
12
Handle Knob MTD-720-0284
...
13
Cable Tie MTD-725-0157
...
14
Saddle Washer, .320 x .93 x .060 MTD-736-0451
...
15
LOWER HANDLE MTD-749-04202-0637
...
16
Upper Handle MTD-749-04209B-0637
...
17
21'' Deck MTD-787-01213
...
18
Grass Catcher Frame MTD-647-04051B-0637
...
19
Grass Catcher MTD-964-04045
...
20
Rear Door MTD-931-05017A
...
21
Carriage Bolt, 5/16-18 x .62 MTD-710-0260A
...
22
Screw, 1/4-15 x 1.00 MTD-710-1241
...
23
TT Screw, 1/4-20 x .500 MTD-710-0599
...
24
TT Screw, 1/4-20 x .375 MTD-710-0653
...
25
Screw, 3/8-16 x 1.00 MTD-710-0654A
...
26
Carriage Screw, 1/4-20 x .75 MTD-710-0703
...
27
Screw, 3/8-24 x 1.50 MTD-710-1044
...
28
Screw, 1/4-20 x 2.00 MTD-710-1802
...
29
Door Pivot Rod MTD-711-04374
...
30
Belt Guard Pin MTD-911-0993
...
31
Flange Lock Nut, 1/4-20 MTD-712-04064
...
32
HEX FLANGE NUT MTD-712-3004A
...
33
LOCK NUT 1/4 MTD-912-3027
...
34
Deck Baffle MTD-731-05463A
...
35
Mulch Plug MTD-731-05157
...
36
TRAILSHIELD MTD-731-05185C
...
37
Door Torsion Spring - RH MTD-732-04264
...
38
Door Torsion Spring - LH MTD-732-04265
...
39
Flat Washer, .25 x .630 x .0515 MTD-736-0463
...
40
Spr. Wash. .890 x .7x .04 MTD-936-0513
...
41
Flat Washer, .885 x 1.850 x .060 MTD-736-0514
...
42
BLADE BELL SUPPORT MTD-736-0524B-1
...
43
Blade MTD-942-0741A
...
44
Engine Spacer MTD-748-0358
...
45
Blade Adapter MTD-748-0376E
...
46
Lower Engine Pulley MTD-956-04156B
...
47
Upper Engine Pulley MTD-956-04157B
...
48
BAFFLE REPLACEMENT KIT (787-01224) MTD-753-06213B
...
49
SPRING WASHER BELL MTD-736-0270
...
50
Hinged Mulch Plug Assembly MTD-987-02055
...
51
Deflector Chute Adapter MTD-17032A
...
52
TORSION SPRING MTD-732-1014C
...
53
HINGE PIN MTD-747-0710A
...
54
Side Discharge Chute MTD-731-04177
...
55
Electric Starter Harness Assembly (If equipped) MTD-725-1442
...
56
Screw, 1/4-20 x 1.25 (If equipped) MTD-710-0111
...
57
Screw, 1/4-20 x 1.75 (If equipped) MTD-710-0136
...
58
Screw, #12-16 x 1.00 (If equipped) MTD-710-0969
...
59
Curved Carriage Bolt, 5/16 x 1.5 (If equipped) MTD-710-1250
...
60
Hex Lock Nut, 1/4-20 (If equipped) MTD-712-0324
...
61
HEX NUT MTD-712-3006
...
62
HEX NUT 5/16-18 MTD-712-3010
...
63
7.5 Amp Fuse MTD-925-0298
...
64
Key Switch MTD-925-0873
...
65
Plug MTD-925-1206
...
66
12 Volt Battery MTD-925-1276
...
67
Fuse Holder MTD-925-1428
...
68
Ext Harness (If equipped) MTD-725-1538
...
69
Upper Battery Tray (If equipped) MTD-731-0891A
...
70
Bell Washer, .340 x .872 x .060 (If equipped) MTD-736-0242
...
71
SPRING WASHER BELL MTD-736-0270
...
72
Lower Battery Tray MTD-782-9012-0637
...
73
Battery Charger MTD-925-0727
...
74
Rubber Gromet MTD-735-0226
...
...
...
