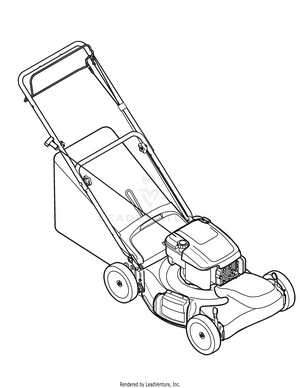

Troy-Bilt 12AI832Q711 (2010) Self Propelled Mower

Model: 12AI832Q711 (2010)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference 12AI832Q

...
...
xx
SPLG:1ST FIRE:RP CHAMP:N11/12 MTD-FF-22
...
xx
Pre Filter MTD-NA
...
xx
Air Filter MTD-17211-ZL8-023
...
xx
Fuel Filter MTD-NA
...
xx
Fuel Cap MTD-17620-ZL8-023
...
xx
Control Cable MTD-946-04438
...
xx
Drive Cable MTD-946-04440
...
xx
Choke Cable MTD-NA
...
xx
Belt MTD-954-04176A
...
xx
Blade Adapter MTD-748-04096
...
xx
Blade MTD-942-0741A
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Blade Bolt MTD-710-1044
...
xx
Fr. Wheel 8 Yellow MTD-753-08092
...
xx
Fr. Wheel 8 Yellow MTD-753-08092
...
xx
Trailshield MTD-731-05462A
...
xx
Discharge Chute MTD-731-04177
...
xx
Mulch Plug MTD-987-02055
...
xx
Grass Bag MTD-964-04101
...
xx
Grass Bag Frame MTD-647-04051B-0637
...
xx
Key MTD-NA
...
xx
Key Switch MTD-NA
...
xx
Battery MTD-NA
...
xx
Battery Charger MTD-NA

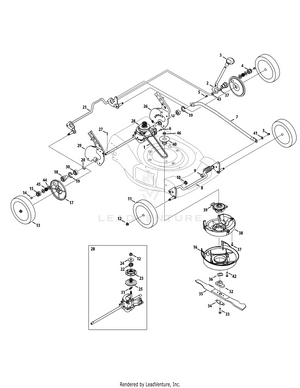

Drive Assembly 12AI832Q

...
...
1
V-Belt MTD-954-04176A
...
2
Spring Lever MTD-732-04338C
...
3
Height Adjuster Knob - Red MTD-720-04113
...
4
SPUR GEAR 11T (LH) MTD-917-04540B
...
5
Shldr. Screw, 1/4-20 x 0.50 MTD-738-04278
...
6
Screw, HL, 1/4-15 x .750 MTD-710-0895
...
7
Cross Bracket MTD-749-04267B-0637
...
8
Front Bracket Assembly MTD-687-02204B-0637
...
9
Clip Spacer MTD-731-05470
...
10
Split Hex Flange Bearing MTD-741-04136B
...
11
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) MTD-753-08175
...
12
Flange Lock Nut, 3/8-16 MTD-712-04065
...
13
Fr. Wheel 8 Yellow MTD-753-08092
...
14
Screw, 1/4-20 x .39 MTD-710-04531
...
15
SPUR GEAR 11T (RH) MTD-917-04539B
...
16
Baffle MTD-731-06284
...
17
Wheel Dust Cover MTD-731-06974
...
18
Transmission Bearing Support MTD-687-02415
...
19
Clip Spacer MTD-731-05872
...
20
Retaining Ring .875 MTD-716-0198
...
21
Rear Bracket Assembly MTD-687-02314A-0637
...
22
Compression Spring MTD-732-04630
...
23
Upper Pulley MTD-756-04316A
...
24
Flat Washer, .442 x 1.38 x .060 MTD-936-0406
...
25
Lower Pulley MTD-756-04317A
...
26
Handle Bracket - LH MTD-687-02322
...
27
Dowel Pin MTD-915-0221
...
28
Transmission Assembly MTD-918-04826A
...
29
Handle Bracket Assembly RH MTD-687-02323-0637
...
30
Bearing Support Spacer MTD-748-0390
...
31
Extension Spring MTD-732-04313
...
32
Blade Adapter MTD-748-04096
...
33
Screw, 3/8-24 x 1.50 MTD-710-1044
...
34
BLADE BELL SUPPORT MTD-736-0524B-1
...
35
21" Mulching Blade MTD-942-0741A
...
36
Wave Washer MTD-736-0447
...
37
TT Screw, 1/4-20 x .500 MTD-710-0599
...
38
Engine Baffle MTD-731-06112A
...
39
LOWER PULLEY MTD-956P04046
...
40
Pulley, Half MTD-756-04311A
...
41
Wash., Wave, .385 ID x .598 OD MTD-736-04413
...
42
Screw, 1/4-15 x 1.250 MTD-710-04774
...
43
Washer, Bell, .340 x .872 x .080 MTD-736-0242
...
44
Flat Washer, .508 x 1.0 x .020 MTD-736-0369
...
45
Spr, Wave MTD-732-04650
...
46
Spcr., 25mm x 1.375 MTD-750-05007

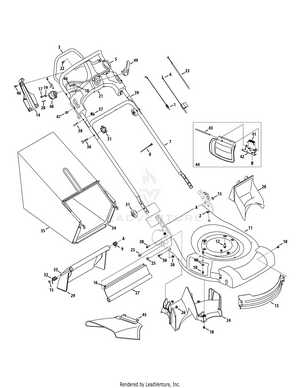

General Assembly 12AI832Q

...
...
1
Drive Cable MTD-946-04440
...
2
Rubber Grommet MTD-735-04059
...
3
Drive Control MTD-747-05548
...
4
Shift Spring MTD-732-04516
...
5
Blade Control MTD-747-04995
...
6
Control Cable MTD-946-04438
...
7
Lower Handle MTD-749-04555
...
8
Cable Tie MTD-725-0157
...
9
Torsion Spring, LH MTD-732-04535
...
10
TT Screw, 1/4-20 x .500 MTD-710-0599
...
11
21-inch Deck MTD-787-01618-0638
...
12
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
13
Front Deck Baffle MTD-987-01834
...
14
Variable Spd. Cont. Panel Cover MTD-731-06304
...
15
Speed Nut MTD-726-0201
...
16
Screw, #10-16 x .500 MTD-710-0779A
...
17
Screw, 1/4-15 x .750 MTD-710-0895
...
18
Flat Washer .265 x .938 x .120 MTD-736-0176
...
19
FLAT WASHER MTD-736-0275
...
20
Dowel Pin MTD-715-04073
...
21
Variable Speed Control Panel MTD-631-04323
...
22
Screw, TT, 1/4-20 x .750 MTD-710-0642
...
23
Variable Speed Cable MTD-946-04439A
...
24
Rear Baffle MTD-731-06173
...
25
Screw, 5/16-18 x .625 MTD-710-3025
...
26
Flange Lock Nut, 5/16-18 MTD-712-04063
...
27
Trail Shield MTD-731-05462A
...
28
Rear Mulching Baffle MTD-731-05157
...
29
Rear Door MTD-731-05702A
...
30
Screw, 1/4-15 x 1.00 MTD-710-1241
...
31
Star Knob MTD-720-04072A
...
32
Torsion Spring, RH MTD-732-04534
...
33
Door Pivot Rod MTD-747-05034
...
34
Grass Catcher Frame MTD-647-04051B-0637
...
35
Grass Catcher MTD-964-04101
...
36
Carriage Bolt, 5/16-18 x 2.00 MTD-710-1174
...
37
Wing Nut MTD-720-0279
...
38
Eye Bolt MTD-710-1205
...
39
Upper Handle MTD-749-04607-0637
...
40
SPRING WASHER BELL MTD-736-0270
...
41
TORSION SPRING MTD-732-1014C
...
42
Chute Deflector Adapter MTD-17032A
...
43
HINGE PIN MTD-747-0710A
...
44
Mulch Plug Assembly MTD-987-02055
...
45
Side Discharge Chute MTD-731-04177
...
46
Screw, #12-16 x .75 MTD-710-04373A
...
47
Screw, AB, 1/4-14 x .625 MTD-710-0896
...
48
4 Speed Actuator MTD-731-06189
...
49
Speed Selector Lever MTD-731-06193A

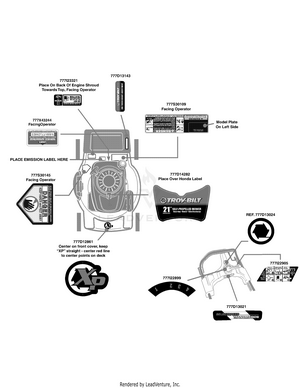

Label Map 12AI832Q

...
...
777I23321
LABEL-10W30 OIL/NO E85 MTD-777I23321
...
777X43244
LABEL-LOWE'S SERVICE ADVANTAGE MTD-777X43244
...
777S30145
LABEL MTD-977S30145
...
777D12861
LABEL-MOWER TROY XP MTD-777D12861
...
777I22899
LABEL-MOWER XP HANDLE SELECT MTD-777I22899
...
777D13021
LABEL-MOWER HANDLE SELECT TROY MTD-777D13021
...
777I22905
LABEL-MOWER HANDLE HONDA MTD-777I22905
...
777D13024
LABEL-TROYBILT/GEAR MTD-777D13024
...
777D14282
LABEL-MWR:SHD:HON:M217/SP:TB MTD-777D14282
...
777S30109
LABEL-MOWER DANGER MTD-777S30109
...
777D13143
LABEL-MOWER TRAILSHIELD TROY MTD-777D13143
...
...
...
