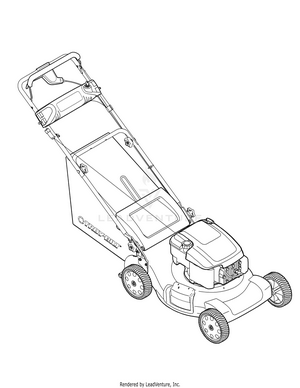

Troy-Bilt 12AG836E766 (2006) Self Propelled Mower

Model: 12AG836E766 (2006)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338
...
xx
Pre Filter MTD-BS-493537S
...
xx
AIR FILTER MTD-BS-491588S
...
xx
Fuel Filter MTD-BS-298090S
...
xx
Control Cable 45" MTD-946-04213
...
xx
Drive Control Cable MTD-946-04265A
...
xx
Choke Cable MTD-NA
...
xx
V-Belt MTD-954-04093
...
xx
Blade Adapter MTD-748-0376E
...
xx
Blade MTD-942-0741A
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Blade Bolt MTD-710-1044
...
xx
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) MTD-753-08175
...
xx
Fr. Wheel 8 Yellow MTD-753-08092
...
xx
Hub Cap MTD-NA
...
xx
Trailshield MTD-731-05462A
...
xx
Discharge Chute MTD-731-04177
...
xx
Mulch Plug MTD-987-02055
...
xx
Grass Catcher MTD-964-04045
...
xx
Grass Catcher Frame MTD-647-04051B-0637
...
xx
Key MTD-925-0201
...
xx
Key Switch MTD-925-04347
...
xx
BATTERY REPLACEMENT KIT MTD-753-10804
...
xx
BATTERY CHARGER MTD-725-06121C

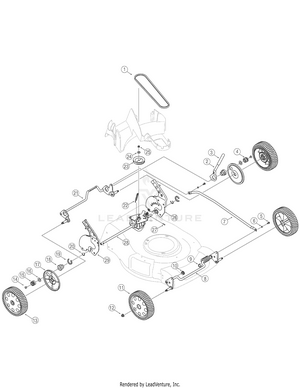

Drive and Wheels

...
...
1
V-Belt MTD-954-04093
...
2
Spring Lever MTD-732-04338C
...
3
Foam Grip MTD-720-0230
...
4
Spur Gear - LH MTD-917-04184C
...
5
TT Screw, 1/4-20 x 0.50 MTD-710-0599
...
6
SHOULDER SCREW 1/4-20X.50 19PSH" MTD-738-04278
...
7
Cross Bracket MTD-749-04267B-0637
...
8
FRONT BRACKET ASSEMBLY MTD-687-02204B
...
9
Clip Spacer MTD-731-05470
...
10
Split Hex Flange Bearing MTD-741-04136B
...
11
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) MTD-753-08175
...
12
Flange Lock Nut, 3/8-16 MTD-712-04065
...
13
Fr. Wheel 8 Yellow MTD-753-08092
...
14
Screw, 1/4-20 x .39 MTD-710-04531
...
15
Spur Gear - RH MTD-917-04192C
...
16
Flat Washer MTD-736-3084
...
17
Wheel Dust Cover MTD-782-7551A
...
18
Transmission Bearing Support MTD-748-04073C
...
19
Clip Spacer MTD-750-04317
...
20
Retaining Ring .875 MTD-716-0198
...
21
Rear Bracket Assembly MTD-753-05865
...
22
Extension Spring, .38 x 3.25 MTD-932-0320
...
23
Pulley, 3.36 OD MTD-956-04151
...
24
Bell Washer, .375 x .870 x .063 MTD-736-0105
...
25
Hex Lock Nut, 5/16-24 MTD-712-0411
...
26
Handle Bracket Assembly LH MTD-753-05861
...
27
Dowel Pin MTD-915-0221
...
28
Transmission Assembly MTD-918-04378B
...
29
SERVICE REPLACEMENT KITLAC MTD-753-05862

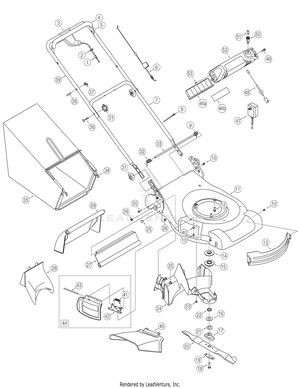

General Assembly

...
...
1
Drive Control Cable MTD-946-04265A
...
2
Rubber Grommet MTD-735-04059
...
3
KIT MTD-753-06060A
...
4
Bail Cover MTD-731-04204
...
5
Blade Control MTD-747-1161A
...
6
Control Cable 45" MTD-946-04213
...
7
Lower Handle MTD-749-04037
...
8
Cable Tie MTD-725-0157
...
9
Torsion Spring, LH MTD-732-04265
...
10
TT Screw, 1/4-20 x .500 MTD-710-0599
...
11
21-inch Deck MTD-787-01591
...
12
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
13
Front Deck Baffle MTD-987-01834
...
14
Upper Engine Pulley MTD-956-04157B
...
15
Lower Engine Pulley MTD-956-04156B
...
16
Flat Washer, .885 x 1.850 x.060 MTD-736-0514
...
17
Blade Adapter MTD-748-0376E
...
18
Screw, 3/8-24 x 1.50 MTD-710-1044
...
19
BLADE BELL SUPPORT MTD-736-0524B-1
...
20
Blade MTD-942-0741A
...
21
Spr. Wash. .890 x .7x .04 MTD-936-0513
...
22
Sleeve Spacer .88 ID x 1.13 OD MTD-950-1071
...
23
TT Screw, 1/4-20 x .375 MTD-710-0653
...
24
Deck Baffle MTD-731-05463A
...
25
Carriage Bolt, 5/16-18 x .62 MTD-710-0260A
...
26
Flange Lock Nut, 5/16-18 MTD-712-04063
...
27
Trailshield MTD-731-05462A
...
28
Mulch Plug MTD-731-05157
...
29
Rear Door MTD-931-05017A
...
30
Screw, 1/4-15 x 1.00 MTD-710-1241
...
31
STAR KNOB 5/16-18 MTD-720-04072A
...
32
Torsion Spring, RH MTD-732-04264
...
33
Door Pivot Rod MTD-711-04374
...
34
Grass Catcher Frame MTD-647-04051B-0637
...
35
Grass Catcher MTD-964-04045
...
36
Carriage Bolt, 5/16-18 x 2.00 MTD-710-1174
...
37
Wing Nut MTD-720-0279
...
38
Eye Bolt MTD-710-1205
...
39
Upper Handle MTD-749-04209B-0637
...
40
SPRING WASHER BELL MTD-736-0270
...
41
TORSION SPRING MTD-732-1014C
...
42
Chute Deflector Adapter MTD-17032A
...
43
HINGE PIN MTD-747-0710A
...
44
Mulch Plug Assembly MTD-987-02055
...
45
Side Discharge Chute MTD-731-04177
...
46a
12 Volt Battery MTD-925-1276
...
46b
BATTERY REPLACEMENT KIT MTD-753-10804
...
47
BATTERY CHARGER MTD-725-06121C
...
48
Electric Starter Harness MTD-925-04072
...
49
Rivet MTD-728-0199
...
50
Key Switch MTD-925-04347
...
51
Key MTD-925-0201
...
52
ELECTRIC START HARNESS ASSEMBLY MTD-625-04030
...
52
Electric Starter Harness MTD-925-04072
...
53
Screw, #10-16 x .750 MTD-710-1667A
...
...
...
