Troy-Bilt 12A-566N063 Tuff-Cut 210 (2003) Push Mower

Model: 12A-566N063 Tuff-Cut 210 (2003)

Save
 Part Not Listed?Part Not Listed?
product name

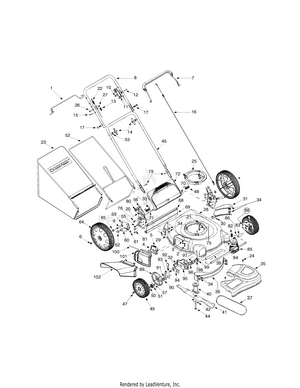

General Assembly

...
...
1
Lower Bail Handle MTD-747-2136-0637
...
2
TT Screw 1/4-20 x 0.5 MTD-710-0599
...
3
SPRING WASHER BELL MTD-736-0270
...
4
Hinged Mounting Bracket MTD-782-7006
...
5
TORSION SPRING MTD-732-1014C
...
6
Flange Lock Nut 3/8-16 MTD-712-3005
...
7
Control Lever MTD-647-04014
...
8
Upper Handle MTD-749-1499-0637
...
9
Axle: Rear Order Ref No 59 MTD-NA
...
10
Hex Lock Nut, 1/4-20 MTD-712-0324
...
11
Throttle Housing MTD-746-0883
...
12
Oval C-Sunk Screw 1/4-20 x 1.31 MTD-710-1270
...
13
Handle Knob MTD-720-0279
...
14
Handle Knob MTD-720-04072A
...
15
Eye Bolt MTD-710-1205
...
16
Control Cable: 40.5" MTD-946-0554
...
16
CONTROL CABLE 40.75" MTD-946-1132
...
17
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174
...
18
RH Bracket Assembly MTD-987-02034
...
18
LH Bracket Assembly MTD-987-02032
...
20
Hairpin Clip MTD-714-0104
...
21
Self-Tapping Sems Screw MTD-710-1008
...
22
CONTROL CABLE MTD-946-04026
...
22
51" CONTROL CABLE MTD-946-04203
...
23
Grass Bag MTD-964-04007A
...
24
Shoulder Screw # 12 -24 MTD-710-1650
...
25
Engine Spacer MTD-631-0075B
...
26
Hex Bolt 1/4-20 x 1.5 MTD-710-0606
...
27
Lock Nut 1/4-20 MTD-712-0324
...
28
21" Deck MTD-787-01278-0638
...
29
RH Rear Baffle MTD-782-5003A
...
30
Screw AB: 1/4-14: .625 MTD-710-1017
...
31
LH Rear Baffle MTD-782-5004B
...
32
Hex Screw 3/8-16 x .75 MTD-710-0216
...
33
Torsion Spring - LH (not shown) MTD-732-04089A
...
34
Hex Nut 3/8-16 MTD-912-0431
...
35
Transmission Cover MTD-931-05132A
...
36
FRONT BAFFLE MTD-782P5002B
...
37
V-Belt MTD-954-0637A
...
38
Hex Nut 1/4-20 MTD-712-0324
...
39
Sleeve Spacer 10.1" Lg. MTD-750-1210
...
40
Blade Adapter w/ Pulley MTD-948-04015A
...
41
Blade MTD-942-0741A
...
42
BLADE BELL SUPPORT MTD-736-0524B-1
...
43
Hex Screw 1/4-20 x 1.50 MTD-710-0606
...
44
Hex Screw 3/8-24 x 2.50 MTD-710-1257
...
45
Lower Handle MTD-749-0907B
...
47
Flange Lock Nut MTD-912-0431
...
48
Torsion Spring - RH MTD-732-04090A
...
49
Wheel 8 x 2.125 MTD-734-04018C
...
50
Snap Ring MTD-716-0865
...
51
Gear 14T LH FWD MTD-717-1761
...
51
Gear 14T RH FWD Not shown MTD-717-1762
...
52
Grass Bag Frame MTD-747-04080A
...
53
Saddle Washer MTD-736-0451
...
54
Flange Lock Nut 3/8-16 MTD-712-3005
...
55
Hex Scr. w/Washer 1/4-14 x .625 MTD-710-0896
...
56
RH Handle Bracket MTD-987-02056
...
56
LH Handle Bracket MTD-987-02057
...
57
Dowel Pin MTD-915-0221
...
58
Pan Head Screw MTD-710-0286
...
59
Pivot Bar RH MTD-987-02335
...
60
Height Adj. Lever MTD-732-0866
...
61
Foam Grip MTD-720-0312
...
62
Shoulder Screw, .5D x .434 MTD-738-0507B
...
63
Washer .401 x .870 x .063 MTD-736-0105
...
64
Wheel, 14 x 2.125 MTD-734-04019
...
65
Spring Washer .50 I.D. x 1.0 O.D. MTD-736-0182
...
66
FLAT WASHER .510 x .995 MTD-736-0272
...
67
Shoulder Screw MTD-938-0481A
...
68
TRAILSHIELD WIRE MTD-732P0700
...
69
Rear Trailing Shield MTD-731-04998
...
70
Pivot Rod MTD-747-0996
...
71
Torsion Spring - RH MTD-732-04090A
...
72
Rear Discharge Door MTD-931-04134
...
75
Shoulder Screw MTD-710-1650
...
76
Machine Screw MTD-710-0286
...
77
Spacer .375 x .50 x 1.02" Lg. MTD-950-04162
...
78
Shoulder Screw 1/4-14 MTD-738-1002
...
79
Carriage Bolt 1/4-20 MTD-710-0703
...
80
WING NUT MTD-712-0397A
...
81
Hex Bolt 3/8-16 x 1.0" MTD-710-0216
...
82
Belt Tension Spring MTD-732-1043
...
83
Slev. Spacer 2.1" Lg. MTD-750-1166
...
84
Input Pulley MTD-756-1231
...
85
Transmission Assembly MTD-753-05465
...
86
Roll Pin MTD-715-0169
...
88
Height Adjustment Assembly RH MTD-987-02194A
...
88
Height Adjustment Ass’y - LH Not shown MTD-987-02193A
...
89
Wheel Dust Cap MTD-782-7551A
...
90
Snap Ring MTD-716-0102
...
91
Washer MTD-736-0474
...
92
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
93
Front Lever RH MTD-732-0706
...
93
Front Lever LH Not shown MTD-732-0707
...
94
Pivot Plate Assembly MTD-987-02044
...
95
Height Adj. Plate RH MTD-782-0512B-0637
...
95
Height Adj. Plate LH Not shown MTD-782-0511A-0637
...
96
Wave Washer MTD-736-0447
...
97
Bearing Support MTD-748-0355
...
98
Bearing Sleeve MTD-741-0604A
...
99
Bearing Retainer MTD-732-0708
...
100
HINGE PIN MTD-747-0710A
...
101
Mulch Plug Comp. MTD-987-02055
...
102
Chute Deflector MTD-731-04177
...
xx
7" CABLE TIE Not shown MTD-725-0157
...
...
...
