product name

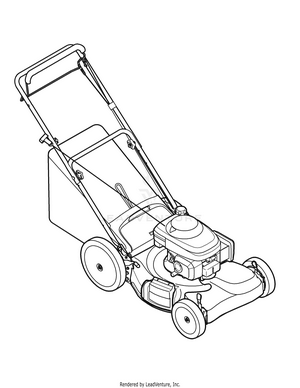

Troy-Bilt 12A-562Q711 (2009) Self Propelled Mower

Model: 12A-562Q711 (2009)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
SPLG:1ST FIRE:RP CHAMP:N11/12 MTD-FF-22
...
xx
Pre Filter MTD-NA
...
xx
Air Filter MTD-17211-ZL8-023
...
xx
Fuel Filter MTD-NA
...
xx
Control Cable - 40.75" MTD-946-1132
...
xx
51" CONTROL CABLE MTD-946-04203
...
xx
Drive Belt MTD-954-0637A
...
xx
Blade Adapter MTD-748-04082
...
xx
Blade MTD-942-0741A
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Blade Bolt MTD-710-1257
...
xx
Wheel 8 x 2.125 MTD-734-04018C
...
xx
REAR WHEEL12X2.1 MTD-734-04019
...
xx
Hub Cap MTD-NA
...
xx
Trailshield MTD-731-05642A
...
xx
Discharge Chute MTD-731-04177
...
xx
Mulch Plug MTD-987-02055
...
xx
Grass Bag MTD-964-04007A
...
xx
Grass Bag Frame MTD-747-04080A

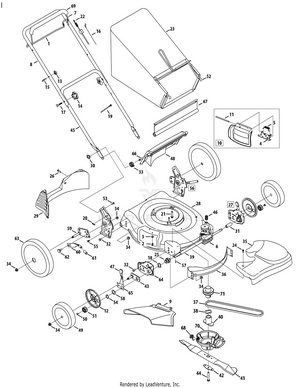

General Assembly

...
...
1
Drive Control MTD-747-1214
...
2
TT Screw 1/4-20 x 0.5 MTD-710-0599
...
3
SPRING WASHER BELL MTD-736-0270
...
4
Deflector Chute Adapter MTD-17032A
...
5
TORSION SPRING MTD-732-1014C
...
6
Transmission Assembly MTD-918-04376B
...
7
Blade Control MTD-747-1161A-0637
...
8
Upper Handle MTD-749-1092A-0637
...
9
Chute Deflector MTD-731-04177
...
10
Mulch Plug Complete MTD-987-02055
...
11
HINGE PIN MTD-747-0710A
...
12
Wheel Dust Cap MTD-782-7551A
...
13
Handle Knob MTD-720-0279
...
14
STAR KNOB 5/16-18 MTD-720-04072A
...
15
Eye Bolt MTD-710-1205
...
16
Control Cable - 40.75" MTD-946-1132
...
17
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174
...
18
Wave Washer MTD-736-0447
...
19
7" CABLE TIE MTD-725-0157
...
20
Hairpin Clip MTD-714-0104
...
21
Self-Tapping Sems Screw MTD-710-0654A
...
22
51" CONTROL CABLE MTD-946-04203
...
23
Grass Bag MTD-964-04007A
...
24
Shoulder Screw # 12 -24 MTD-710-1650
...
25
Front Bearing Assembly MTD-987-02347
...
26
Screw, 1/4-15 x 1.000 MTD-710-1241
...
27
Height Adjustment Ass’y - RH MTD-987-02194A
...
27
Height Adjustment Ass’y - LH MTD-987-02193A
...
28
21" Deck MTD-787-01278-0638
...
29
Rear Baffle MTD-731-04150C
...
30
WING NUT MTD-712-0397A
...
31
Slev. Spacer 1.4" Lg. MTD-750-04595
...
32
Hex Screw, 3/8-16 x.75 MTD-710-0216
...
33
Torsion Spring - RH MTD-732-04090A
...
34
Flange Lock Nut, 3/8-16 MTD-712-04065
...
35
Transmission Cover MTD-931-05020A
...
36
FRONT BAFFLE MTD-782P5002B
...
37
V-Belt MTD-954-0637A
...
38
Washer, Wave, 1.351 x 1.051 x .015 MTD-736-04389
...
39
Sleeve Spacer 8.985" Lg. MTD-750-04594
...
40
Blade Adapter MTD-748-04082
...
41
Blade MTD-942-0741A
...
42
BLADE BELL SUPPORT MTD-736-0524B-1
...
43
Pivot Plate Assembly MTD-987-02334
...
44
Hex Screw 3/8-24 x 2.50 MTD-710-1257
...
45
Lower Handle MTD-749-0928A-0637
...
46
Belt Tension Spring MTD-732-1043
...
47
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
48
Rear Discharge Door MTD-731-06847
...
49
Wheel 8 x 2.125 MTD-734-04018C
...
50
Screw, 1/4-20 x .390 MTD-710-04531
...
51
Gear 14T RH FWD MTD-717-1762
...
51
Gear 14T LH FWD MTD-717-1761
...
52
Grass Bag Frame MTD-747-04080A
...
53
Carriage Bolt 1/4-20 MTD-710-0703
...
54
Snap Ring MTD-716-0102
...
55
TT Scr. w/Washer 1/4-20 x.625 MTD-710-1652
...
56
Handle Bracket Assembly - LH MTD-987-02280A
...
56
Handle Bracket Assembly - RH MTD-987-02279A
...
57
Dowel Pin MTD-915-0221
...
58
Washer, Flat, 1.01 x 1.50 x .035 MTD-736-0474
...
59
Pivot Arm Assembly - RH MTD-987-02335
...
59
Pivot Arm Assembly - LH MTD-987-02336
...
60
Rear Spring Lever MTD-732-0866
...
61
Foam Grip MTD-720-0312
...
62
Shoulder Scr.500 Dia. x.434 MTD-738-04266
...
63
REAR WHEEL12X2.1 W/O Bearing MTD-734-04019
...
63
REAR WHEEL12X2.1 MTD-734-04019
...
64
Height Adjuster Plate - RH MTD-787-01298A-0637
...
64
Height Adjuster Plate - LH MTD-787-01299A-0637
...
65
Front Lever - RH MTD-732-0706
...
65
Front Lever - LH MTD-732-0707
...
66
Pivot Rod MTD-747-04588
...
67
Rear Trailing Shield MTD-731-05642A
...
68
Engine Baffle Bracket MTD-787-01593
...
69
Deluxe Bail Cover MTD-731-04204
...
70
Engine Baffle MTD-753-06116
...
71
Pulley Assembly, Drive MTD-656-04045A

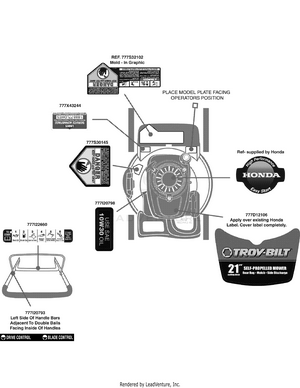

Label Map

...
...
777S32102
LABEL-MOWER:DISCHRG DOOR SAFETY Mold in Graphic MTD-NA
...
777X43244
LABEL-LOWES:SERVICELBL MTD-NA
...
777S30145
LABEL MTD-977S30145
...
777I20798
LABEL-SHROUD MTD-777I20798
...
777I22660
LABEL-MOWER HANDLE:START INSTR MTD-777I22660
...
777I20793
LABEL-HANDLE MTD-777I20793
...
777D12106
LABEL-MOWER SHROUD TROY MTD-777D12106
...
...
...
