Troy-Bilt 11A-54K3066 (2010) Push Mower

Model: 11A-54K3066 (2010)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338
...
xx
SPARK PLUG RJ19LM MTD-759-3338
...
xx
SPLG:1ST FIRE:RP CHAMP:N11/12 MTD-FF-22
...
xx
Pre Filter - B&S MTD-BS-493537S
...
xx
Pre Filter - Kohler MTD-NA
...
xx
Pre Filter - Honda MTD-NA
...
xx
AIR FILTER MTD-BS-491588S
...
xx
AIR CLEANER ELEMENT MTD-1408301S1C
...
xx
Air Filter - Honda MTD-17211-ZL8-023
...
xx
Fuel Filter - B&S MTD-NA
...
xx
Fuel Filter - Kohler MTD-NA
...
xx
Fuel Filter - Honda MTD-NA
...
xx
Fuel Cap MTD-BS-796577
...
xx
Fuel Cap - Kohler MTD-KH-14-227-04-S
...
xx
Fuel Cap MTD-17620-ZL8-023
...
xx
Control Cable - 11A-54K3 MTD-946-04299
...
xx
CONTROL CABLE 37.58" MTD-946-04661A
...
xx
Control Cable (Honda) MTD-946-04670A
...
xx
Blade Adapter - 11A-54K3 Only MTD-748-0377E
...
xx
Blade Adapter MTD-748-04096
...
xx
Blade MTD-942-0741A
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Blade Bolt - 11A-54K3 Only MTD-710-1257
...
xx
Blade Bolt MTD-710-1044
...
xx
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) MTD-753-08175
...
xx
Wheels - Front MTD-634-04607
...
xx
REAR WHEEL12X2.1 MTD-734-04019
...
xx
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) MTD-753-08175
...
xx
Trailshield- 11A-54K3 Only MTD-731-05642A
...
xx
Trailshield MTD-731-07203
...
xx
Discharge Chute- 11A-54K3 Only MTD-731-04177
...
xx
Discharge Chute MTD-731-07131
...
xx
Mulch Plug- 11A-54K3 Only MTD-987-02055
...
xx
21" MULCH PLUG (HINGED) MTD-687-06029
...
xx
Grass Bag- 11A-54K3 Only MTD-964-04007A
...
xx
21" GRASSBAG (TROY WHITE) MTD-964-04117C
...
xx
Grass Bag Frame MTD-747-04080A
...
xx
Grass Bag Frame MTD-647-04271-0637

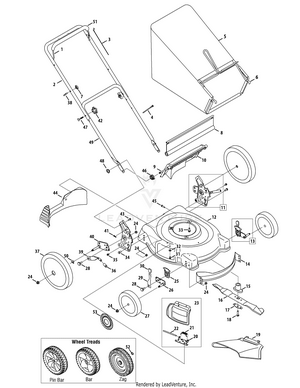

General Assembly 11A-54K3

...
...
1
Blade Control MTD-747-1161A-0637
...
2
Upper Handle MTD-749-1092A-0637
...
3
Control Cable, 48" MTD-946-04299
...
4
7" CABLE TIE MTD-725-0157
...
5
Grass Bag - w/o Logo MTD-964-04007A
...
6
Grass Bag Frame MTD-747-04080A
...
7
Handle Knob MTD-720-0279
...
8
Trail Shield MTD-731-05642A
...
9
Pivot Rod MTD-747-04588
...
10
Rear Discharge Door MTD-731-06847
...
11
Rear Handle Bracket Assy. - LH MTD-987-02280A
...
11
Rear Handle Bracket Assy. - RH MTD-987-02279A
...
12
Deck 21-inch MTD-787-01279-0638
...
13
Front Hgt. Adj. Assy., 8" Whl. - LH MTD-987-02511
...
13
Front Hgt. Adj. Assy., 8" Whl. - RH MTD-987-02510
...
14
FRONT BAFFLE MTD-782P5002B
...
15
Blade Adapter - Briggs & Stratton MTD-748-0377E
...
16
21-inch Mulching Blade MTD-942-0741A
...
17
BLADE BELL SUPPORT MTD-736-0524B-1
...
18
Hex Screw, 3/8-24 x 2.5 MTD-710-1257
...
19
Side Discharge Chute MTD-731-04177
...
20
Deflector Chute Adaptor MTD-17032A
...
21
TORSION SPRING MTD-732-1014C
...
22
HINGE PIN MTD-747-0710A
...
23
Mulch Plug Assembly MTD-987-02055
...
24
Flange Lock Nut 3/8-16 MTD-712-04065
...
25
Height Adjustment Plate MTD-787-01290A
...
26
Pivot Arm Assy RH (8" wheel) MTD-987-02509
...
26
Pivot Arm Assy LH (8" wheel) MTD-987-02508
...
27
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) MTD-753-08175
...
28
Shoulder Scr., .5D x .385 MTD-738-04266
...
29
Front Spring Lever MTD-94832
...
30
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
31
TT Screw, 1/4-20 x .500 MTD-710-0599
...
32
SPRING WASHER BELL MTD-736-0270
...
33
TT Screw, 3/8-16 x 1.0 MTD-710-0654A
...
34
Hex Screw, 3/8-16 x .75 MTD-710-0216
...
35
TT Screw, 1/4-20 x .625 MTD-710-1652
...
36
Foam Grip MTD-720-0312
...
37
REAR WHEEL12X2.1 MTD-734-04019
...
38
Eye Bolt MTD-710-1205
...
39
Rear Hi-Wheel Spring Lever MTD-732-0866
...
40
Rear Pivot Arm Assy - RH MTD-987-02335
...
40
Rear Pivot Arm Assy - LH MTD-987-02336
...
41
Hairpin Clip MTD-714-0104
...
42
Star Knob MTD-720-04072A
...
43
Carriage Bolt ,1/4-20 x .75 MTD-710-0703
...
44
Rear Baffle MTD-731-04150C
...
45
Screw HL, 1/4-15 x 1.00 MTD-710-1241
...
46
Torsion Spring - RH MTD-732-04090A
...
47
Carriage Bolt, 5/16-18 x 2 MTD-710-1174
...
48
WING NUT MTD-712-0397A
...
49
Lower Handle MTD-749-0928A-0637
...
50
Spring Washer If Equipped MTD-736-0182
...
51
Deluxe Bail Cover - Black If Equipped MTD-731-2626
...
52
Wave Washer, .510 x .750 x .017 If Equipped MTD-936-0504
...
53
Hub Cap If Equipped MTD-731-07001

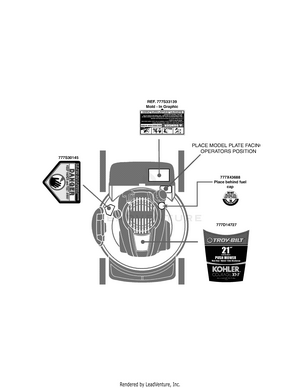

Label Map 11A-56K3

...
...
777S30145
LABEL MTD-977S30145
...
777S33139
LABEL :MWR:BAG DOOR:IN-MOLD:DO Mold In Graphics MTD-NA
...
777X43688
LABEL-ETHANOL MTD-777X43688
...
777D14727
LABEL :MWR:SHD/KOH:STY:21TBILT MTD-777D14727
...
...
...
