Troy-Bilt 11A-439R766 (2005) Push Mower

Model: 11A-439R766 (2005)

Save
 Part Not Listed?Part Not Listed?
product name

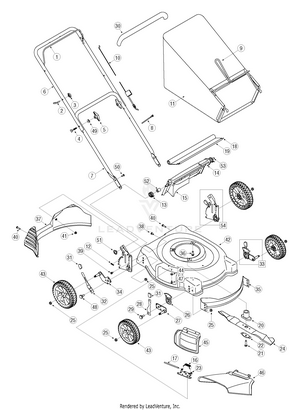

General Assembly

...
...
1
Control Handle MTD-747-1161A
...
2
Rope Guide MTD-710-1205
...
3
Handle Knob 1/4-20 Thd. MTD-720-0279
...
4
Curved Hd. Bolt 5/16-18 x 2" MTD-710-1174
...
5
Hand Knob MTD-720-0284
...
6
Upper Handle MTD-749-1092A
...
7
Lower Handle MTD-749-0928A-0637
...
8
7" CABLE TIE MTD-725-0157
...
9
Grass Bag Frame MTD-747-04080A
...
10
Control Cable 40" MTD-946-1130
...
11
Grass Bag MTD-964-04007A
...
12
Int. Cotter Pin 5/16" Dia. MTD-714-0104
...
13
Door Spring - R.H. MTD-732-04090A
...
14
Door Spring - L.H. MTD-732-04089A
...
15
Grass Bag Door MTD-753-06366
...
16
TORSION SPRING MTD-732-1014C
...
17
HINGE PIN MTD-747-0710A
...
18
TRAILSHIELD WIRE MTD-732P0700
...
19
Rear Flap MTD-731-04998
...
20
Blade Adapter MTD-748-0377E
...
21
Hex Bolt 3/8-24 x 2.5" Lg. MTD-710-1257
...
22
BLADE BELL SUPPORT MTD-736-0524B-1
...
23
Deflector Chute Adapter MTD-17032A
...
24
Blade MTD-942-0741A
...
25
Hex Flange Nut 3/8-16 MTD-912-0431
...
26
Height Adj. Plate MTD-15261C
...
27
Pivot Arm Assembly - RH MTD-987-02076A
...
xx
Pivot Arm Assembly - LH MTD-987-02077A
...
28
Spring Lever MTD-94832
...
29
Shld. Bolt.5" Dia. x.357" MTD-738-0507B
...
30
Deluxe Bail Cover MTD-731-04204
...
31
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
32
Rear Spring Lever MTD-732-04175
...
33
Front Height Adjuster Assembly - RH MTD-987-02074B
...
xx
Front Height Adjuster Assembly - LH MTD-987-02075B
...
34
Pivot Arm Assembly - RH MTD-987-02071A
...
xx
Pivot Arm Assembly - LH MTD-987-02070A
...
35
FRONT BAFFLE MTD-782P5002B
...
36
Hex L-Wash.Scr. 3/8-16 x 1" MTD-710-0654A
...
37
Rear Baffle MTD-731-04150C
...
38
Screw, 1/4-20 x.500" MTD-710-0286
...
39
Hex Ind Wash. Scr. 1/4-20:.625 MTD-710-1652
...
40
Screw, 1/4-15 x 1.250 MTD-710-04371
...
41
Flange Lock Nut, 1/4-20 MTD-712-04064
...
42
21" Deck MTD-787-01231
...
43
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) MTD-753-08175
...
44
SPRING WASHER BELL MTD-736-0270
...
45
Hinged Mulch Plug Assembly MTD-987-02055
...
46
Side Chute Deflector MTD-731-04177
...
47
Hex Hd Self-Tp Scr. 1/4-20 x.5" MTD-710-0599
...
48
Shoulder Screw MTD-738-04136
...
49
Shoulder Washer MTD-736-0451
...
50
Hex Carriage Screw 1/4-20 MTD-710-0703
...
51
WING NUT MTD-712-0397A
...
52
Spacer.375 x.50 x 1.02 MTD-950-04162
...
53
Grass Bag Door MTD-753-06366
...
54
RH Handle Bracket Assembly MTD-753-05994
...
xx
RH Handle Bracket Assembly MTD-753-05994
...
...
...
