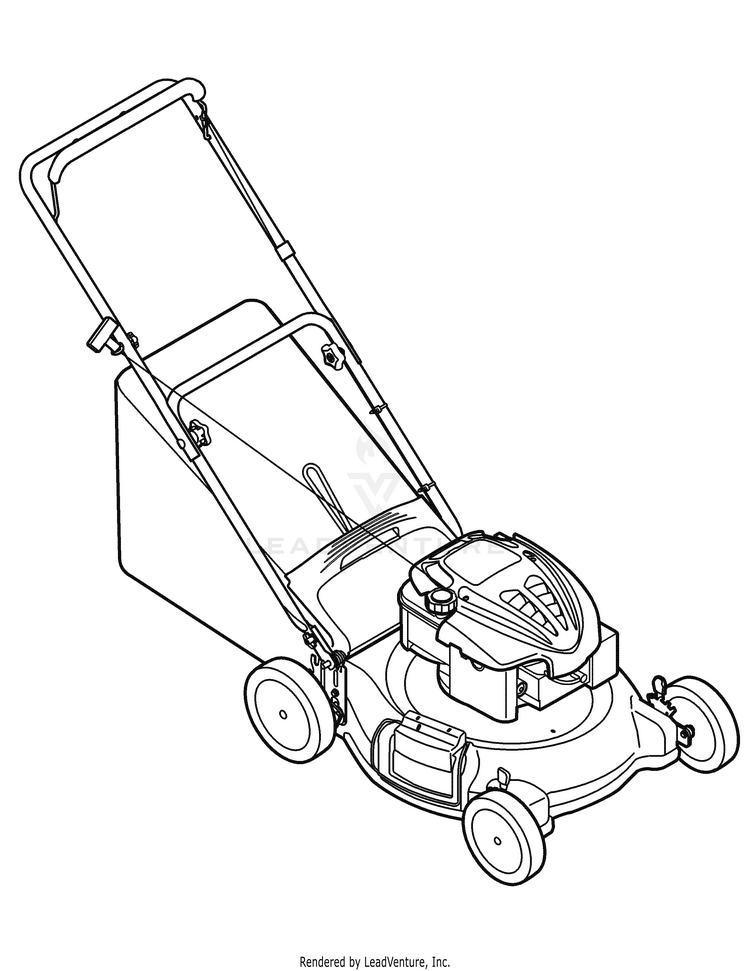

Troy-Bilt 11A-436N266 (2008) Push Mower

Model: 11A-436N266 (2008)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM 802592S MTD-759-3338
...
xx
Pre-Filter MTD-BS-493537S
...
xx
AIR FILTER MTD-BS-491588S
...
xx
Fuel Cap MTD-BS-796577
...
xx
Drive Belt MTD-NA
...
xx
Control Cable 40" (brake) MTD-946-1130
...
xx
Drive Cable MTD-NA
...
xx
Blade MTD-942-0741A
...
xx
Blade Bolt MTD-710-1257
...
xx
Blade Adapter MTD-748-04082
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) (Front) MTD-753-08175
...
xx
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) (Back) MTD-753-08175
...
xx
Ignition Key MTD-NA
...
xx
Grass Bag MTD-964-04007A
...
xx
Grass Bag Frame MTD-747-04080A
...
xx
Trailshield MTD-731-05642A
...
xx
Rear Discharge Door MTD-731-06847
...
xx
Hinged Mulch Plug Assembly MTD-987-02055

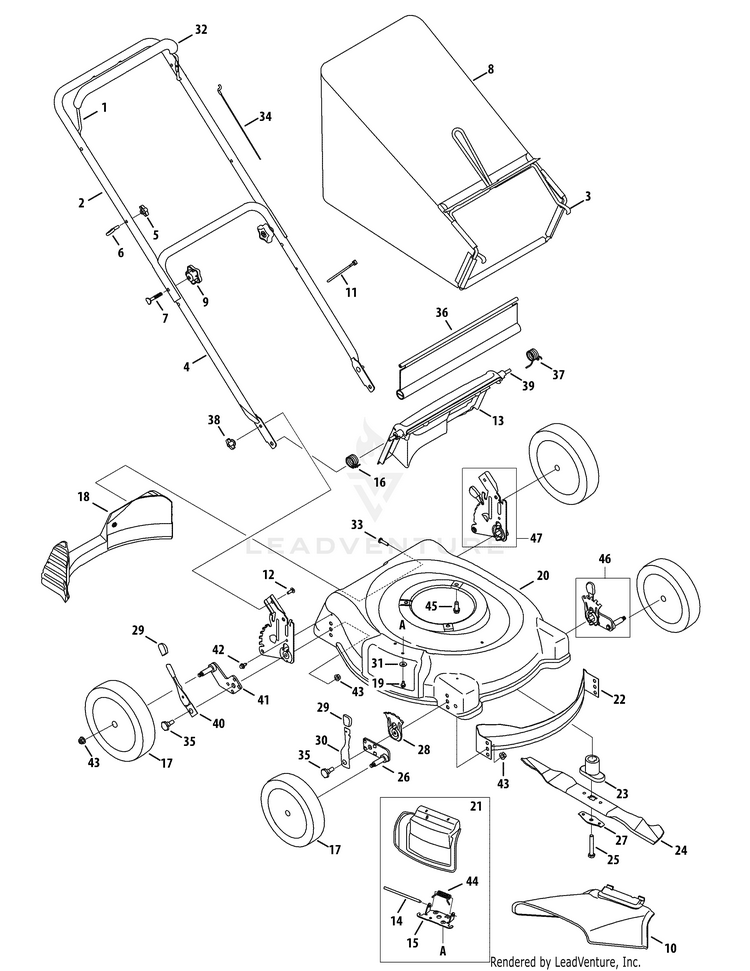

General Assembly

...
...
1
Blade Control Handle MTD-747-1161A
...
2
Upper Handle MTD-749-1092A
...
3
Grass Catcher Frame MTD-747-04080A
...
4
Lower Handle MTD-749-0928A-0637
...
5
Wing Nut MTD-720-0279
...
6
Rope Guide MTD-710-1205
...
7
Carriage Bolt ,5/16-18 x 2 MTD-710-1174
...
8
Grass Bag MTD-964-04007A
...
9
STAR KNOB 5/16-18 MTD-720-04072A
...
10
Side Chute MTD-731-04177
...
11
7" CABLE TIE MTD-725-0157
...
12
Carriage Bolt ,1/4-20 MTD-710-0703
...
13
Rear Discharge Door MTD-731-06847
...
14
HINGE PIN MTD-747-0710A
...
15
Deflector Chute Adaptor MTD-17032A
...
16
Torsion Spring - RH MTD-732-04090A
...
17
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) MTD-753-08175
...
17
HUBCAP MTD-731-06999
...
18
Rear Baffle MTD-731-04150C
...
19
Screw, 1/4-20 x .500 MTD-710-0599
...
20
Deck - 21" MTD-787-01279
...
21
Hinged Mulch Plug Assembly MTD-987-02055
...
22
FRONT BAFFLE MTD-782P5002B
...
23
Blade Adapter, 25mm x 2.15 MTD-748-04082
...
23
Blade Adapter If Equipped MTD-748-0377E
...
24
Blade MTD-942-0741A
...
25
Hex Screw , 3/8-24 x 2.5 MTD-710-1257
...
26
Pivot Arm Assy RH (8" wheel) MTD-987-02337
...
26
Pivot Arm Assy LH (8" wheel) MTD-987-02338
...
27
BLADE BELL SUPPORT MTD-736-0524B-1
...
28
Height Adjustment Plate MTD-787-01290A
...
29
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
30
Spring Lever MTD-94832
...
31
SPRING WASHER BELL MTD-736-0270
...
32
Bail Cover If Equipped MTD-731-04204
...
33
Screw, 1/4-15 x 1.000 MTD-710-1241
...
34
Control Cable 40" MTD-946-1130
...
35
Shoulder Screw MTD-738-04266
...
36
Trailshield MTD-731-05642A
...
37
Torsion Spring - LH MTD-732-04089A
...
38
WING NUT MTD-712-0397A
...
39
Rear Door Pivot Rod MTD-747-04587
...
40
Spring Lever MTD-732-04175
...
41
Pivot Arm Assembly - RH MTD-987-02333
...
41
Pivot Arm Assembly - LH MTD-987-02332
...
42
AB Screw MTD-710-1652
...
43
Flange Lock Nut, 3/8-16 MTD-712-04065
...
44
TORSION SPRING MTD-732-1014C
...
45
TT Sems Screw, 3/8-16 x 1.0 MTD-710-0654A
...
46
Front Height Adjuster Assembly - LH MTD-987-02075B
...
46
Front Height Adjuster Assembly - RH MTD-987-02074B
...
47
Handle Bracket Assembly - LH MTD-987-02270A
...
xx
Handle Bracket Assembly - RH MTD-987-02271A
...
...
...
