product name

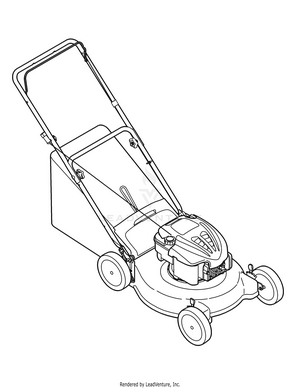

Troy-Bilt 11A-429R766 (2006) Push Mower

Model: 11A-429R766 (2006)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338
...
xx
Pre-Filter MTD-BS-493537S
...
xx
AIR FILTER MTD-BS-491588S
...
xx
Fuel Filter MTD-BS-298090S
...
xx
Control Cable 40" MTD-946-1130
...
xx
Choke Cable MTD-NA
...
xx
Blade Adapter MTD-748-0377E
...
xx
Blade MTD-942-0741A
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Blade Bolt MTD-710-1257
...
xx
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) MTD-753-08175
...
xx
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) MTD-753-08175
...
xx
Trailshield MTD-731-04998
...
xx
Grass Bag Door MTD-753-06366
...
xx
Mulch Plug MTD-NA
...
xx
Grass Bag MTD-964-04007A
...
xx
Grass Bag Frame MTD-747-04080A

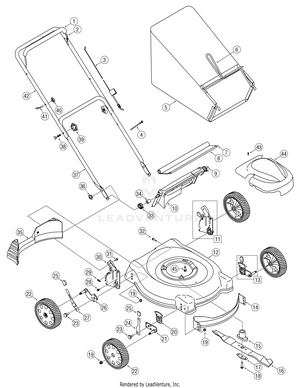

General Assembly

...
...
1
Blade Control Handle Cover MTD-731-04204
...
2
Blade Control Handle MTD-747-1161A
...
3
Control Cable 40" MTD-946-1130
...
4
7" CABLE TIE MTD-725-0157
...
5
Grass Bag MTD-964-04007A
...
6
Grass Bag Frame MTD-747-04080A
...
7
TRAILSHIELD WIRE MTD-732P0700
...
8
Trailshield MTD-731-04998
...
9
Grass Bag Door MTD-753-06366
...
10
Grass Bag Door MTD-753-06366
...
11
RH Handle Bracket Assembly MTD-753-05994
...
11
RH Handle Bracket Assembly MTD-753-05994
...
12
21-inch Deck MTD-787-01276
...
13
Front Height Adjuster Assembly - RH MTD-987-02074B
...
13
Front Height Adjuster Assembly - LH MTD-987-02075B
...
14
FRONT BAFFLE MTD-782P5002B
...
15
Blade Adapter MTD-748-0377E
...
16
Blade MTD-942-0741A
...
17
BLADE BELL SUPPORT MTD-736-0524B-1
...
18
HH Cap Screw, 3/8-24 x 2.50 MTD-710-1257
...
19
Flange Lock Nut, 3/8-16 MTD-712-04065
...
20
Height Adjustment Plate MTD-787-01290A
...
21
Pivot Arm Assembly - RH MTD-987-02076A
...
21
Pivot Arm Assembly - LH MTD-987-02077A
...
22
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) MTD-753-08175
...
23
Shoulder Screw .500 x .434 MTD-738-0507B
...
24
Spring Lever MTD-94832
...
25
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
26
Pivot Arm Assembly - LH MTD-987-02070A
...
26
Pivot Arm Assembly - RH MTD-987-02071A
...
27
Spring Lever MTD-732-02078
...
28
TT Screw 1/4-20 x .625 MTD-710-1652
...
29
Hairpin Clip MTD-714-0104
...
30
RH Handle Bracket Assembly MTD-753-05994
...
30
RH Handle Bracket Assembly MTD-753-05994
...
31
Carriage Bolt, 1/4-20 MTD-710-0703
...
32
HL Screw 1/4-15 x 1.00 MTD-710-04371
...
33
Torsion Spring - LH MTD-732-04089A
...
33
Torsion Spring - RH MTD-732-04090A
...
34
Spacer.375 x.50 x 1.02 MTD-950-04162
...
35
Rear Baffle MTD-731-04150C
...
36
WING NUT MTD-712-0397A
...
37
Lower Handle MTD-749-0928A-0637
...
38
Carriage Bolt, 5/16-18 x 2 MTD-710-1174
...
39
STAR KNOB 5/16-18 MTD-720-04072A
...
40
Handle Knob MTD-720-0279
...
41
Eye Bolt MTD-710-1205
...
42
Upper Handle MTD-749-1092A
...
43
HL Screw #8-18 x 1.25 MTD-710-1256
...
44
Engine Shrd B&S Quantum MTD-BS-790037
...
45
TT Screw 3/8-16 x 1 MTD-710-0654A
...
...
...
