Tecumseh TVS600-661069N 2-Cycle Vertical

Model: TVS600-661069N

Save
 Part Not Listed?Part Not Listed?
product name

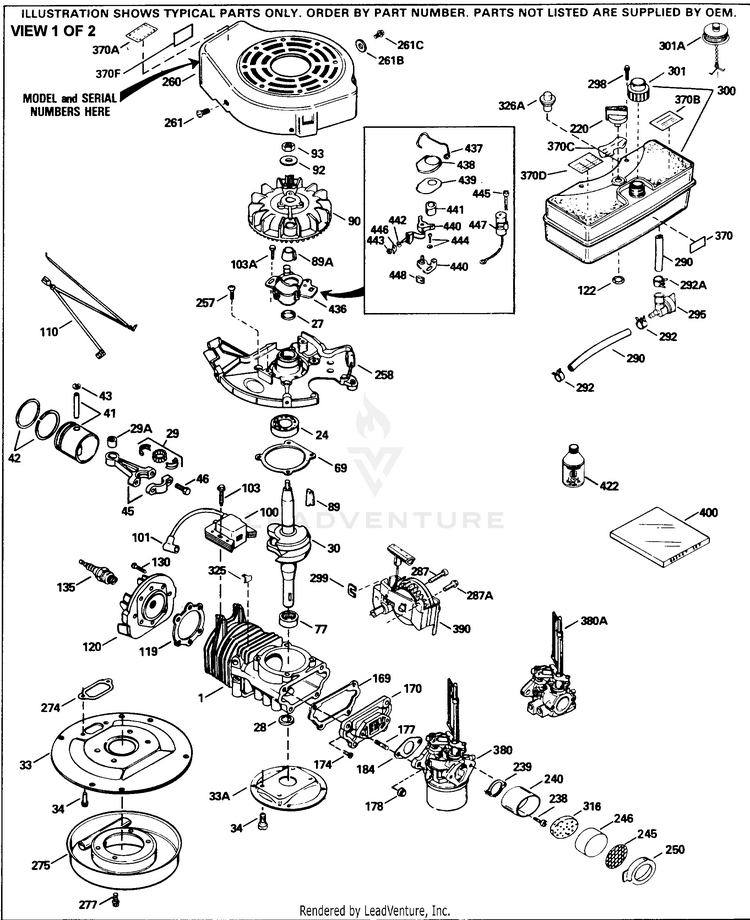

Engine Parts List #1

...
...
24
BEARING TPC-530110
...
27
OIL SEAL TPC-510319
...
28
OIL SEAL TPC-28427
...
29
BEARING TPC-530150A
...
29A
BEARING TPC-530104A
...
30
ADAPTER TPC-330177
...
30
CRANKSHAFT TPC-290646
...
34
SCREW TPC-650797
...
41
PISTON & PIN 10 TPC-310272A
...
41
PISTON & PIN TPC-310283A
...
42
RING SET TPC-310289A
...
42
RING SET 010 TPC-310273
...
43
RET RING TPC-310167
...
45
CONN ROD TPC-310235C
...
46
SCREW TPC-650633
...
69
GASKET TPC-510292A
...
77
Cartridge Bearing TPC-780097
...
89A
SPACER TPC-611032
...
90
FLYWHEEL TPC-611112
...
92
WASHER TPC-650815
...
93
NUT TPC-650390
...
100
LAMINATION TPC-34443D
...
100
KIT TPC-730207
...
101
PLUG COVER TPC-610118
...
103
SCREW TPC-651007
...
110
GROUND WIRE TPC-611061
...
119
GASKET TPC-510274A
...
120
CYL HEAD TPC-250240B
...
130
SCREW TPC-650477
...
135
SPARK PLUG TPC-33636
...
169
GASKET TPC-510323A
...
170
REED PLATE TPC-470152A
...
174
SCREW TPC-650579
...
178
NUT TPC-29752
...
184
GASKET TPC-510110A
...
257
SCREW TPC-650911
...
258
HOUSING BASE TPC-350427
...
260
BLOWER HSG TPC-350418
...
261C
SCREW TPC-650773
...
261B
WASHER TPC-650854
...
261
SCREW TPC-650958
...
274
GASKET TPC-510314A
...
275
MUFFLER COVER TPC-390300
...
277
SCREW TPC-650911
...
290
FUEL LINE TPC-29774
...
292
CLAMP TPC-26460
...
298
SCREW TPC-650803
...
300
FUEL TANK TPC-410241
...
301
FUEL CAP TPC-410238
...
326A
PLUG TPC-570663
...
370A
DECAL--Discontinued TPC-550223
...
370B
DECAL TPC-550213
...
370F
DECAL TPC-35977
...
370D
DECAL TPC-550212
...
380
CARBURETOR TPC-640180
...
400
GASKET SET TPC-510295A
...
422
OIL 2 CYCLE TPC-730227D

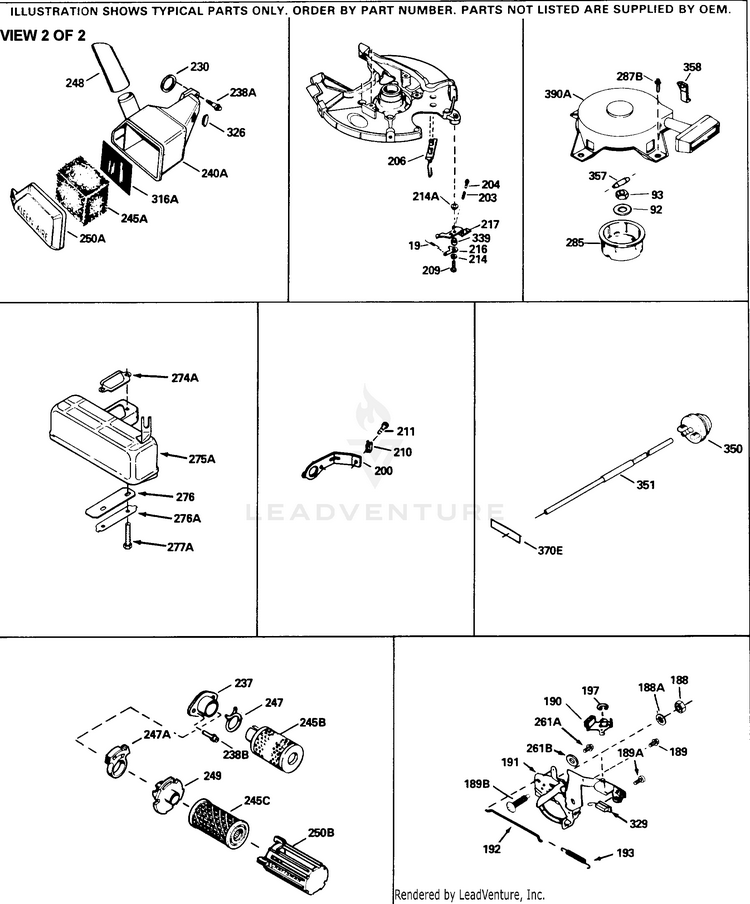

Engine Parts List #2

...
...
92
WASHER TPC-650815
...
93
NUT TPC-650390
...
189A
SCREW TPC-650911
...
189
SCREW TPC-650773
...
190
BRAKE LEVER TPC-35831
...
191
BRACKET ASSY TPC-570687
...
192
LINK TPC-34966
...
193
SPRING TPC-34965
...
197
RET RING TPC-32309
...
230
GASKET TPC-34338
...
238A
SCREW TPC-650806
...
240A
CLEANER BODY TPC-450234
...
245A
AIR CLEANER TPC-450236
...
248
CLEANER TUBE TPC-33008
...
250A
CLEANER COV TPC-33007
...
261A
SCREW TPC-650853
...
261B
WASHER TPC-650854
...
285
STARTER CUP TPC-590551A
...
316A
AIR CLEANER TPC-450235
...
326
PLUG BUTTON TPC-450237
...
329
TERMINAL TPC-610973
...
350
PRIMER TPC-570682A
...
351
PRIMER LINE TPC-570656
...
370E
DECAL TPC-36260
...
390A
STARTER TPC-590420A

RS1-590420A 590420A-RS1

...

No Parts Available for this Schematic

TEC-632342 1096 Mfg. No. 632342-TEC

...

No Parts Available for this Schematic

...
...
...
