product name

Tecumseh TC300-3013B 2-Cycle Vertical

Model: TC300-3013B

Save
 Part Not Listed?Part Not Listed?
product name

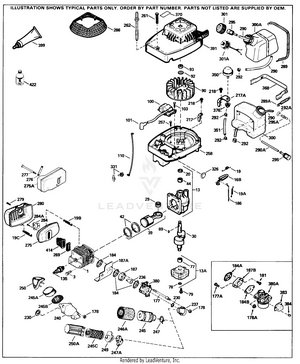

Engine Parts List

...
...
1
CYLINDER TPC-250304
...
3
SCREW TPC-650888
...
13
CRANKCASE TPC-270288A
...
13A
COVER TPC-270294
...
16B
AIR VANE TPC-490303
...
19A
SPRING TPC-570690
...
19
GOV SPRING TPC-570669
...
19B
SPRING TPC-570650
...
20
OIL SEAL TPC-510328
...
30
CRANK & COVER TPC-290611A
...
39
PISTON & ROD TPC-310293
...
42
RING SET TPC-310292
...
44
BEARING TPC-530163
...
77
CAGED BEARING TPC-530105
...
78
OIL SEAL TPC-510345
...
79
SCREW TPC-650844
...
89
KEY TPC-611054
...
90
FLYWHEEL TPC-611055
...
92
WASHER TPC-650848
...
93
NUT TPC-650849
...
100
LAMINATION TPC-611056
...
101
PLUG COVER TPC-610118
...
103
SCREW TPC-651007
...
110
GROUND WIRE TPC-611128
...
135
SPARK PLUG TPC-611100
...
177
STUD TPC-650858
...
178
NUT TPC-650580
...
184
GASKET TPC-510327B
...
186
GOV LINK TPC-490321
...
187A
BAFFLE TPC-570666A
...
187
SPACER TPC-570648A
...
217A
BRACKET TPC-570693
...
218
SCREW TPC-650847
...
230
O RING TPC-570649A
...
237
ADAPTER TPC-570689
...
245C
AIR CLEANER TPC-35066
...
247A
CLAMP TPC-35068
...
249
COLLAR TPC-35067
...
250A
CLEANER COV TPC-35065
...
257
SCREW TPC-650867
...
258
HOUSING BASE TPC-350433
...
261
SCREW TPC-650850
...
269
GASKET TPC-510336A
...
275
MUFFLER TPC-390304
...
286
SCREEN TPC-590570
...
289A
SPRING TPC-570668
...
290
FUEL LINE TPC-410246A
...
292
CLAMP TPC-410253
...
295
FUEL FILTER TPC-410263
...
300
FUEL TANK TPC-410265
...
301
FUEL CAP TPC-410238
...
326
PLUG TPC-570659
...
350
PRIMER TPC-570692A
...
351
FUEL LINE TPC-410246A
...
368
TANK STRAP TPC-410257
...
370
DECAL TPC-550236
...
376
NUT TPC-650921
...
380
CARBURETOR TPC-632533
...
391
STARTER TPC-590614A
...
399
SEALER TPC-510334
...
422
OIL 2 CYCLE TPC-730227D
...
999
MAINTENANCE KIT TPC-730278

RSTC1-590614A 590614A-RSTC1

...

No Parts Available for this Schematic

TEC-632533 632533-TEC WTA-14 Mfg. No.

...

No Parts Available for this Schematic

...
...
...
