Tecumseh TC200-2115E 2-Cycle Vertical

Model: TC200-2115E

Save
 Part Not Listed?Part Not Listed?
product name

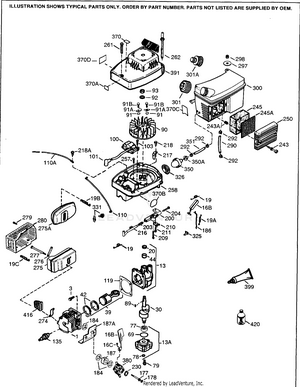

Engine Parts List

...
...
1
CYLINDER TPC-250302A
...
3
SCREW TPC-650888
...
13
CRANKCASE TPC-270288A
...
13A
COVER TPC-270299
...
16B
AIR VANE TPC-490324
...
16C
SCREW TPC-650986
...
19
GOV SPRING TPC-570713
...
20
OIL SEAL TPC-510328
...
30
CRANKSHAFT TPC-290669
...
39
PISTON & ROD-NLA TPC-310286A
...
42
RING SET TPC-310271
...
44
BEARING TPC-530163
...
69
O RING TPC-510348
...
77
BEARING TPC-530110
...
78
OIL SEAL TPC-510319
...
79
SCREW TPC-650844
...
89
KEY TPC-611054
...
90
FLYWHEEL TPC-611180
...
91
RECOIL RPR KIT TPC-590779
...
91B
RECOIL RPR KIT TPC-590779
...
91A
RECOIL RPR KIT TPC-590779
...
92
WASHER TPC-650848
...
93
NUT TPC-650849
...
100
LAMINATION TPC-611056
...
101
PLUG COVER TPC-610118
...
103
SCREW TPC-651007
...
110
GROUND WIRE TPC-611127
...
119
GASKET TPC-510349
...
135
SPARK PLUG TPC-611049
...
177
STUD TPC-650858
...
178
NUT TPC-650580
...
184
GASKET TPC-510327B
...
187A
BAFFLE TPC-570698A
...
187
SPACER TPC-570648A
...
217
ADJ LEVER TPC-570667A
...
218
SCREW TPC-650847
...
230
O RING TPC-570649A
...
243
SCREW TPC-650955
...
243A
THREAD INSERT TPC-650964
...
245A
AIR CLEANER TPC-450255
...
245
AIR CLEANER TPC-450252
...
250
COVER TPC-450253
...
257
SCREW TPC-650867
...
258
HOUSING BASE TPC-350433
...
261
SCREW TPC-650850
...
262
STUD TPC-650939
...
274
GASKET TPC-510347
...
275
MUFFLER TPC-390322
...
277
SCREW TPC-650988
...
290
FUEL LINE TPC-410246A
...
292
CLAMP TPC-410253
...
297
WASHER TPC-27261
...
298
NUT TPC-650954
...
300
TANK & CARB KIT TPC-730327
...
301
FUEL CAP TPC-410238
...
326
PLUG TPC-570659
...
350
PRIMER TPC-570704
...
350A
NUT TPC-650921
...
351
FUEL LINE TPC-410246A
...
370C
DECAL TPC-550241
...
370
DECAL TPC-550237
...
380
CARBURETOR-NLA TPC-640230
...
391
STARTER KIT TPC-730323
...
420
OIL 2 CYCLE TPC-730227D

RSTC1-590690 590690-RSTC1

...

No Parts Available for this Schematic

TEC-632980 632980-TEC HU112B Mfg. No.

...

No Parts Available for this Schematic

...
...
...
