product name

Tecumseh SBV-SBV-5903 4-Cycle Short Blocks Vertical

Model: SBV-SBV-5903

Save
 Part Not Listed?Part Not Listed?
product name

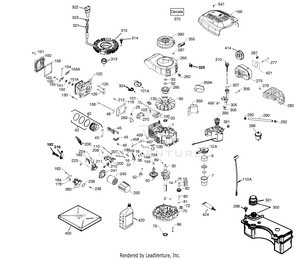

Engine Parts List

...
...
1
"Not Available TPC-0
...
2
DOWEL PIN TPC-26727
...
6
AIR CLEANER TPC-33734
...
7
BREATHER TPC-36557
...
12A
COVER & TUBE TPC-36558
...
12B
FITTING TPC-36694
...
14A
WASHER TPC-651052
...
14
WASHER TPC-651080
...
15
GOVERNOR ROD TPC-37901
...
20
OIL SEAL TPC-32600
...
30
CRANKSHAFT TPC-37904
...
38
RET RING TPC-37109
...
40
PISTON ASSY STD TPC-40044
...
40
PISTON ASSY 010 TPC-40045
...
42
RING SET STD TPC-40006
...
42
PISTON ASSY 010 TPC-40045
...
43
RET RING TPC-20381
...
45
CONN ROD TPC-37905
...
46
SCREW TPC-651115
...
48
VALVE LIFTER TPC-35616A
...
50
CAMSHAFT TPC-37906
...
52
OIL PUMP TPC-29914
...
70
MTG FLANGE TPC-37907
...
72
DRAIN PLUG TPC-37614
...
75A
OIL SEAL TPC-510337
...
75
OIL SEAL TPC-28460
...
80
GOV SHAFT TPC-37160
...
81
WASHER TPC-651080
...
82
GOV GEAR ASSY TPC-37908
...
83
GOV SPOOL TPC-35322
...
86
SCREW TPC-651096
...
104
BUSHING TPC-37480
...
119
GASKET TPC-37909
...
120
CYL HEAD TPC-37910
...
125
EXH VALVE STD TPC-37911
...
126
INT VALVE STD TPC-37912
...
130
SCREW TPC-651097
...
150
VALVE SPRING TPC-31672
...
151A
CAP & SEAL TPC-40016A
...
151
VALVE CAP TPC-31673
...
154
ROCKER ARM PIN TPC-37913
...
155A
EXH ROCKER ARM TPC-37915
...
155
INT ROCKER ARM TPC-37914
...
156
SCREW TPC-651098
...
158
PUSH ROD TPC-36629
...
159
GASKET TPC-37916
...
160
VALVE COVER TPC-37917
...
161
SCREW TPC-651104
...
162
NUT TPC-650914
...
184
Gasket TPC-26756
...
212
BUSHING TPC-37370
...
224
GASKET TPC-37921
...
239
GASKET TPC-35815
...
269
GASKET TPC-37929
...
306
O RING TPC-37937
...
400
GASKET SET TPC-37949
...
420
OIL SAE 30 TPC-730225A
...
...
...
