product name

Tecumseh SBV-SBV-504 4-Cycle Short Blocks Vertical

Model: SBV-SBV-504

Save
 Part Not Listed?Part Not Listed?
product name

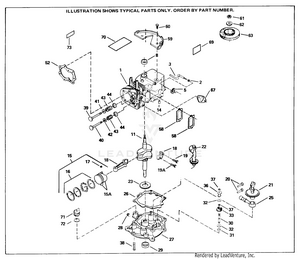

Engine Parts List

...
...
1
CYLINDER TPC-35383A
...
2
WASHER TPC-28277
...
3
GOVERNOR ROD TPC-35082
...
5
CLAMP TPC-31335
...
8
OIL SEAL TPC-35319
...
11
CRANKSHAFT TPC-35380A
...
14
PIN TPC-27652
...
15A
PISTON ASSY STD TPC-40049
...
15
PISTON ASSY 010 TPC-40012
...
15A
PISTON ASSY 010 TPC-40012
...
15A
PISTON & PIN 20 TPC-34331A
...
15
PISTON ASSY 020 TPC-34554
...
15
PISTON ASSY STD TPC-40049
...
16
RING SET 020 TPC-34334
...
16
RING SET 010 TPC-34333
...
16
PISTON ASSY STD TPC-40049
...
17
RET RING TPC-27888
...
18
CONN ROD TPC-36897A
...
19A
SCREW TPC-651063
...
19
SCREW TPC-651033A
...
20
VALVE LIFTER TPC-34034A
...
21
CAMSHAFT TPC-35381
...
25
OIL PUMP TPC-31356
...
26
GASKET TPC-37342
...
27
MTG FLANGE TPC-35382A
...
28
PIPE PLUG TPC-31927
...
29
OIL SEAL TPC-35319
...
30
GOV SHAFT TPC-30668
...
31
SPACER TPC-31707A
...
32
WASHER TPC-651080
...
33
GEAR TPC-35378
...
36
GOV SPOOL TPC-30588A
...
37
RET RING TPC-29193
...
38
SCREW TPC-650833
...
39
EXH VALVE OS TPC-27880A
...
39
EXH VALVE STD TPC-27878A
...
40
INT VALVE ST TPC-34035
...
40
INTAKE VALVE OS TPC-34036
...
41
VALVE CAP TPC-27882
...
42
INT VALVE SEAL TPC-35862
...
43
VALVE SPRING TPC-27881
...
44
VALVE CAP TPC-32581
...
52
GASKET TPC-34923A
...
58
GASKET TPC-27896A
...
67
GASKET TPC-27915A
...
69
DECAL TPC-36261
...
70
DECAL TPC-34686A
...
...
...
