product name

Tecumseh SBV-SBV-442 4-Cycle Short Blocks Vertical

Model: SBV-SBV-442

Save
 Part Not Listed?Part Not Listed?
product name

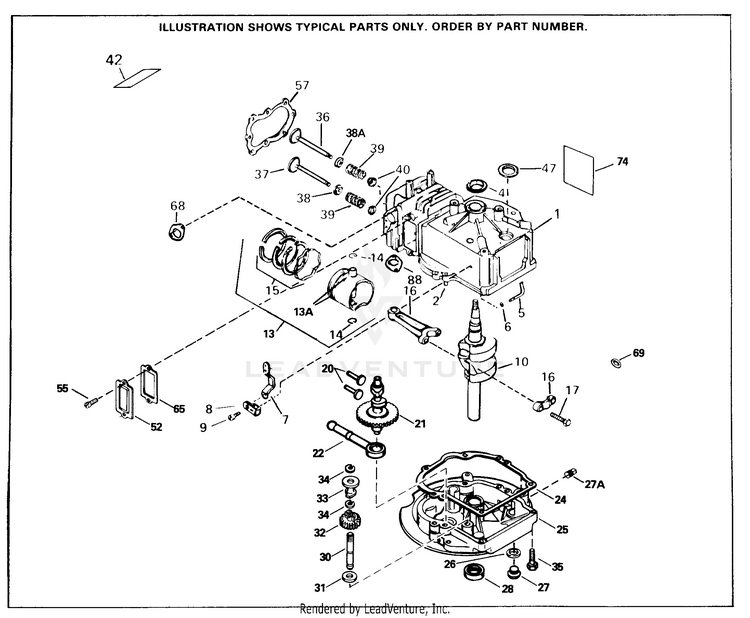

Engine Parts List

...
...
1
CYLINDER TPC-36479A
...
2
DOWEL PIN TPC-26727
...
4
OIL SEAL TPC-32600
...
5
GOVERNOR ROD TPC-30589
...
6
WASHER TPC-28277
...
7
GOV LEVER TPC-32651
...
8
CLAMP TPC-31335
...
9
SCREW TPC-651018
...
10
CRANKSHAFT TPC-34821
...
13
PISTON ASSY 010 TPC-35545A
...
13A
PISTON ASSY STD TPC-35544A
...
13A
PISTON ASSY 020 TPC-35546
...
13
PISTON ASSY 020 TPC-35546
...
13A
PISTON ASSY 010 TPC-35545A
...
13
PISTON ASSY STD TPC-35544A
...
14
RET RING TPC-20381
...
15
RING SET 010-NLA TPC-34855
...
15
RING SET STD TPC-34854
...
15
RING SET 020-NLA TPC-34856
...
16
CONN ROD TPC-30963B
...
17
SCREW TPC-32610A
...
20
VALVE LIFTER TPC-27241
...
21
CAMSHAFT TPC-35992
...
22
OIL PUMP TPC-29914
...
24
GASKET TPC-37609
...
25
MTG FLANGE TPC-37644
...
26
GASKET TPC-28833
...
27
DRAIN PLUG TPC-36083
...
27A
PIPE PLUG TPC-28534
...
28
OIL SEAL TPC-26208
...
30
GOV SHAFT TPC-30574A
...
31
WASHER TPC-651080
...
32
GEAR TPC-30591
...
33
GOV SPOOL TPC-30588A
...
34
RET RING TPC-29193
...
35
SCREW TPC-650488
...
36
INT VALVE ST TPC-29314C
...
36
EX/INT VALVE OS TPC-29315C
...
37
EX/INT VALVE OS TPC-29315C
...
37
EXH VALVE STD TPC-29313C
...
38A
VALVE CAP TPC-31671
...
38
VALVE CAP TPC-31671
...
39
VALVE SPRING TPC-31672
...
40
VALVE CAP TPC-31673
...
42
DECAL TPC-34028
...
47
GASKET TPC-33735
...
57
GASKET TPC-33015A
...
65
GASKET TPC-27234A
...
68
GASKET TPC-32649A
...
68
GASKET TPC-34690A
...
69
WASHER TPC-650841
...
...
...
