product name

Tecumseh SBV-SBV-251 4-Cycle Short Blocks Vertical

Model: SBV-SBV-251

Save
 Part Not Listed?Part Not Listed?
product name

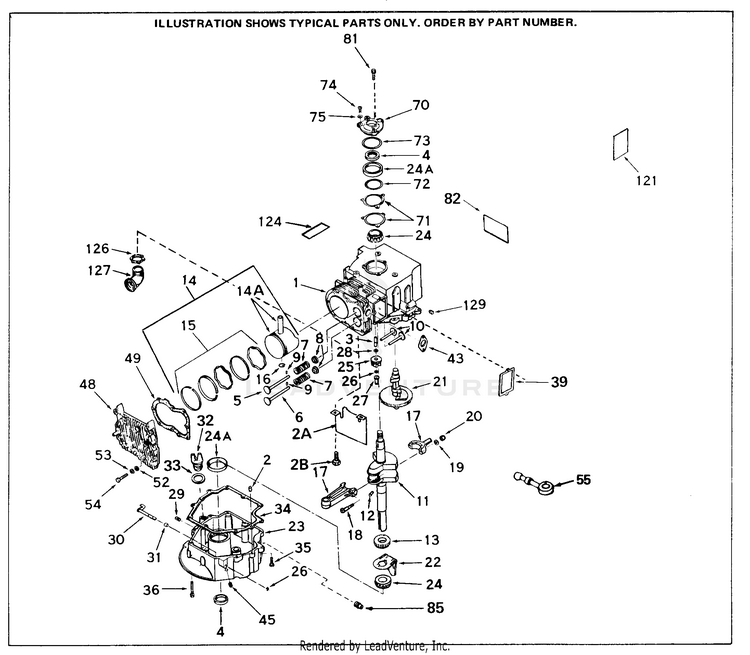

Engine Parts List

...
...
1
CYLINDER TPC-33089
...
2B
SCREW TPC-650128
...
2
PIN TPC-27652
...
2A
BAFFLE TPC-33359
...
3
GOV SHAFT TPC-31930
...
4
OIL SEAL TPC-31950
...
5
INT VALVE OS-NLA TPC-31941
...
5
INT VALVE ST TPC-31940
...
6
EXH VALVE OS TPC-31943
...
6
EXH VALVE STD TPC-31942
...
7
VALVE SPRING TPC-31944
...
8
VALVE CAP TPC-31945
...
8
VALVE CAP TPC-31946
...
9
CAP PIN TPC-20810
...
10
VALVE LIFTER TPC-31939
...
11
CRANKSHAFT TPC-33409A
...
12
GROOVE PIN TPC-29783
...
13
GEAR TPC-33091
...
14
PISTON ASSY 010 TPC-34509
...
14
PISTON ASSY 020 TPC-34510
...
14A
PISTON & PIN 40 TPC-32620B
...
14A
PISTON & PIN 30 TPC-32619B
...
14A
PISTON & PIN ST TPC-32001C
...
14A
PISTON & PIN 10 TPC-32002B
...
14A
PISTON & PIN 20 TPC-32003B
...
14
PISTON ASSY STD-NLA TPC-34508
...
14
PISTON ASSY 040 TPC-34523
...
15
RING SET STD N/A TPC-32004
...
15
RING SET 030 TPC-32623
...
15
RING SET 010 TPC-32005
...
15
RING SET 040 TPC-32624
...
15
RING SET TPC-32321
...
15
RING SET 020 TPC-32006
...
16
RET RING TPC-31919
...
17
CONN ROD TPC-33093A
...
17
CONN ROD TPC-34383
...
17
CONN ROD TPC-34384
...
18
SCREW TPC-32077
...
19
WASHER TPC-26073
...
20
NUT TPC-28264
...
21
CAMSHAFT TPC-32150
...
22
OIL DIPPER TPC-33092
...
23
MTG FLANGE TPC-33094
...
24
BEARING TPC-31932
...
24A
BEARING CUP TPC-31928
...
25
GEAR TPC-31947
...
26
RET RING TPC-29193
...
27
GOV SPOOL TPC-31948A
...
28
WASHER TPC-651080
...
29
PIPE PLUG TPC-31927
...
30
GOVERNOR ROD--NLA TPC-32425
...
31
SPACER TPC-32426
...
32
FILLER PLUG TPC-27625
...
33
GASKET TPC-29673
...
34
GASKET TPC-31956B
...
35
SCREW TPC-650451
...
36
SCREW TPC-650588
...
39
GASKET TPC-31958A
...
43
GASKET TPC-31960A
...
45
PIPE PLUG TPC-28534
...
48
CYL HEAD TPC-33034
...
49
GASKET TPC-32000B
...
52
WASHER TPC-650691
...
53
WASHER KIT TPC-730324
...
54
SCREW TPC-650711
...
70
CYL COVER TPC-32677
...
71
GASKET TPC-31971
...
71
GASKET TPC-31972
...
72
SPACER TPC-32031
...
73
O RING TPC-32599
...
74
Screw, 5/16-18 x 7/8" TPC-792028
...
75
WASHER TPC-650679
...
81
SCREW TPC-650669
...
82
DECAL TPC-34028
...
85
PIPE PLUG TPC-33726
...
121
DECAL TPC-36261
...
124
DECAL--Discontinued TPC-550223
...
126
NUT TPC-650590
...
129
PIPE PLUG TPC-28534
...
...
...
