product name

Tecumseh SBV-SBV-2320A 4-Cycle Short Blocks Vertical

Model: SBV-SBV-2320A

Save
 Part Not Listed?Part Not Listed?
product name

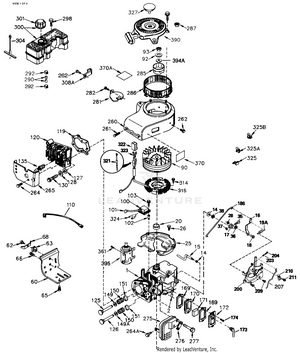

Engine Parts List #1

...
...
1
CYLINDER TPC-35943A
...
2
PIN TPC-27652
...
14
WASHER TPC-28277
...
15
GOVERNOR ROD TPC-35324
...
16
GOV LEVER TPC-35520
...
17
CLAMP TPC-29916
...
18
SCREW TPC-651018
...
19A
EXT SPRING TPC-35945
...
20
OIL SEAL TPC-35319
...
28
NUT TPC-30322
...
35
SCREW TPC-29826
...
36
WASHER TPC-29918
...
37
NUT TPC-29216
...
38
RET RING TPC-29642
...
119
GASKET TPC-35946
...
169
GASKET TPC-27896A
...
170
BREATHER TPC-28423
...
171
ELEMENT TPC-28424
...
172
VALVE COVER TPC-28425
...
173
TUBE TPC-35350
...
174
SCREW TPC-650128
...
370
DECAL TPC-36261

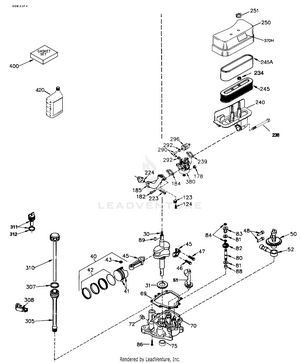

Engine Parts List #2

...
...
30
CRANKSHAFT TPC-35336B
...
31
GEAR TPC-35327
...
40
PISTON ASSY 010 TPC-35777A
...
40
PISTON ASSY STD TPC-35776B
...
40
PISTON ASSY 020 TPC-34862A
...
41
PISTON ASSY 010 TPC-35777A
...
41
PISTON ASSY 020 TPC-34862A
...
41
PISTON ASSY STD TPC-35776B
...
42
RING SET 020 TPC-35781
...
42
RING SET STD TPC-35779
...
42
RING SET 010 TPC-35780
...
43
RET RING TPC-35772
...
45
CONN ROD TPC-36898A
...
46
SCREW TPC-651063
...
47
SCREW TPC-651033A
...
48
VALVE LIFTER TPC-35313A
...
50
CAMSHAFT TPC-35939
...
51
WEIGHT TPC-35315A
...
52
OIL PUMP TPC-31356
...
69
GASKET TPC-35317
...
70
MTG FLANGE TPC-36987
...
72
PIPE PLUG TPC-31927
...
72
PIPE PLUG TPC-28534
...
75
OIL SEAL TPC-35319
...
80
GOV SHAFT TPC-35712
...
81
WASHER TPC-651080
...
82
GEAR TPC-35321
...
83
GOV SPOOL TPC-35322
...
84
RET RING TPC-29193
...
86
SCREW TPC-650833
...
88
SPACER TPC-31707A
...
224
GASKET TPC-35958

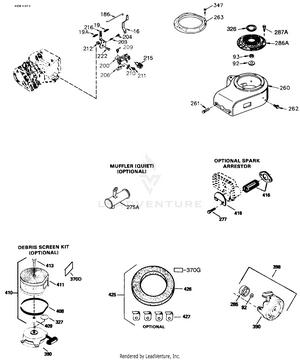

Engine Parts List #4

...
...
16
GOV LEVER TPC-35520
...
19A
EXT SPRING TPC-35945
...
...
...
