Tecumseh SBV-5391 4-Cycle Short Blocks Vertical

Model: SBV-5391

Save
 Part Not Listed?Part Not Listed?
product name

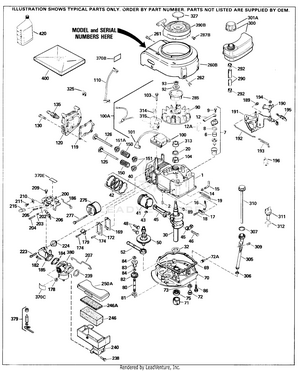

Engine Parts List #1

...
...
1
CYLINDER TPC-34429A
...
2
DOWEL PIN TPC-26727
...
8
GASKET TPC-33735
...
14
WASHER TPC-28277
...
15
GOVERNOR ROD TPC-30589
...
16
GOV LEVER TPC-32651
...
17
CLAMP TPC-31335
...
18
SCREW TPC-651018
...
20
OIL SEAL TPC-32600
...
30
CRANKSHAFT TPC-37333
...
40
PISTON ASSY STD TPC-35544A
...
41
PISTON & PIN ST TPC-35541
...
42
PISTON ASSY STD TPC-35544A
...
43
RET RING TPC-20381
...
45
CONN ROD TPC-30963B
...
46
SCREW TPC-32610A
...
48
VALVE LIFTER TPC-27241
...
50
CAMSHAFT TPC-35992
...
52
OIL PUMP TPC-29914
...
69
GASKET TPC-37609
...
70
MTG FLANGE TPC-37644
...
72A
PIPE PLUG TPC-28534
...
72
DRAIN PLUG TPC-36083
...
75
OIL SEAL TPC-26208
...
80
GOV SHAFT TPC-30574A
...
81
WASHER TPC-651080
...
82
GEAR TPC-30591
...
83
GOV SPOOL TPC-30588A
...
86
SCREW TPC-650488
...
119
GASKET TPC-33015A
...
125
EXH VALVE STD TPC-29313C
...
126
INT VALVE ST TPC-29314C
...
150
VALVE SPRING TPC-31672
...
151A
CAP & SEAL TPC-35390
...
151
VALVE CAP TPC-31673
...
169
GASKET TPC-27234A
...
224
GASKET TPC-34690A
...
224
GASKET TPC-32649A

Engine Parts List #2

...
...
189A
WASHER TPC-650841
...
274
GASKET TPC-30081A

Engine Parts List #3

...
...
189A
WASHER TPC-650841
...
274
GASKET TPC-30081A

Engine Parts List #4

...
...
69
GASKET TPC-37609
...
...
...
